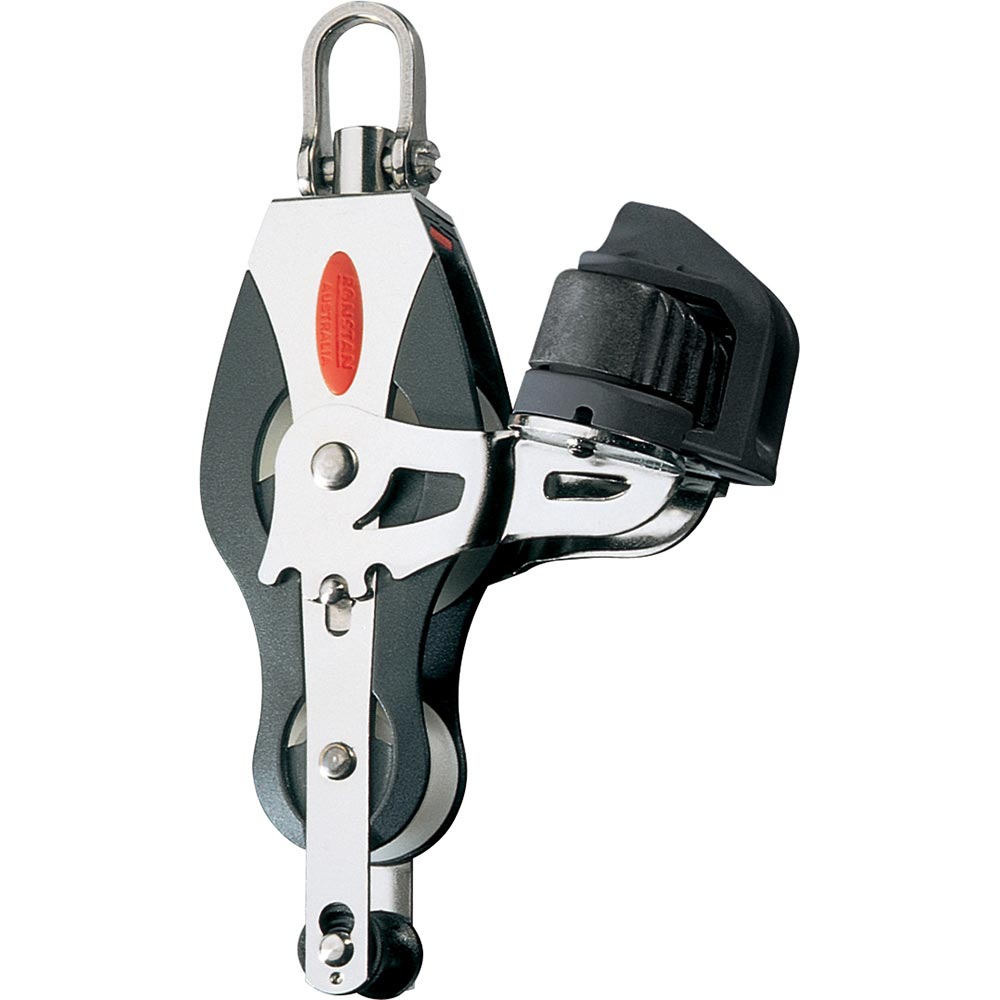

Ronstan Series 40 All Purpose Block - Fiddle - Becket - Cleat

Route sheets, halyards or control lines through the Ronstan Series 40 All Purpose fiddle block with becket and cleat. For cruising and racing setups, its self-lubricating sheaves handle both moving loads and high static loads, while adjustable fittings let you set the block and cleat positions.

Key features

• Self-lubricating acetal sheaves run on polished stainless steel races for low-maintenance operation.
• The Captive Lock™ head can swivel freely or lock in either of two planes to suit the line arrangement.
• A cleat arm adjusts without tools and secures at the chosen angle.
• The removable, snap-fit becket pin lets you splice the line before installation.
• A slotted shackle pin helps prevent lines from fouling.
• UV-stabilised sheaves and impact- and UV-resistant cheeks support outdoor service.

Specifications

• Brand: Ronstan
• Series: 40 All Purpose
• Configuration: Fiddle block with becket and cleat
• Sheave material: UV-stabilised acetal polymer
• Cheek material: Impact- and UV-resistant fibre-reinforced nylon
• Bearing race material: Grade 316 stainless steel
• Load strap and head fitting material: Grade 316 stainless steel
• Replacement becket pin: RF41010
• Replacement shackle: RF150

Good to know

Listed uses include mainsheets, halyards, vangs and spinnaker control lines on off-the-beach catamarans, one-design classes and sportsboats up to 8 m (26 ft). Other stated applications include fine-tune mainsheet tackles, cunninghams, backstays and control-line purchase systems.
