• Ronstan Series 30 Ball Bearing Block - Single - Loop Top
1 1

Ronstan

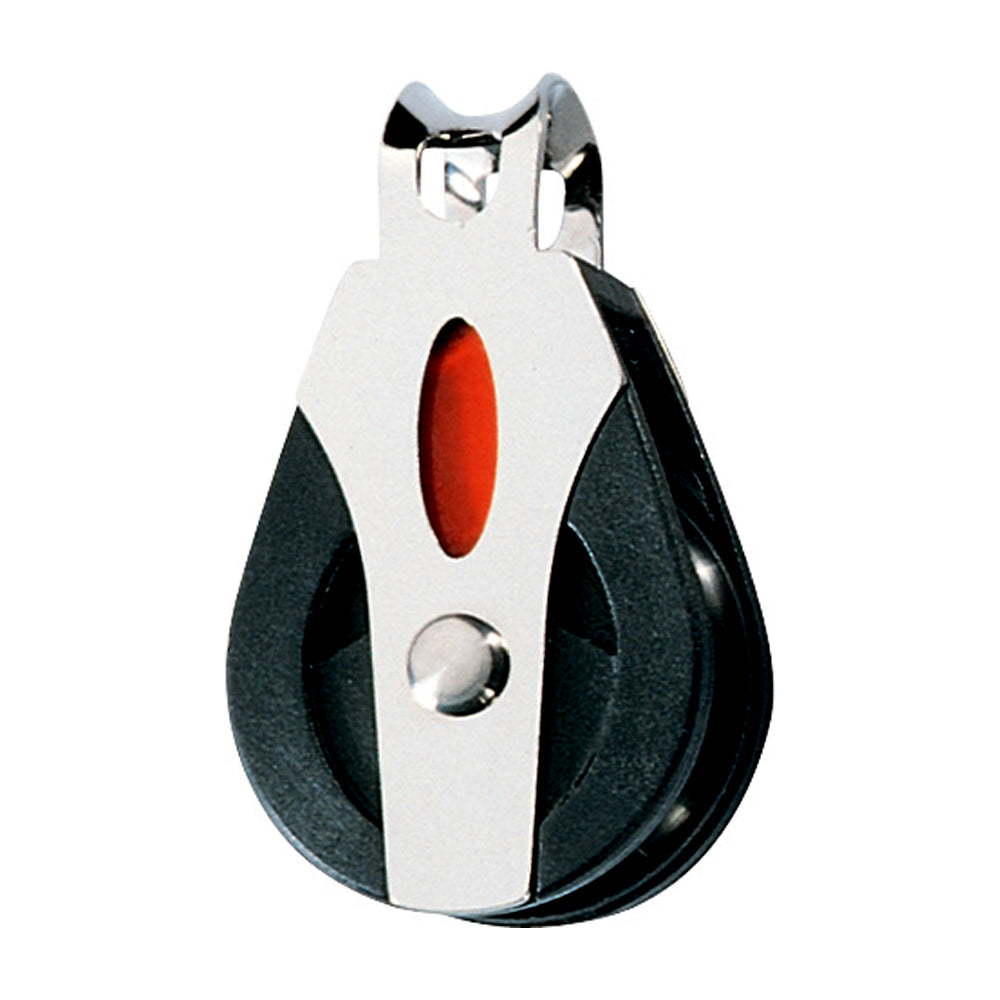

Ronstan Series 30 Ball Bearing Block - Single - Loop Top

Ronstan Series 30 Ball Bearing Block - Single - Loop Top

OM-RONSTAN-SERIES30BALL-RF30101

$26.47
$26.47
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Route dinghy and catamaran primary leads or larger-yacht control lines through the Ronstan Series 30 single loop-top block. Its two-stage ball bearing system reduces friction across the working load range, while the lightweight construction keeps the block at 28 grams.

Key features

  • Two-stage ball bearings help lines run with low friction throughout the working load range.
  • A shackle can be fitted in either of two planes to align the block with the line.
  • UV-stabilized sheave and cheek materials provide resistance to ultraviolet exposure.
  • Impact-modified, fiber-reinforced nylon cheeks support a lightweight assembly.
  • Grade 316 stainless steel forms the load straps and head fittings.

Specifications

  • Series: 30
  • Configuration: Single block, loop top
  • Sheave diameter: 30 mm (1-3/16 inches)
  • Maximum rope diameter: 8 mm (5/16 inch)
  • Maximum working load: 300 kg (660 lbs.)
  • Breaking load: 750 kg (1,650 lbs.)
  • Weight: 28 g (1.0 oz.)
  • Sheave material: UV-stabilized acetal
  • Ball bearing material: Acetal
  • Cheek material: Impact-modified, fiber-reinforced, UV-stabilized nylon
  • Load strap and head fitting material: Grade 316 stainless steel

Specifications

BrandRonstan
Manufacturer part #RF30101
UPC9316800258260
Boxed dimensions4 x 2 x 1 in
Shipping weight3.0 lb
Country of originINDONESIA
