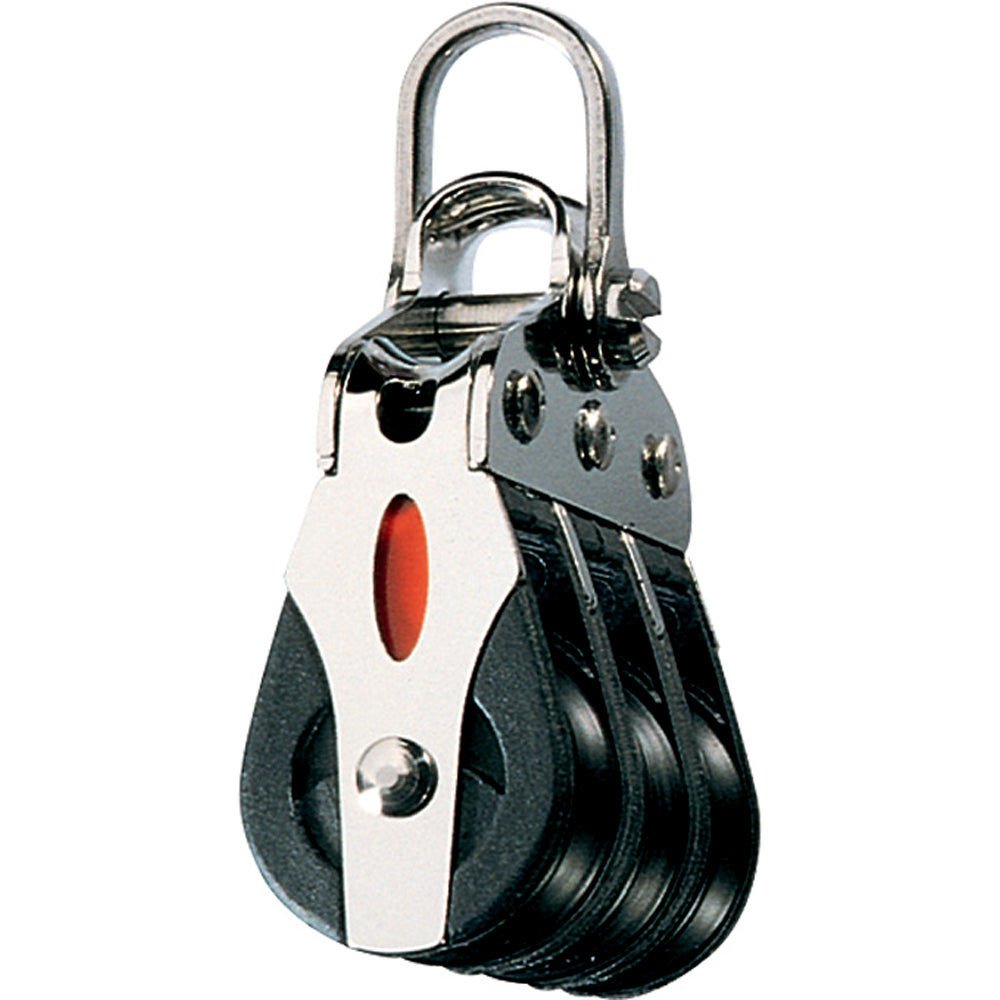

• Ronstan Series 20 ball Bearing Block - Triple - 2-Axis Shackle head
1 1

Ronstan

Ronstan Series 20 ball Bearing Block - Triple - 2-Axis Shackle head

Ronstan Series 20 ball Bearing Block - Triple - 2-Axis Shackle head

55141

$45.76 USD
$53.83 USD $45.76 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 4 left
Authorized Ronstan Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
Series 20 Ball Bearing Block - Triple - 2-Axis Shackle Head

Features:
  • Low friction
  • High static and dynamic load capacity
  • Lightweight
  • Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
  • Two-Way head can be fixed at 0° or 90°


Applications:
  • Dinghy control lines
  • Dinghy vangs
  • Cunninghams
  • Traveller controls


Materials:
  • Stainless steel ball bearings
  • UV Stabilized Acetal sheave
  • Grade 316 stainless steel load strap and head fitting
  • Impact and UV resistant, fiber reinforced Nylon cheeks


Specifications:
Sheave Ø: 20mm(3/4")
Max. Rope Ø: 6mm(1/4")
PinØ: 4mm(5/32")
M.W.L.: 400kg(880lbs)
B. L.: 850kg(1,870lbs)
Weight: 62g(2.2oz)

Specifications

Manufacturer part number, dimensions and technical specs are listed in the product description above. Contact us if you need a spec sheet for this item.
