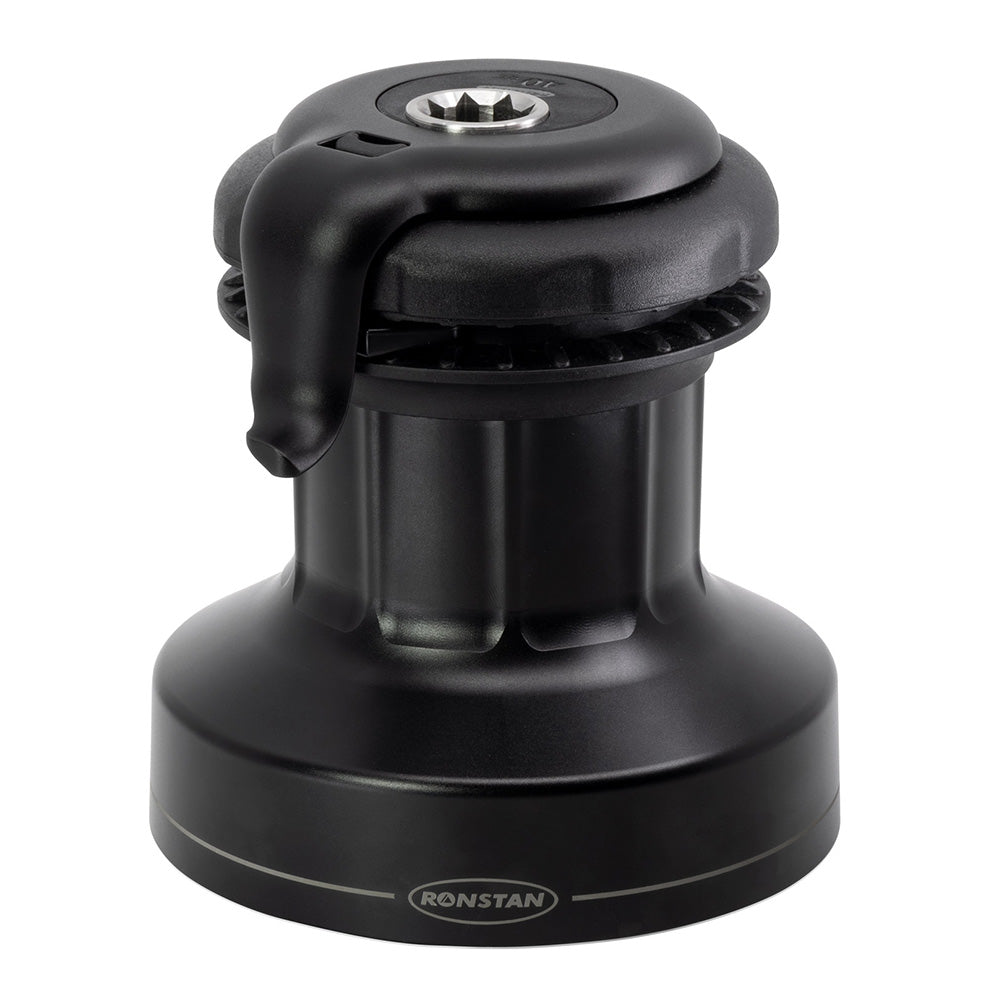

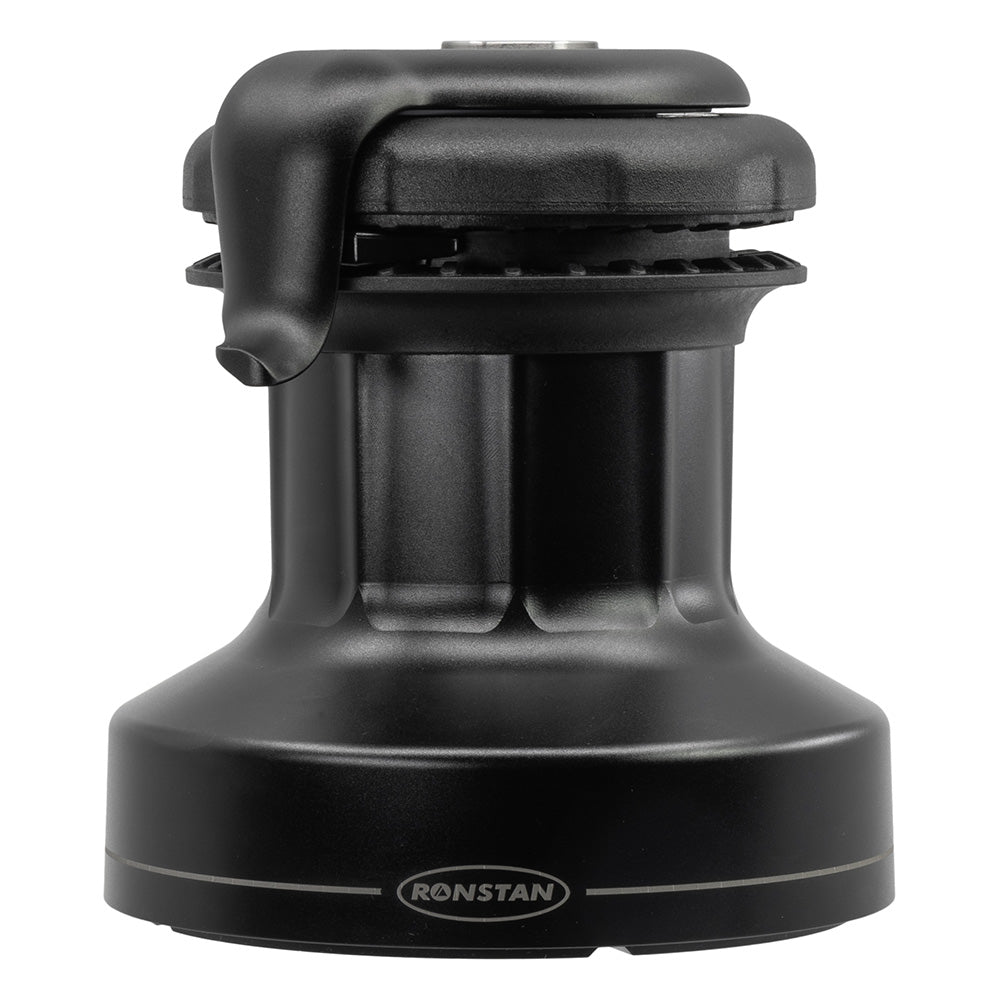

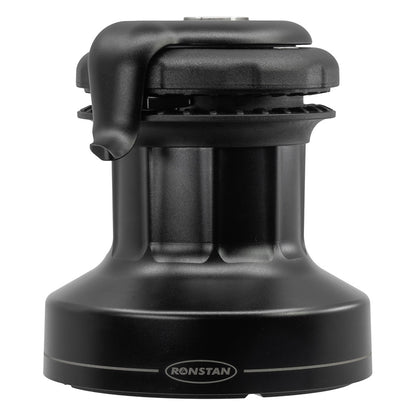

Ronstan 40QT Orbit Winch w/Quick Trim

Keep the handle in place while easing a sailing line with the Ronstan 40QT Orbit Winch. Its QuickTrim self-tailer lets sailors release tension without lifting the rope out of the jaws, while the ribbed drum helps maintain control.

Key features

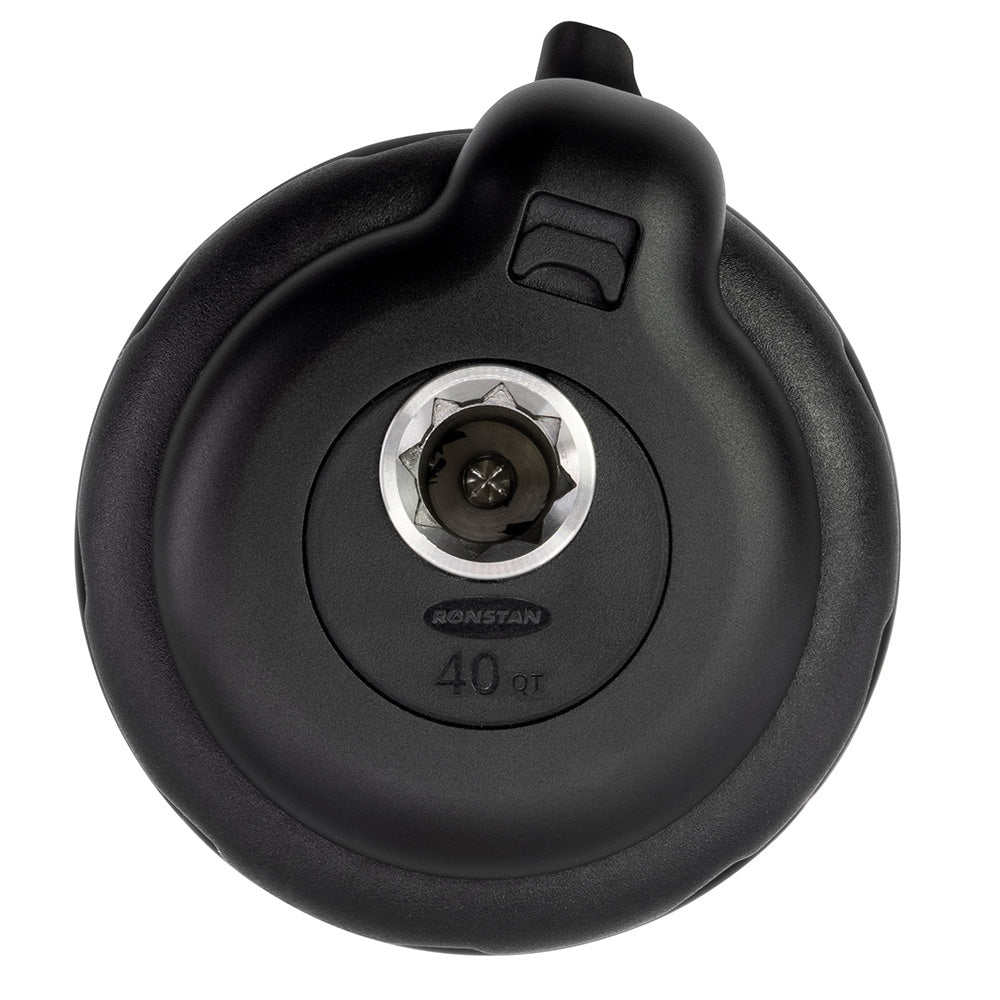

• A slight anticlockwise turn of the QuickTrim cover lets the self-tailer rotate beneath it so you can ease the rope.
• Releasing the cover returns the self-tailer to its locked operating position.
• Power Ribs reduce the number of wraps needed for grip and ease the load on the self-tailer.
• The drum combines a smooth surface that limits rope wear with ribs that encourage upward rope movement to help avoid riding turns.
• Tool-free dismantling and reassembly make internal servicing more straightforward.
• The self-tailing arm offers eight orientations, with an audible click confirming engagement during reassembly.

Specifications

• Brand: Ronstan
• Model: 40QT Orbit
• Self-tailer: QuickTrim
• Drum: Lightweight machined aluminum
• Drum grip: Power Ribs

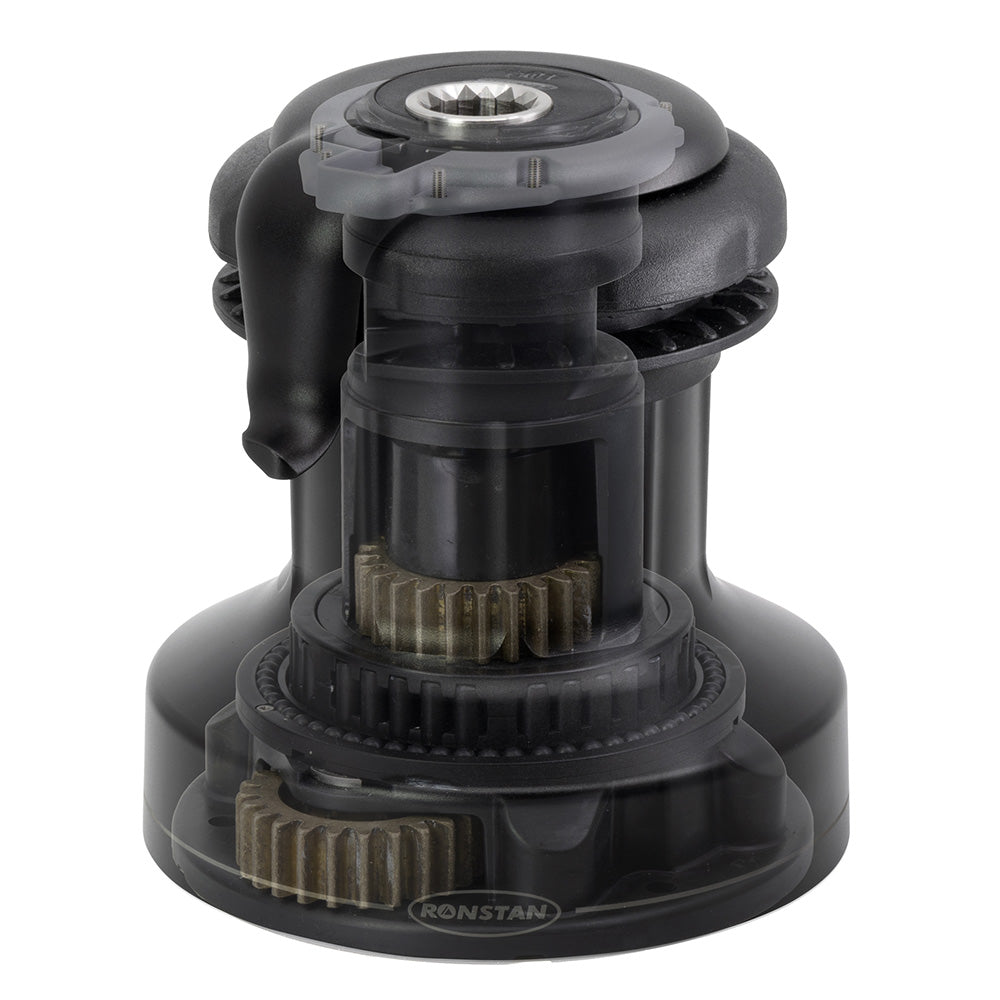

• Gearing configuration: Andersen
• Self-tailing jaws: Spring-loaded
• Line size: 6-10mm
• Self-tailing arm positions: 8
• Arm position increments: 45 degrees
