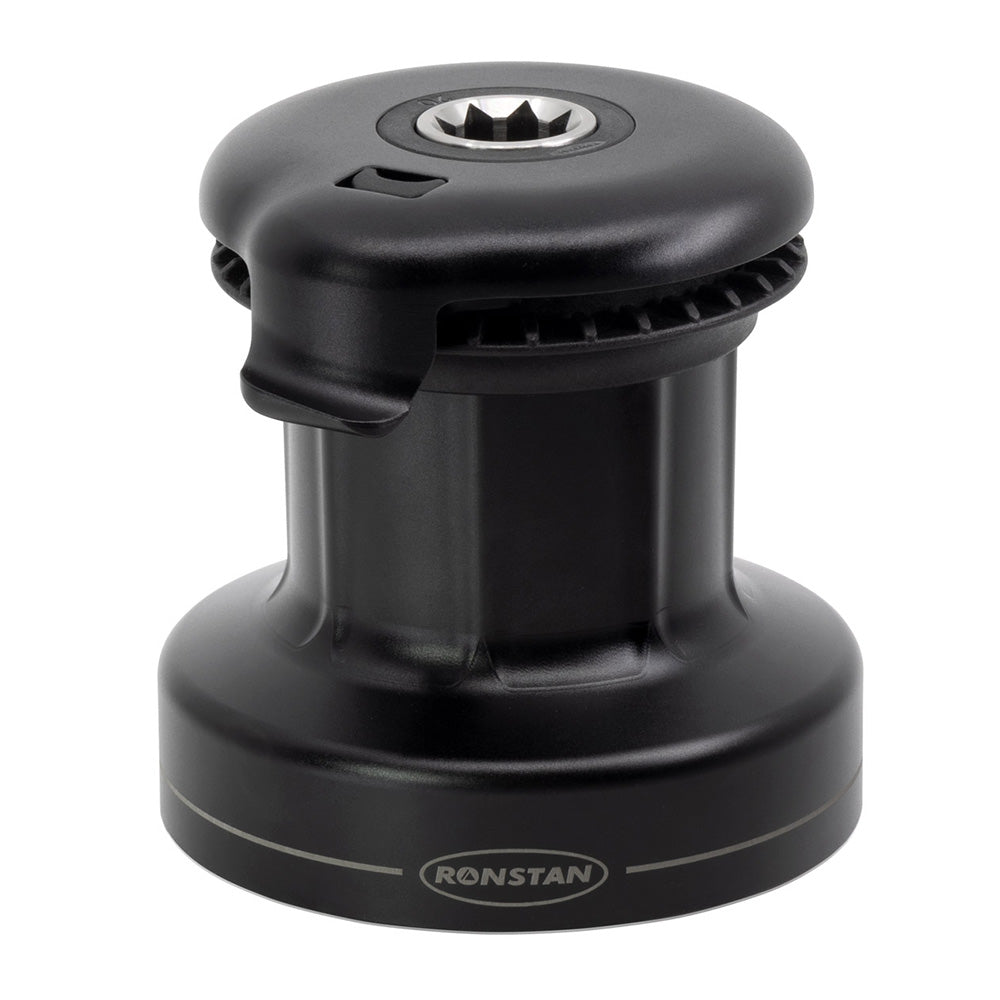

Ronstan 20ST Orbit Winch 1 Speed

Ronstan 20ST Orbit Winch 1 Speed

OM-RONSTAN-20STORBITWINCH-RA6201

$665.10
$739.00 $665.10
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Managing sailing lines involves both building tension and easing it with control. The Ronstan 20ST Orbit Winch combines single-speed gearing with a self-tailer and a ribbed aluminum drum to help sailors handle both jobs.

Key features

  • Power Ribs grip the rope with fewer drum wraps and reduce the load carried by the self-tailer.
  • The smooth drum surface helps limit rope wear while allowing controlled easing under load.
  • Ribs guide the rope upward on the drum to help prevent riding turns.
  • Tool-free disassembly and reassembly simplify access for servicing.
  • Eight self-tailing arm positions let you adjust its orientation in 45-degree steps.
  • Spring-loaded self-tailing jaws accommodate lines from 6 to 10mm.

Specifications

  • Brand: Ronstan
  • Model: 20ST Orbit
  • Speeds: 1
  • Weight: 1.7kg
  • Maximum pulling load: 550kg
  • Gear ratio: 2.7:1
  • Power ratio: 18.3:1
  • Base diameter: 120mm
  • Drum diameter: 75mm
  • Height: 124mm
  • Line entry height: 42mm
  • Line size: 6-10mm

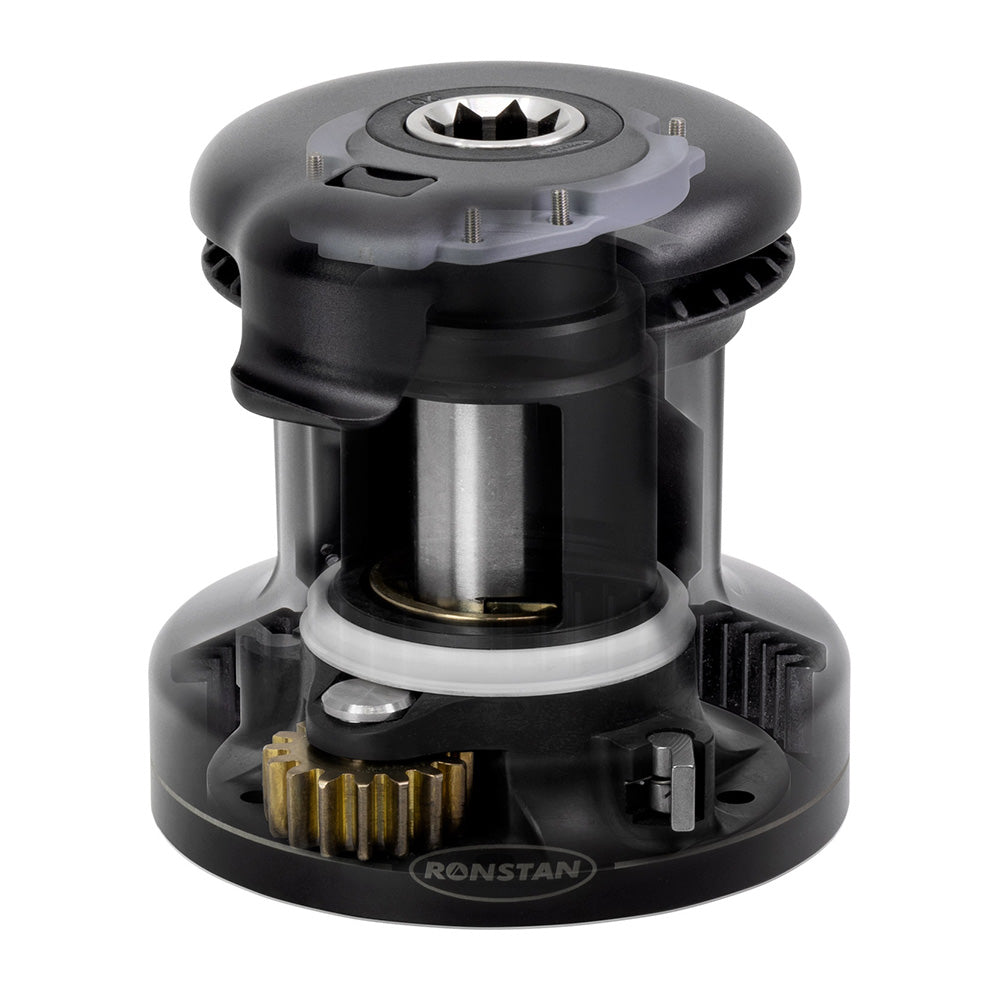

  • Drum and center stem: Hard anodized aluminum
  • Self-tailing arm: Aluminum
  • Shaft and pawls: Grade 316 stainless steel
  • Axle pins: Grade 2205 stainless steel
  • Gears: Aluminum bronze
  • Self-tailer: Glass-filled nylon
  • Bearings: Self-lubricating acetal

Specifications

BrandRonstan
Manufacturer part #RA6201
UPC9316800602148
Boxed dimensions6 x 5 x 5 in
Shipping weight2.0 lb
Country of originDENMARK
