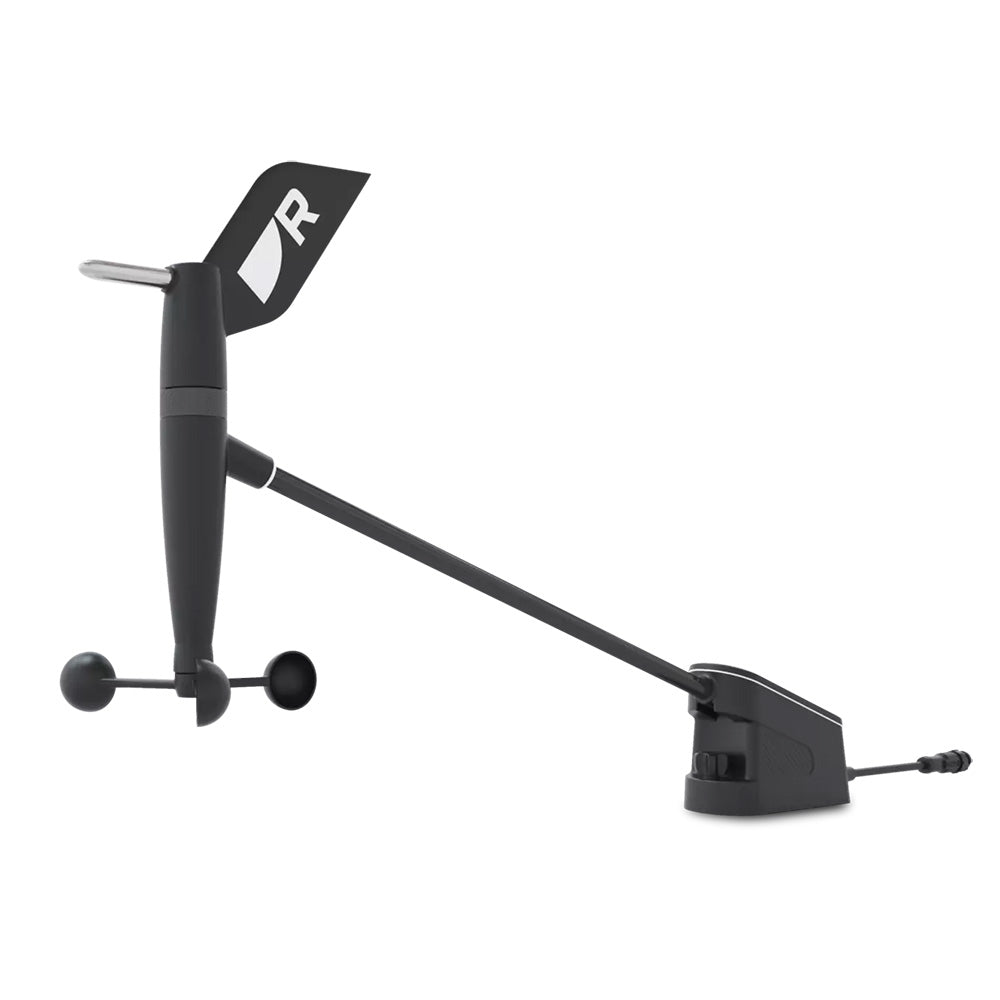

Raymarine RSW Wired - Smart Performance Wind Transducer - Short Arm w/30M Cable

The Raymarine RSW Wired Smart Performance Wind Transducer is a short-arm masthead wind sensor for sailing instrument systems. It provides calibrated wind speed and direction data and is supplied with a 30 m Smart Wind mast cable, wired gateway and SeaTalk NG to DeviceNet adaptor cable.

• Model: RSW Wired Smart Performance Wind Transducer, short arm
• Data: Calibrated wind speed and direction
• Cable length: 30 m mast cable, 98.43 ft
• Wind transducer length with cable: 657.762 mm, 25.90 in
• Wind transducer length without cable: 540.712 mm, 21.29 in
• Wind transducer width: 46.96 mm, 1.85 in
• Wind transducer height: 305.86 mm, 12.04 in
• Wired gateway dimensions: 155.61 mm L x 47.38 mm W x 30.61 mm H, 6.13 in x 1.88 in x 1.21 in
• Nominal supply voltage: 12 V dc via SeaTalk NG
• Operating voltage range: 9 V to 16 V dc
• Power consumption: Less than 100 mW
• Fuse requirement: SeaTalk NG backbone protected by a 5 A fuse
• NMEA 2000 LEN: 1, based on nominal 9 V rating
• Operating temperature: -25°C to +55°C, -13°F to +131°F
• Storage temperature: -30°C to +70°C, -22°F to +158°F
• Relative humidity: Masthead 100%; below deck up to 93% at 40°C
• Waterproof rating: Wind transducer IPx6/IPx7; wired gateway IPx3
• Wind rating: 115 mph, 185 kph
• Vibration: EN 60945:2002 exposed
• Included: Wind transducer, smart wind-wired gateway, 30 m mast cable reel, 120 mm SeaTalk NG to DeviceNet adaptor cable, mounting screws, 40 mm heat shrink tube, ring crimp terminal and documentation
