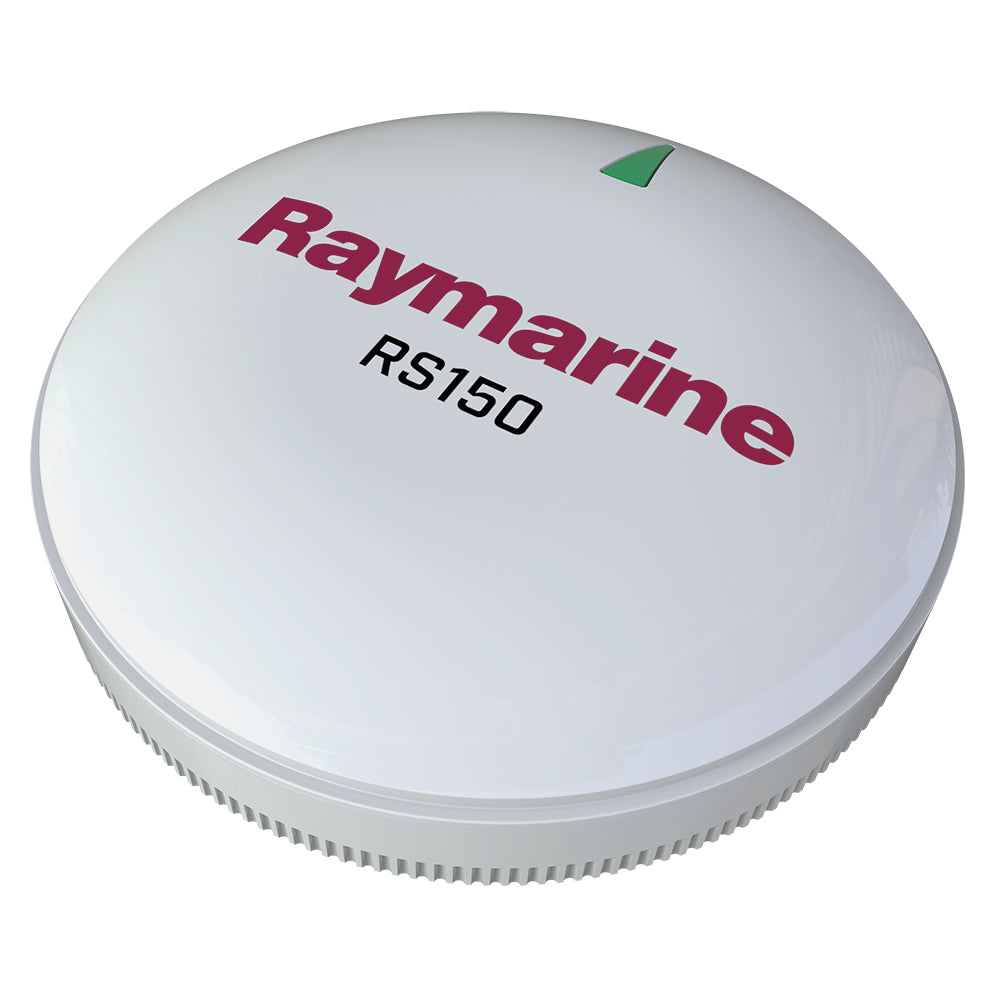

Raymarine RS150 GPS Sensor

The Raymarine RS150 is a remotely mounted GPS and GNSS sensor for Raymarine navigation systems. It provides 10Hz position updates, supports GPS and GLONASS, and connects through SeaTalkng or NMEA 2000 with a DeviceNet adapter cable.

• Receiver: 72-channel GPS and GLONASS GNSS receiver
• Position updates: 10Hz
• Nominal supply voltage: 12V D.C., powered by N2K bus
• Operating voltage range: 8 - 32V DC
• Power consumption: 30 mA max (NMEA LEN = 1)
• Protocols: SeaTalkng and NMEA 2000 certified via DeviceNet adaptor
• Differential support: WAAS, EGNOS, MSAS, and GAGAN
• Sensitivity: Acquisition down to -163dBm
• Position accuracy: <15M, or <5M with SDGPS, both at 95%
• Speed accuracy: <0.3kt at 95%
• Cold start first fix: <2 minutes, typically <45 seconds
• Hot start first fix: <8 seconds with 72 hour hold up battery
• Operating temperature: -13ºF to 131ºF (-25ºC to +55ºC)
• Relative humidity: Max 93%
• Waterproof rating: IPx6/7
• Mounting: Low profile surface mounting or optional pole mounting
• Geodetic datum: WGS84
