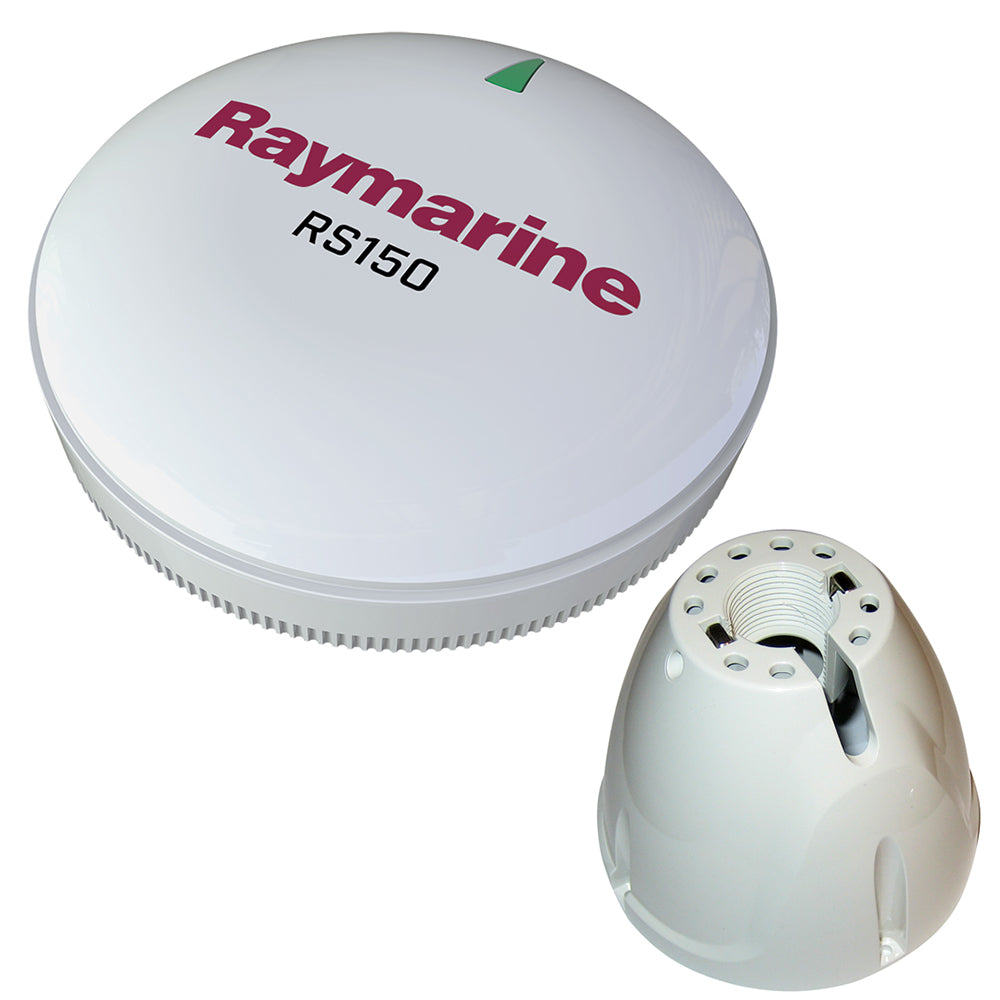

Raymarine RayStar 150 GPS Sensor w/Pole Mount

The Raymarine RayStar 150 package pairs the RS150 GPS sensor with a pole mount for Raymarine navigation systems. The sensor provides 72-channel GPS/GNSS reception, 10Hz position updates, and compatibility with SeaTalkng and NMEA 2000 networks through the specified adapter.

• Brand: Raymarine
• Sensor: RayStar RS150 GPS sensor
• Included mount: Pole mount for RS150 GPS antenna
• Receiver: 72-channel GPS/GNSS receiver
• Update rate: 10Hz position updates
• Satellite systems: GPS and GLONASS
• Differential support: WAAS, EGNOS, MSAS, and GAGAN
• Nominal supply voltage: 12V DC, powered by N2K bus
• Operating voltage range: 8 to 32V DC
• Power consumption: 30 mA max, NMEA LEN = 1
• Operating temperature: -13°F to 131°F (-25°C to +55°C)
• Relative humidity: 93% max
• Waterproof rating: IPx6/7
• Protocols: SeaTalkng and NMEA 2000 certified via DeviceNet adaptor
• Sensitivity: Acquisition down to -163 dBm
• Position accuracy: <15 m, 95%
• SDGPS position accuracy: <5 m, 95%
• Speed accuracy: <0.3 kt, 95%
• Cold start time to first fix: <2 minutes, typically <45 seconds
• Hot start time to first fix: <8 seconds
• Hold-up battery: 72-hour hold-up battery for hot start
• Geodetic datum: WGS84
• Mounting: Designed for low-profile surface mounting or optional pole mounting
