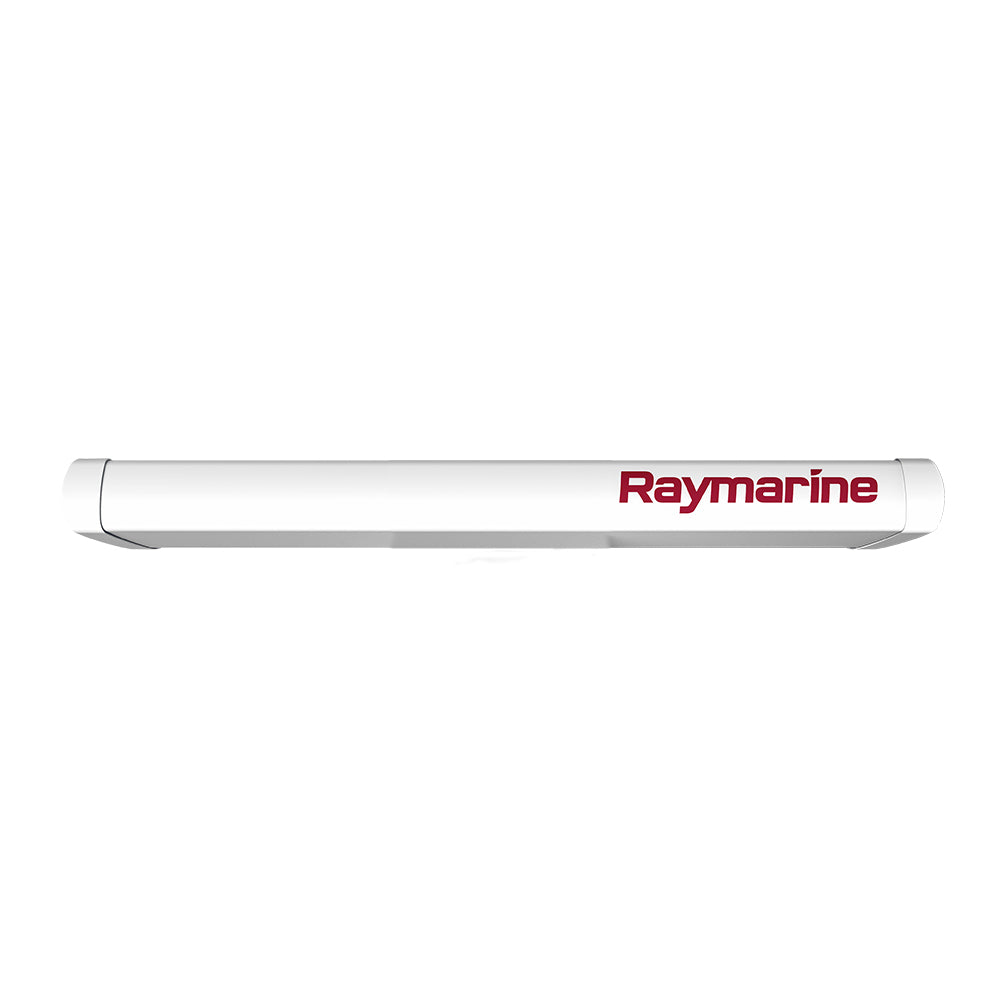

Raymarine Magnum 4' Array

The Raymarine Magnum 4' Array is the four-foot antenna array option for Magnum open-array radar systems. It is intended for boaters using Raymarine multifunction displays who want long-range radar capability, target tracking, and detailed target separation from the Magnum platform.

• Brand: Raymarine
• Product: Magnum 4' Array
• Array size: 4 ft
• Radar platform: Magnum high-performance open-array radar
• Power options in Magnum line: 4kW or 12kW
• Maximum stated range: up to 72 nm for 4kW models and up to 96 nm for 12kW models
• Display support: Raymarine Axiom and Axiom Pro MFDs running LightHouse 3
• Legacy compatibility listed: LightHouse 2-based a, c, e, eS and gS-Series MFDs; C-Series Widescreen and E-Series Widescreen MFDs; E-Series Classic and G-Series multifunction displays
• Feature note: Some Magnum features are not available on all legacy MFDs
• Bird Mode: designed to identify birds with clarity up to 10 nm
• Radar imaging: Raymarine beam sharpening technology provides better than 1-degree bearing resolution
• Tracking: supports fully automatic MARPA target acquisition and tracking
• Heading input: uses Raymarine Evolution 9-axis heading sensor technology for target plots
• True Trails: shows target history behind moving contacts
• Real Time Heading updates: available when connected with Axiom and LightHouse 3
