Raymarine EV-400 Sail Evolution Autopilot

The Raymarine EV-400 Sail Evolution Autopilot is a sailboat autopilot system package built around the EV-1 Sensor Core, p70s control head, and ACU-400 actuator control unit. It is intended for installations using a Type 2 or Type 3 drive unit, with SeaTalk ng networking and Evolution Ai autopilot control.

• Brand: Raymarine
• Product type: Sail Evolution autopilot system
• Drive requirement: Requires Type 2 or Type 3 drive unit
• Drive output: 30 Amp output for Type 3 drives or ZF Sail Pod Drive Systems
• Autopilot technology: Evolution Ai
• Calibration: No calibration required
• Networking: SeaTalk ng network compatible
• ACU-400 function: Provides auxiliary power to the SeaTalk ng network

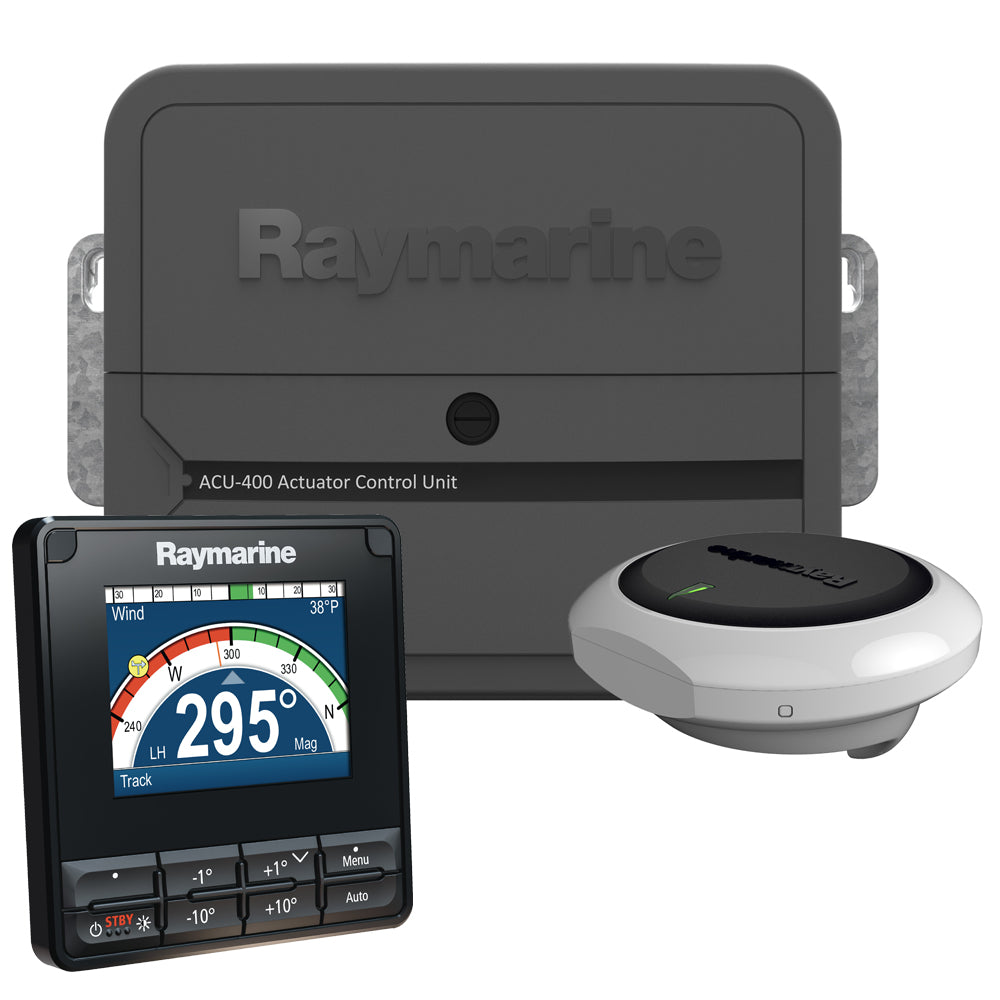

• Included: EV-1 Sensor Core, p70s Autopilot Control Head, ACU-400 Actuator Control Unit with M81105 Rotary Rudder Reference, and Evolution Cabling Kit
• EV-1 sensor: 9-axis sensor monitors vessel motion in three dimensions
• EV-1 installation: Mounts above or below deck
• EV-1 enclosure rating: IPX6 and IPX7 waterproofing and submersion standards
• EV-1 system use: Designed for Evolution mechanical and hydraulic autopilot systems
• Sensor data: Monitors heading, pitch, roll, and yaw
• Heading accuracy: Dynamic accuracy within 2 degrees in all conditions
• Display support: Provides heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
• p70s controls: Push-button controller designed primarily for sailboats
• p70s display: LightHouse user interface, 160 degree viewing angles, and anti-reflective coating
• p70s setup: Start-up wizard for pilot configuration
• p70s power use: Typically 132mA/1.6W
• Supported modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer
• Illumination: Simple system and group dimming
• Connections: SeaTalk ng / NMEA2000 and SeaTalk1 connectivity with no bridging required
