Raymarine EV-400 Power Evolution Autopilot

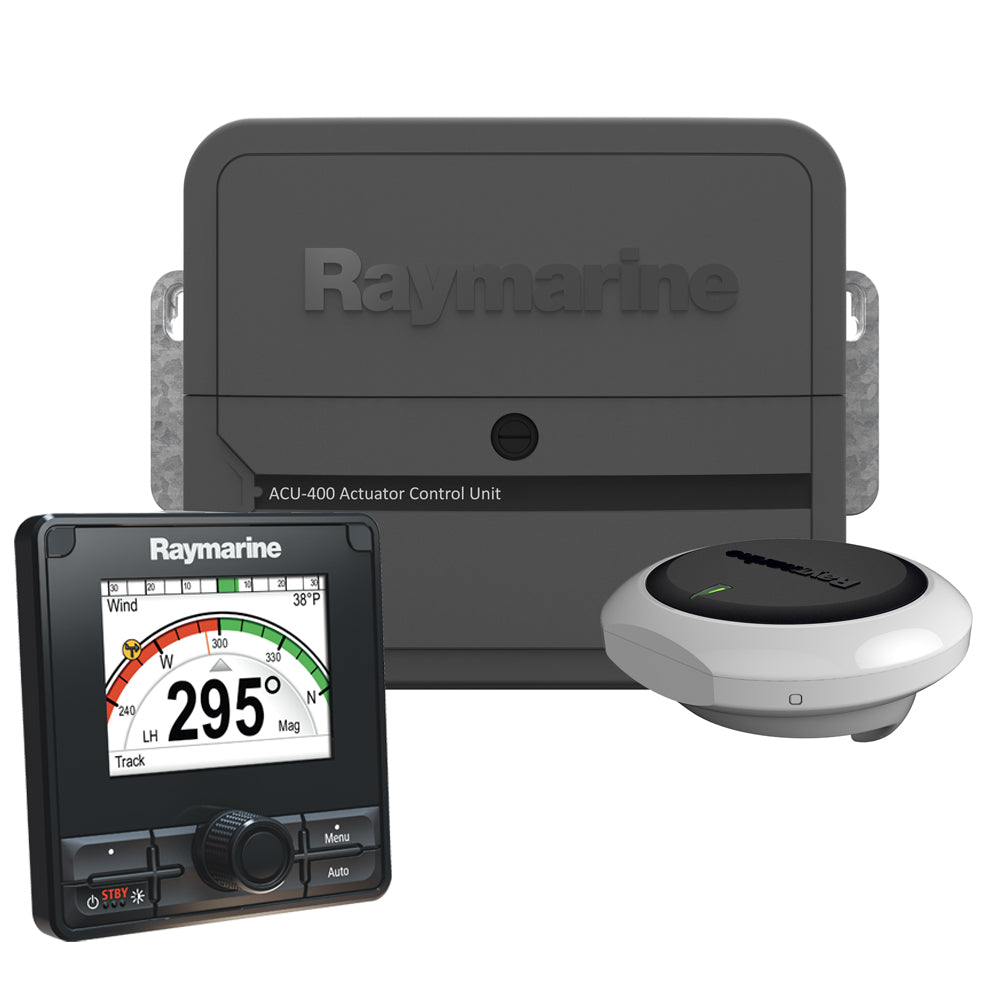

The Raymarine EV-400 Power Evolution Autopilot is a heavy-duty autopilot package for vessels using Type 2 or Type 3 drive units. It combines the EV-1 sensor core, p70Rs control head, ACU-400 actuator control unit, and Evolution cabling needed for a SeaTalk ng based installation.

The system is designed around Evolution Ai with no calibration required. Its 9-axis sensor monitors vessel motion, while the p70Rs rotary controller gives direct access to common autopilot modes from the helm.

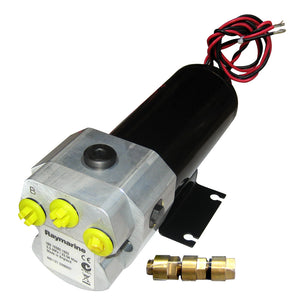

• Compatibility note: Requires Type 2 or Type 3 drive units
• Output: Heavy-duty 30 amp output for Type 3 drives or constant running pumps
• Autopilot technology: Evolution Ai
• Calibration: No calibration required
• Network: SeaTalk ng compatible
• Auxiliary power: ACU-400 supplies auxiliary power to the SeaTalk ng network
• Included: EV-1 Sensor Core, p70Rs Autopilot Control Head, ACU-400 Actuator Control Unit, M81105 Rotary Rudder Reference, Evolution Cabling Kit, EV Unit O-Ring Pack, and wall mounting bracket
• EV-1 sensing: Monitors heading, pitch, roll, and yaw
• EV-1 installation: Mounts above or below deck
• EV-1 waterproof ratings: IPX6 and IPX7
• EV-1 accuracy: Dynamic accuracy within 2 degrees in all conditions
• Display support: Provides heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
• p70Rs controls: Rotary control knob with LightHouse user interface
• p70Rs viewing: 160 degree viewing angles and anti-reflective coating
• p70Rs power use: Typically 132 mA / 1.6 W
• Supported modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer
• Connectivity: SeaTalk ng, NMEA 2000, and SeaTalk1 without bridging
