• Raymarine EV-200 Power Hydraulic Evolution Autopilot
1 1

Raymarine

Raymarine EV-200 Power Hydraulic Evolution Autopilot

Raymarine EV-200 Power Hydraulic Evolution Autopilot

OM-RAYMARINE-EV200POWER-T70157

$3,499.99
$3,499.99
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Raymarine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

HydraulicSteering Type

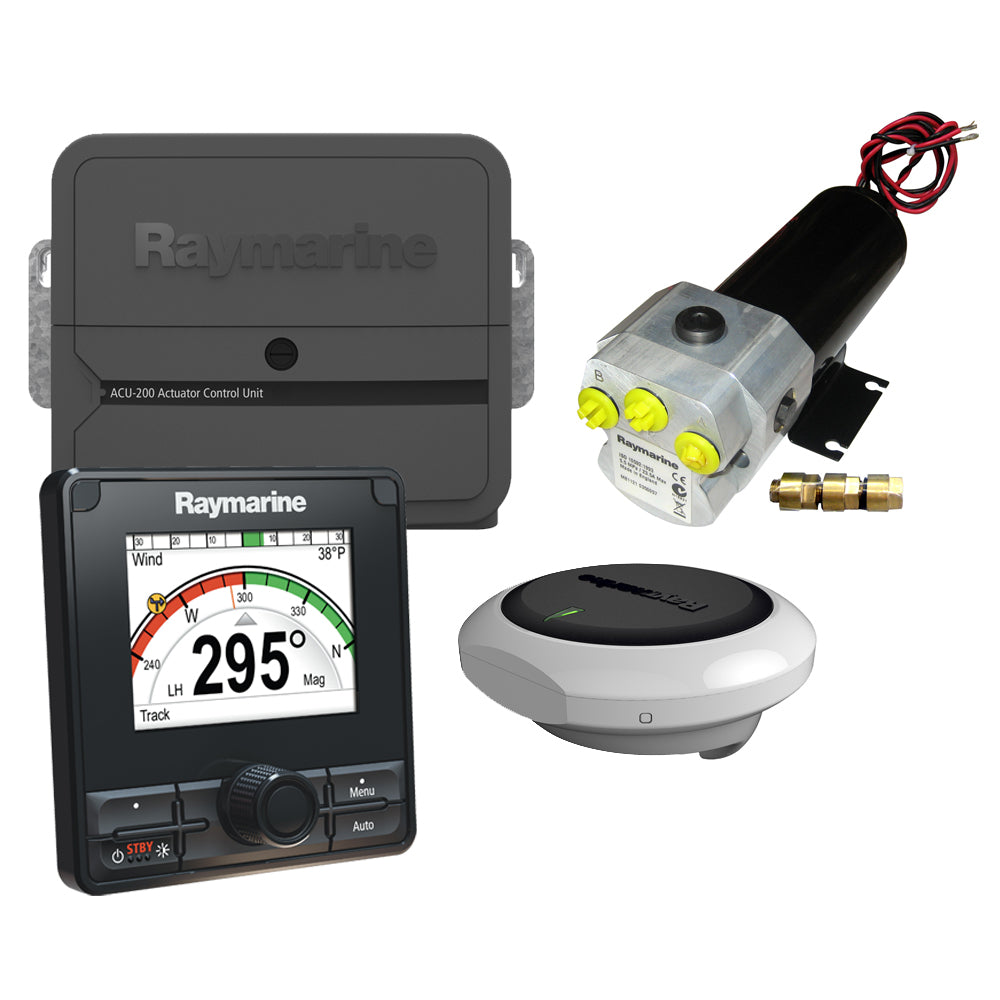

The Raymarine EV-200 Power Hydraulic Evolution Autopilot is a complete autopilot package for hydraulic steering systems. It includes the EV-1 sensor core, p70Rs control head, ACU-200 actuator control unit, Type 1 hydraulic pump, and Evolution cabling needed for a matched Raymarine system.

  • System: EV-200 Power Hydraulic Evolution Autopilot
  • Autopilot technology: Evolution Ai
  • Calibration: no calibration required
  • Drive unit: Type 1 Hydraulic Drive Unit included
  • Networking: SeaTalk ng network compatible
  • Auxiliary power: ACU-200 provides auxiliary power to the SeaTalk ng network
  • Control head: p70Rs Autopilot Controller with rotary control knob
  • Included components: EV-1 Sensor Core, p70Rs Autopilot Control Head, ACU-200 Actuator Control Unit with M81105 Rotary Rudder Reference, Type 1 Hydraulic Pump, Evolution Cabling Kit, EV Unit O-Ring Pack set of 2, and Wall Mounting Bracket
  • EV-1 sensor: 9-axis sensor monitors heading, pitch, roll, and yaw
  • EV-1 installation: mounts above or below deck
  • EV-1 protection: fully sealed enclosure built to IPX6 and IPX7 waterproofing and submersion standards
  • EV-1 compatibility: designed for Evolution mechanical and hydraulic autopilot systems
  • EV-1 accuracy: solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
  • Display support: provides heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
  • p70Rs viewing: wide 160 degree viewing angles with anti-reflective coating
  • p70Rs power use: typically 132mA / 1.6W
  • Supported modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer
  • Connectivity: SeaTalk ng / NMEA2000 and SeaTalk1 connectivity with no bridging required

Specifications

Steering TypeHydraulic
BrandRaymarine
Manufacturer part #T70157
Boxed dimensions21 x 17 x 8 in
Shipping weight18.75 lb
Country of originHUNGARY
