Raymarine
Raymarine EV-200 Power Evolution Autopilot
Raymarine EV-200 Power Evolution Autopilot
SKU:OM-RAYMARINE-EV200POWER-T70156
Low stock: 1 left
Couldn't load pickup availability
Overview

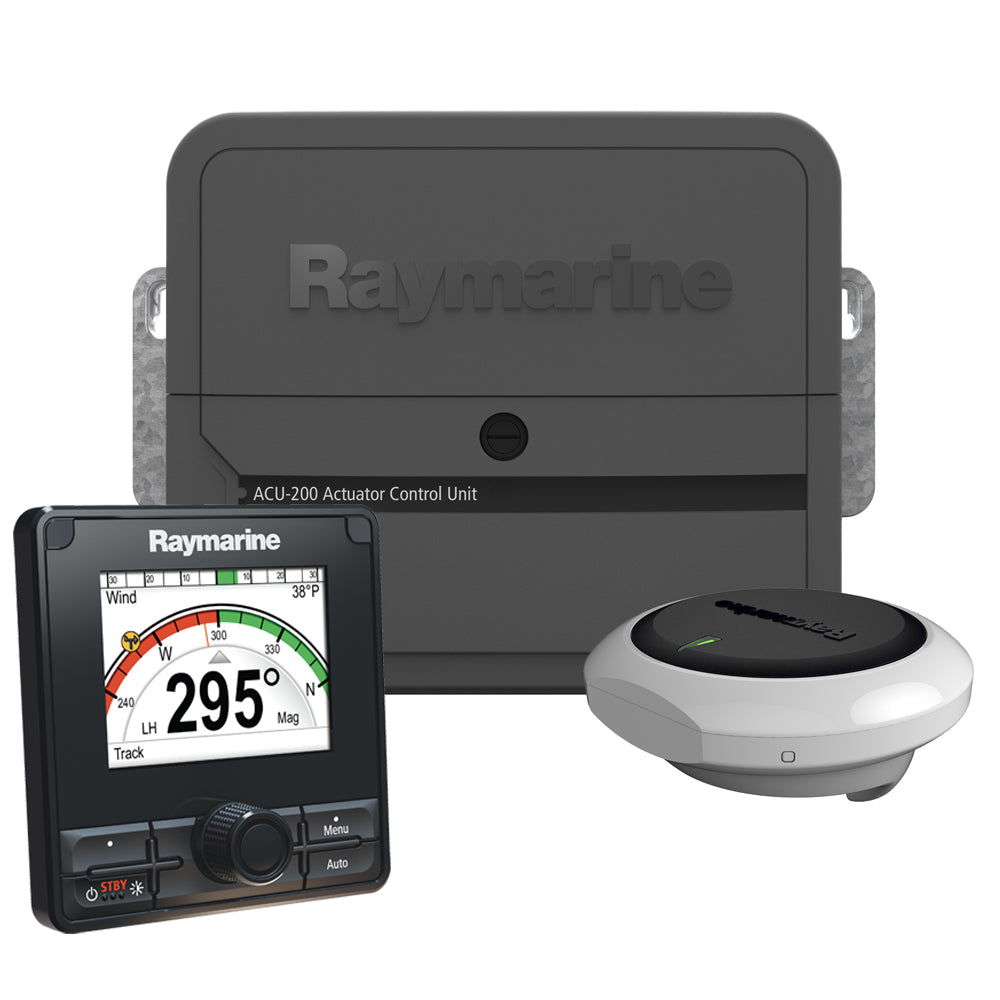

The Raymarine EV-200 Power Evolution Autopilot is an Evolution autopilot package for boats using a Type 1 hydraulic pump, sold separately. It includes the EV-1 sensor core, p70Rs control head, ACU-200 actuator control unit, and required Evolution cabling components.
- System: EV-200 Power Evolution Autopilot
- Operation: 12V or 24V DC
- Compatibility: Use with any Type 1 hydraulic pump, sold separately
- Networking: SeaTalk ng network capable
- Included components: EV-1 Sensor Core, p70Rs Autopilot Control Head, ACU-200 Actuator Control Unit with M81105 Rotary Rudder Reference, Evolution Cabling Kit, EV Unit O-Ring Pack set of 2, and Wall Mounting Bracket
- EV-1 sensing: 9-axis sensor monitors vessel motion in three dimensions, including heading, pitch, roll, and yaw
- EV-1 mounting: Can be mounted above or below deck
- EV-1 waterproofing: Fully sealed enclosure built to IPX6 and IPX7 waterproofing and submersion standards
- EV-1 accuracy: Dynamic accuracy to within 2 degrees in all conditions
- Control head: p70Rs with rotary control knob and LightHouse user interface
- Viewing angle: Wide 160 degree viewing angles
- Display coating: Anti-reflective coating for bright sunlight visibility
- Power use: Typically 132mA / 1.6W
- Supported modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer
- Connectivity: SeaTalk ng / NMEA2000 and SeaTalk1 connectivity with no bridging required
Specifications
| Steering Type | Hydraulic |
|---|---|
| Brand | Raymarine |
| Manufacturer part # | T70156 |
| UPC | 723193854174 |
| Boxed dimensions | 21 x 17 x 8 in |
| Shipping weight | 13.15 lb |
| Country of origin | HUNGARY |
