• Raymarine Axiom 2 RV 9" Chartplotter/Fishfinder w/RealVision 3D Sonar - No Transducer
  • 113556
1 2

Raymarine

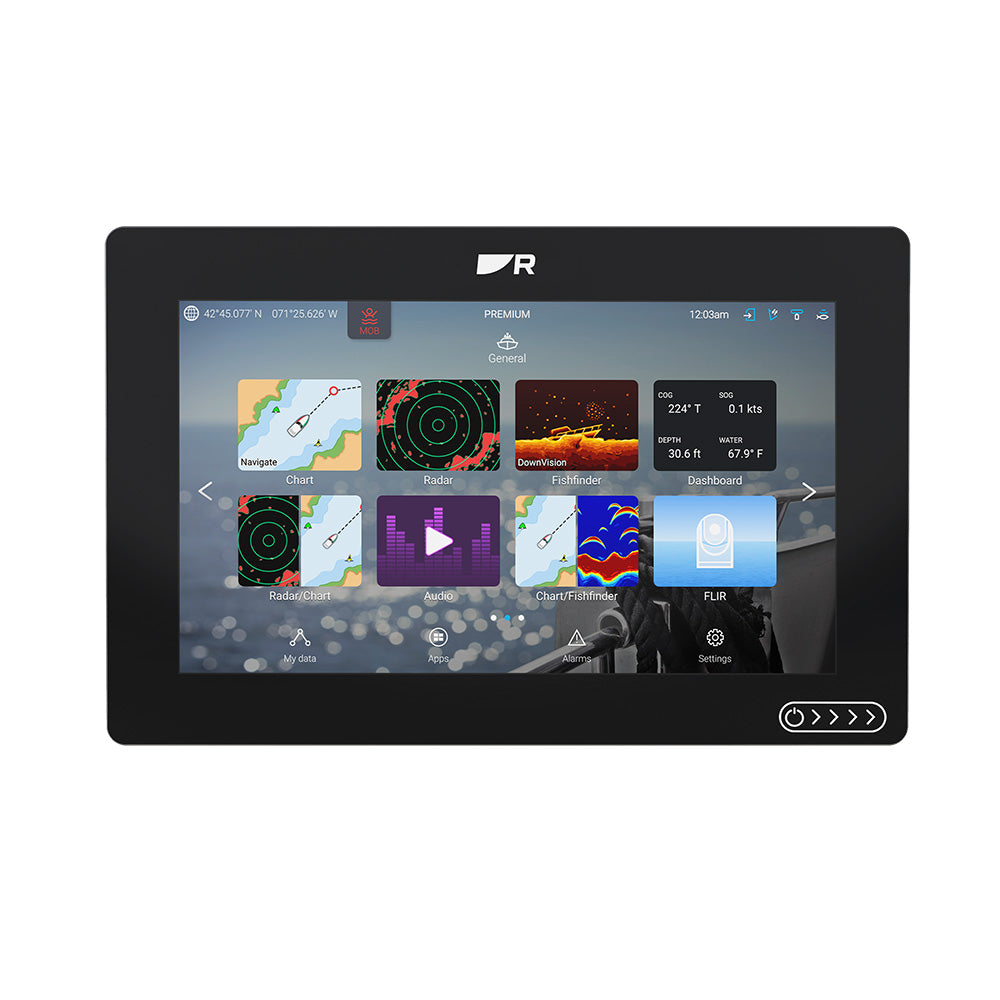

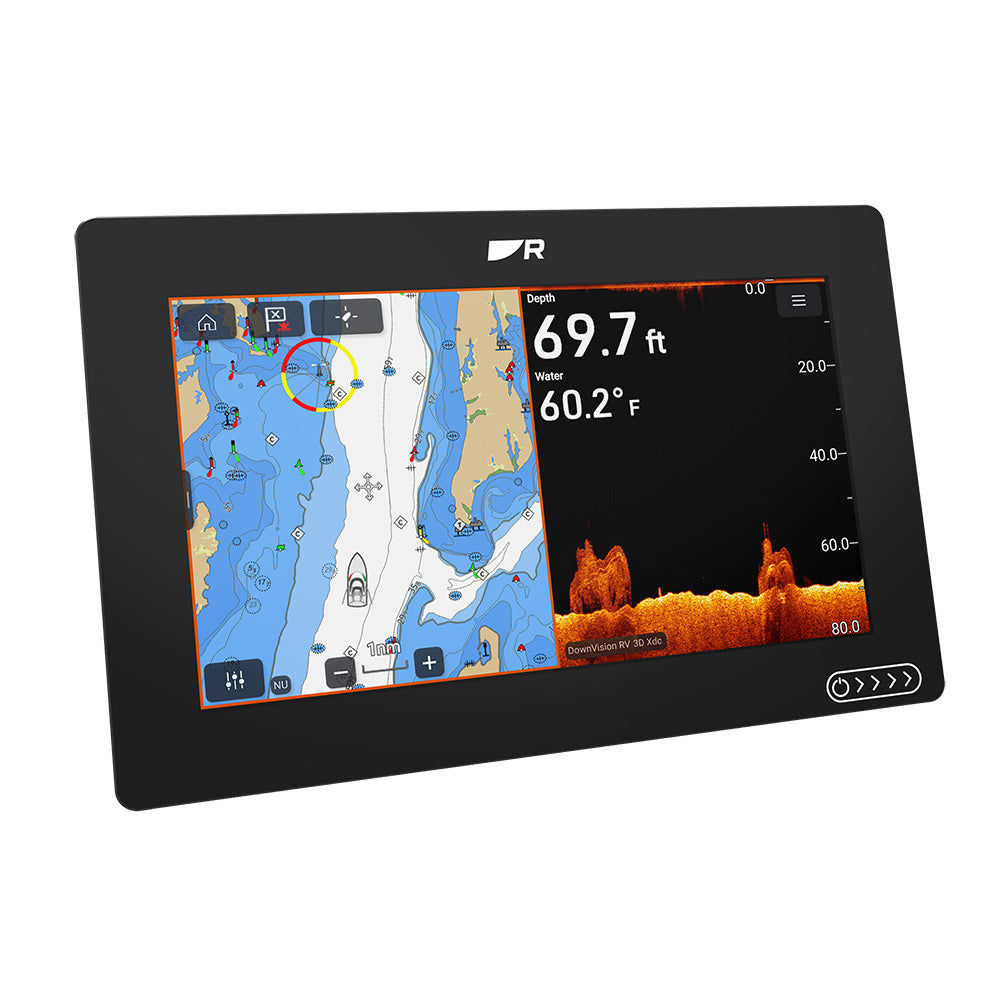

Raymarine Axiom 2 RV 9" Chartplotter/Fishfinder w/RealVision 3D Sonar - No Transducer

Raymarine Axiom 2 RV 9" Chartplotter/Fishfinder w/RealVision 3D Sonar - No Transducer

OM-RAYMARINE-AXIOM2RV-E70723

$1,599.99
$1,599.99
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Raymarine Authorized Reseller
Authorized Raymarine ResellerGenuine Raymarine product with full U.S. manufacturer warranty.
Free standard shipping · every U.S. order, no minimum
Authorized Raymarine Reseller
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

Navionics/C-MapCartography Brand
9"Screen Size
YesTouchscreen
NoTransducer Included

The Raymarine Axiom 2 RV 9-inch chartplotter/fishfinder combines navigation, networking, and built-in sonar capability in one marine display. This model includes RealVision 3D sonar support and is supplied without a transducer.

  • Display: 9-inch diagonal IPS touchscreen
  • Resolution: HD 1280 x 720
  • Brightness: 1500 cd/m²
  • Protective coating: HydroTough oleophobic coating
  • Processor: 6-core
  • Operating system: LightHouse OS
  • Sonar: Built-in SideVision, DownVision, RealVision 3D, and 600W CHIRP sonar
  • Transducer connection: 1x 25-pin RealVision connector
  • Transducer included: No
  • Storage: 64 GByte onboard storage
  • Charts: Compatible with LightHouse Charts Gen 2, Navionics, C-MAP, and more
  • GNSS: Internal GPS / GLONASS receiver with 10 Hz position updates
  • Networking: 1x RayNet 10 / 100 / 1000 Mbit/sec Ethernet, WiFi 802.11 b / g / n, Bluetooth v4.0
  • NMEA 2000 / DeviceNet: 1x DeviceNet male connector on power cable, LEN rating 1
  • Voltage: Nominal 12 V DC; operating range 8 to 16 V DC
  • Maximum power consumption: 11.98W
  • Fuse / breaker rating: 7A inline fuse or thermal breaker
  • Trunnion mount dimensions: 10.43" W x 7.39" H x 7.01" D
  • Surface / flush mount dimensions: 9.61" W x 6.21" H x 7.01" D
  • Warranty: 3 years

Specifications

Cartography BrandNavionics/C-Map
Screen Size9"
TouchscreenYes
Transducer IncludedNo
BrandRaymarine
Manufacturer part #E70723
UPC723193867341
Boxed dimensions14 x 10 x 8 in
Shipping weight9.15 lb
