Raymarine

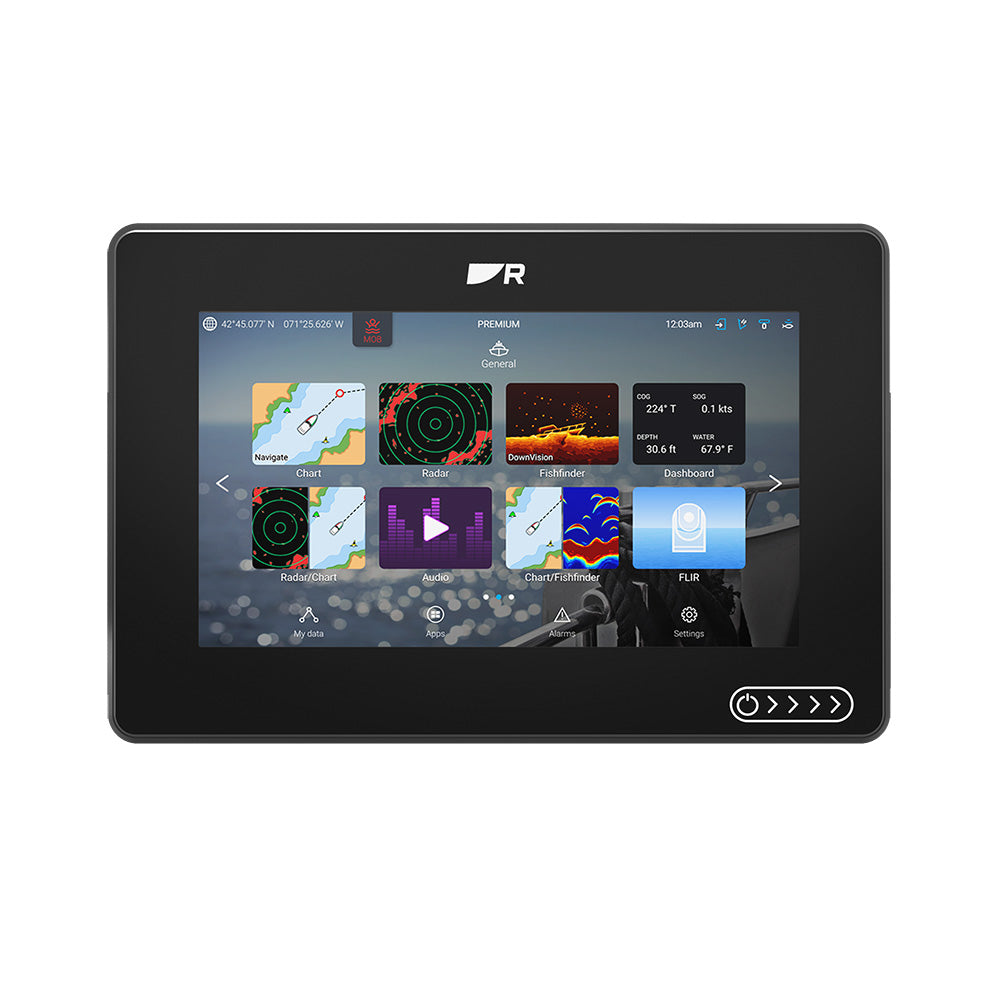

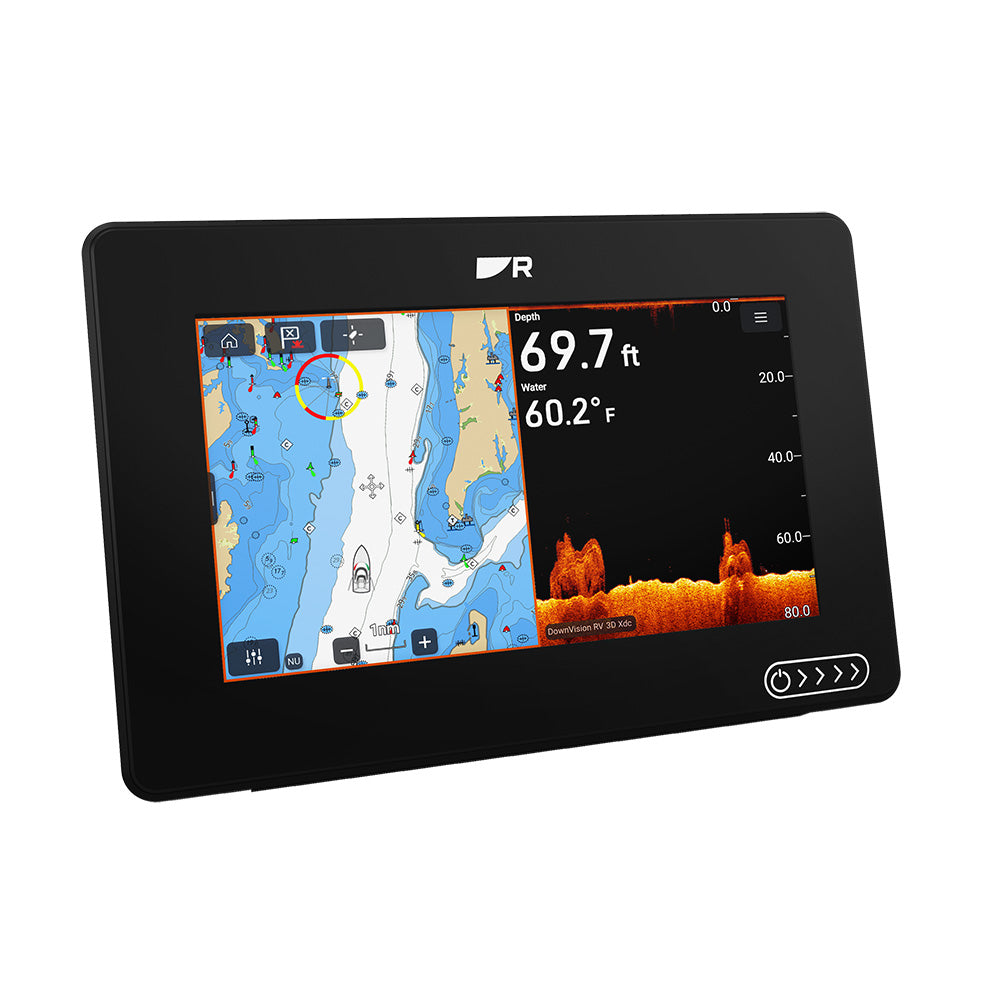

Raymarine Axiom 2 RV 7" Chartplotter/Fishfinder w/RealVision 3D Sonar - No Transducer
Raymarine Axiom 2 RV 7" Chartplotter/Fishfinder w/RealVision 3D Sonar - No Transducer
SKU:OM-RAYMARINE-AXIOM2RV-E70721
Low stock: 1 left
Couldn't load pickup availability
Frequently bought together
FREE U.S. shipping on every item
Overview
The Raymarine Axiom 2 RV 7-inch unit combines chartplotter navigation with built-in RealVision 3D fishfinder sonar for leisure boats, fishing boats, cruisers, sailboats, and motor yachts. This version is supplied without a transducer and is built around a HydroTough IPS touchscreen, LightHouse OS, and a 6-core processor for responsive operation.
- Display: 7-inch IPS touchscreen with WSVGA 1024 x 600 resolution
- Brightness: 1500 cd/m²
- Processor: 6-core
- Sonar: Built-in SideVision, DownVision, RealVision 3D, and 600W CHIRP sonar
- Transducer connection: 1x 25-pin RealVision connector; transducer not included
- Operating system: LightHouse OS with access to over 30 LightHouse apps
- Storage: 64 GByte onboard storage for apps, charts, video, and user data
- Chart compatibility: LightHouse Charts Gen 2, Navionics, C-MAP, and more
- GNSS: Built-in GPS / GNSS with 10 Hz position updates
- Networking: 1x RayNet 10 / 100 / 1000 Mbit/sec Ethernet, 802.11 b/g/n WiFi, and Bluetooth v4.0
- NMEA 2000: 1x DeviceNet male connector on power cable, LEN rating 1
- Voltage: 12 V DC nominal; 8 to 16 V DC operating range
- Maximum power consumption: 9.84W
- Fuse / breaker rating: 7A
- Trunnion-mounted dimensions: 9.86 in W x 6.4 in H x 8.58 in D
- Surface / flush-mounted dimensions: 7.92 in W x 5.24 in H x 8.58 in D
- Warranty: 3 years
Specifications
| Cartography Brand | Navionics/C-Map |
|---|---|
| Screen Size | 7" |
| Touchscreen | Yes |
| Transducer Included | No |
| Brand | Raymarine |
| Manufacturer part # | E70721 |
| UPC | 723193867327 |
| Boxed dimensions | 12 x 10 x 8 in |
| Shipping weight | 6.8 lb |
