Raymarine

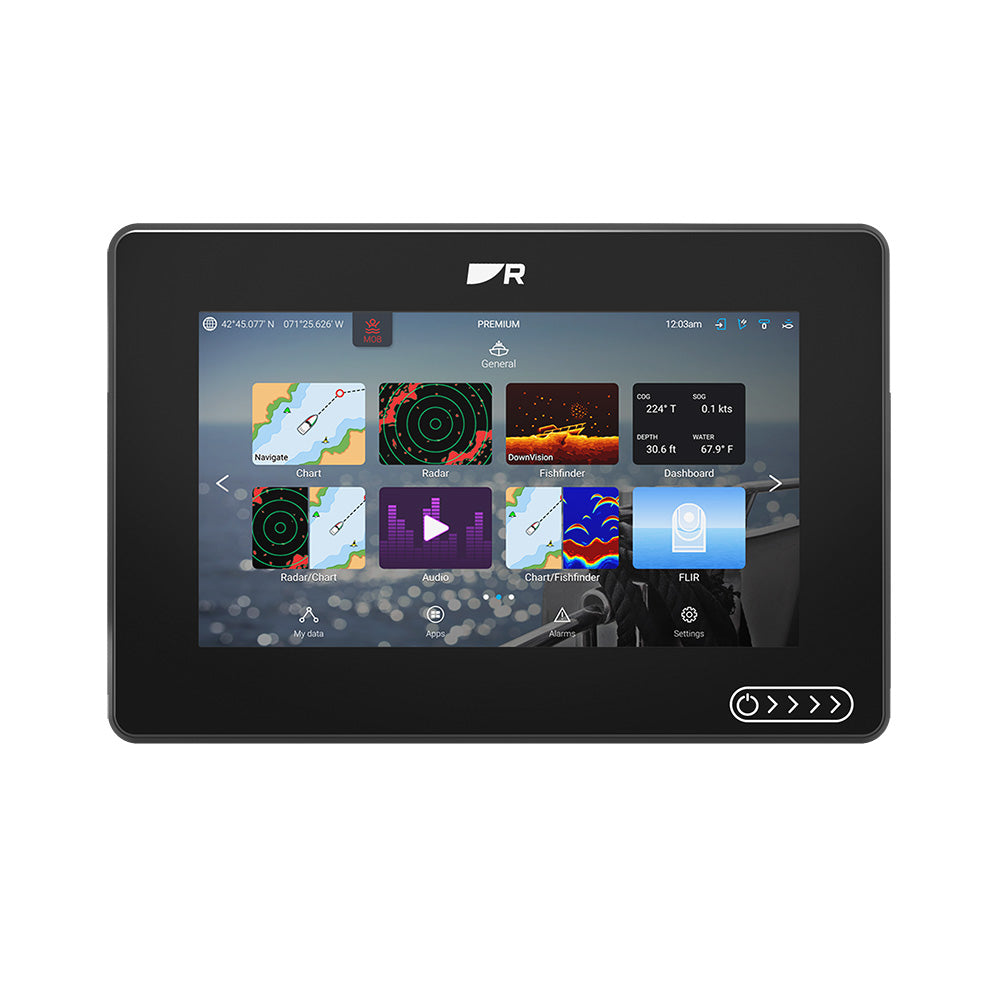

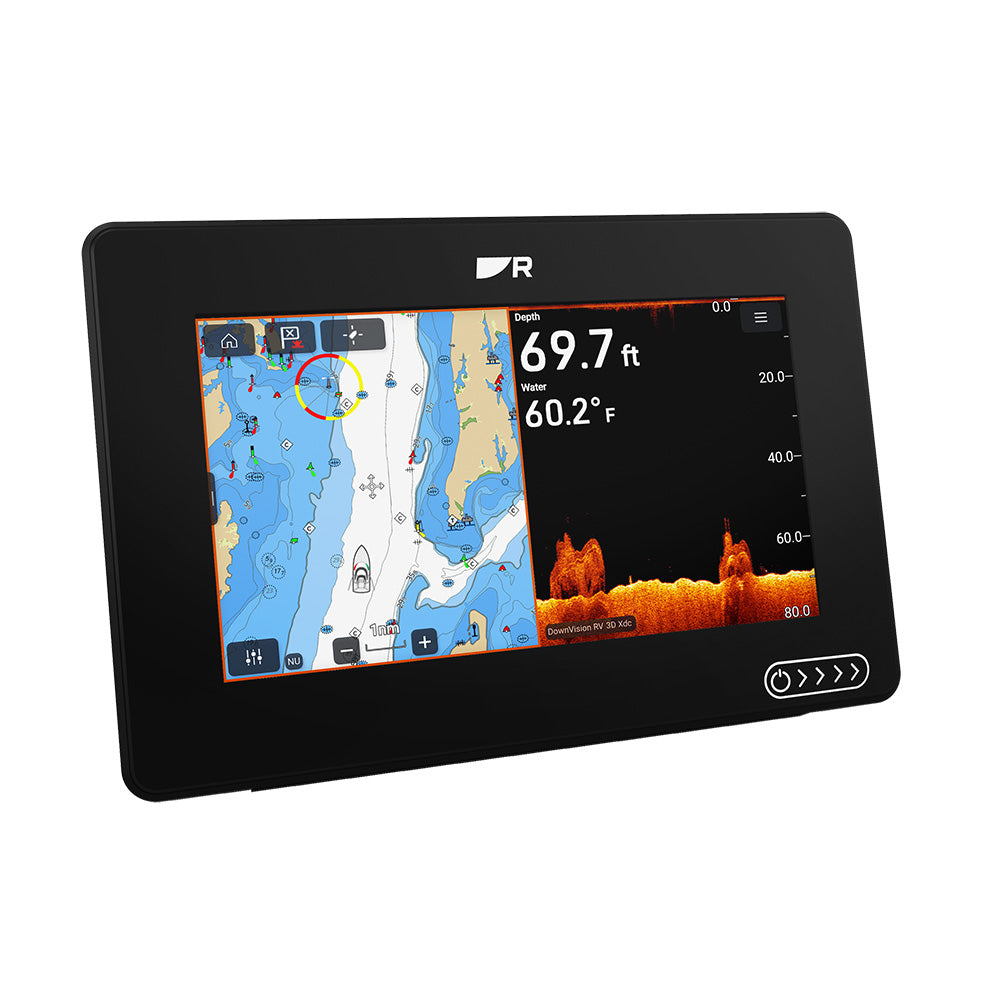

Raymarine Axiom 2 RV 7" Chartplotter/Fishfinder w/RealVision 3D Sonar & Lighthouse North America Chart - No Transducer
Raymarine Axiom 2 RV 7" Chartplotter/Fishfinder w/RealVision 3D Sonar & Lighthouse North America Chart - No Transducer
SKU:OM-RAYMARINE-AXIOM2RV-E7072100102
Low stock: 1 left
Couldn't load pickup availability
Frequently bought together
FREE U.S. shipping on every item
Overview
The Raymarine Axiom 2 RV 7-inch display combines chartplotter navigation with built-in RealVision sonar capability for boaters who want one screen for routing, fishfinding, and system integration. This package includes the LightHouse North America chart and is supplied without a transducer.
- Display: 7-inch HydroTough IPS touchscreen
- Resolution: WSVGA 1024 x 600
- Brightness: 1500 cd/m²
- Processor: 6-core processor
- Sonar: SideVision, DownVision, RealVision 3D, and 600W CHIRP sonar built in
- Charting: Includes LightHouse North America chart
- Storage: 64 GByte onboard storage
- GNSS: Built-in GPS/GNSS with 10 Hz position updates
- Networking: 1 RayNet 10/100/1000 Mbit/sec Ethernet connection
- Wireless: 802.11 b/g/n WiFi and Bluetooth v4.0
- NMEA 2000: 1 DeviceNet male connector on power cable, LEN rating 1
- Transducer connection: 1 25-pin RealVision connector
- Power: 12 V DC nominal, 8 to 16 V DC operating range
- Maximum power consumption: 9.84W
- Fuse or breaker rating: 7A
- Trunnion-mounted dimensions: 9.86 in W x 6.4 in H x 8.58 in D
- Surface/flush-mounted dimensions: 7.92 in W x 5.24 in H x 8.58 in D
- Warranty: 3 years
Specifications
| Cartography Brand | Navionics/C-Map |
|---|---|
| Screen Size | 7" |
| Touchscreen | Yes |
| Transducer Included | No |
| Brand | Raymarine |
| Manufacturer part # | E70721-00-102 |
| Boxed dimensions | 12 x 10 x 8 in |
| Shipping weight | 6.85 lb |
Manuals & documents
