Raymarine

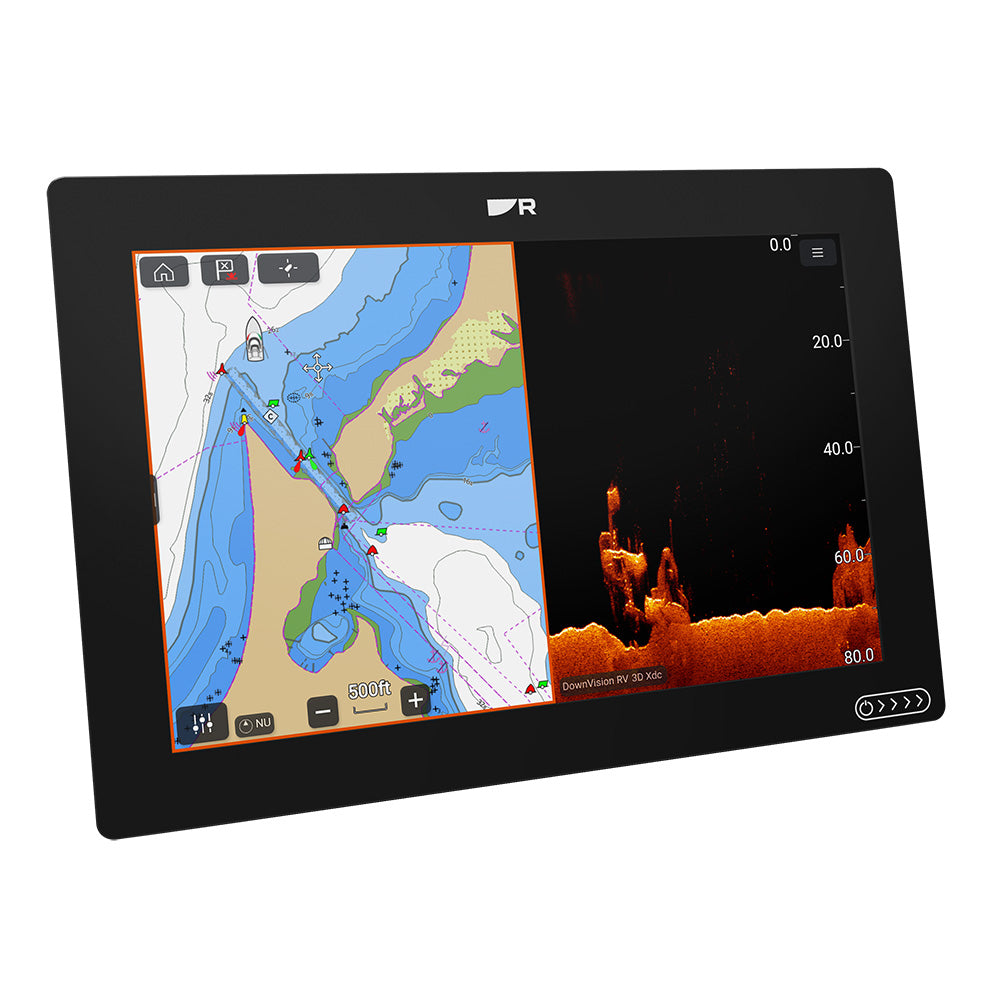

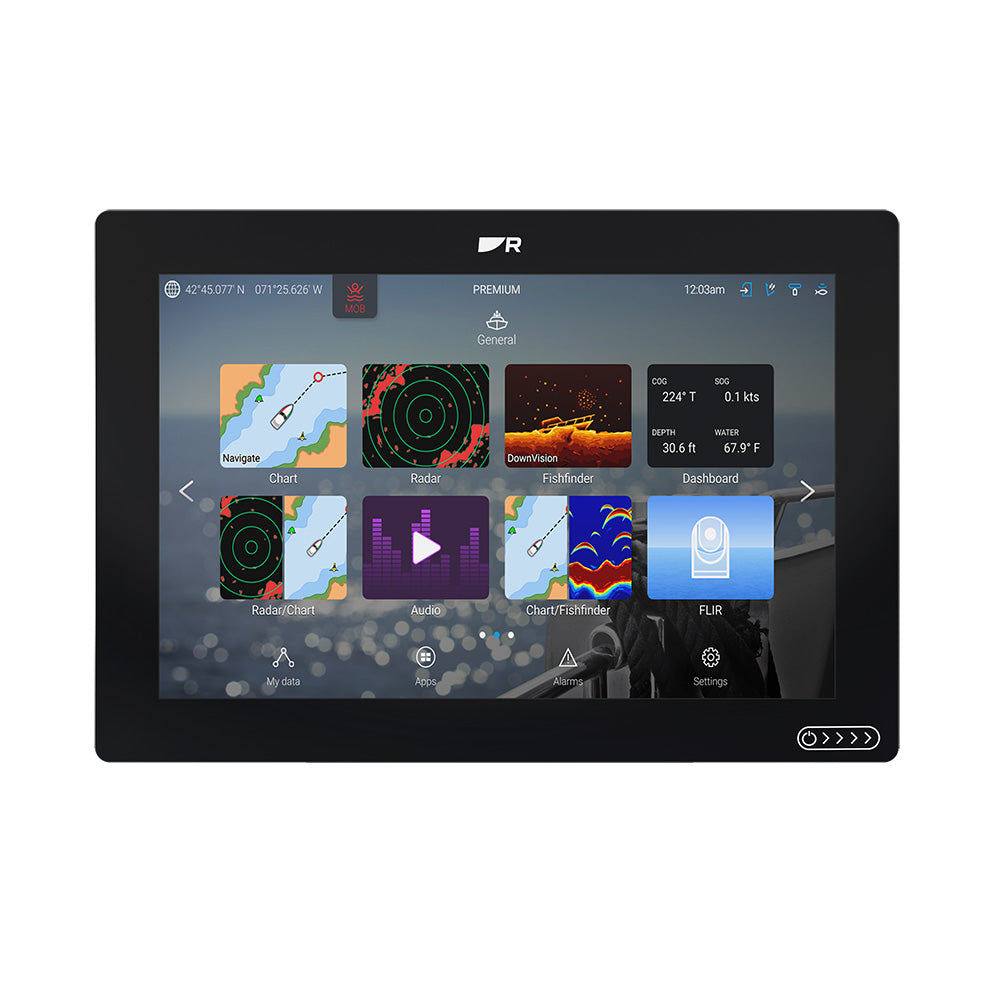

Raymarine Axiom 2 RV 12" Chartplotter/Fishfinder w/RealVision 3D Sonar - No Transducer
Raymarine Axiom 2 RV 12" Chartplotter/Fishfinder w/RealVision 3D Sonar - No Transducer
SKU:OM-RAYMARINE-AXIOM2RV-E70725
Low stock: 1 left
Couldn't load pickup availability
Overview
The Raymarine Axiom 2 RV 12-inch Chartplotter/Fishfinder combines navigation, networking, and built-in RealVision sonar capability in one marine display. This model is supplied without a transducer and is designed for boaters who want chartplotting, fishfinding, vessel data, and app support from a single touchscreen system.
- Display: 12.1 inch diagonal IPS touchscreen
- Resolution: WXGA 1280 x 800
- Brightness: 1800 cd/m²
- Protective coating: HydroTough oleophobic coating
- Processor: 6-core processor
- Operating system: LightHouse OS
- Built-in sonar: SideVision, DownVision, RealVision 3D, and 600W CHIRP sonar
- Transducer included: No
- Transducer connection: 1x 25-pin RealVision connector
- Storage: 64 GByte onboard storage
- Chart compatibility: LightHouse Charts Gen 2, Navionics, C-MAP, and more
- GNSS: Internal GPS / GLONASS receiver with 10 Hz position updates
- NMEA 2000 / DeviceNet: 1x DeviceNet male connector on power cable, LEN rating 1
- Networking: 1x RayNet 10 / 100 / 1000 Mbit/sec Ethernet, 802.11 b / g / n WiFi, Bluetooth v4.0
- Voltage: Nominal 12 V DC; operating range 8 to 16 V DC
- Maximum power consumption: 18.96W
- Inline fuse / thermal breaker rating: 7A
- Dimensions, trunnion mounted: 12.36 in W x 8.93 in H x 7.01 in D
- Dimensions, surface / flush mounted: 12.36 in W x 8.54 in H x 7.01 in D
- Warranty listed: 3 years
Specifications
| Cartography Brand | Navionics/C-Map |
|---|---|
| Screen Size | 12" |
| Touchscreen | Yes |
| Transducer Included | No |
| Brand | Raymarine |
| Manufacturer part # | E70725 |
| UPC | 723193867365 |
| Boxed dimensions | 16 x 13 x 8 in |
| Shipping weight | 11.9 lb |
