Raymarine

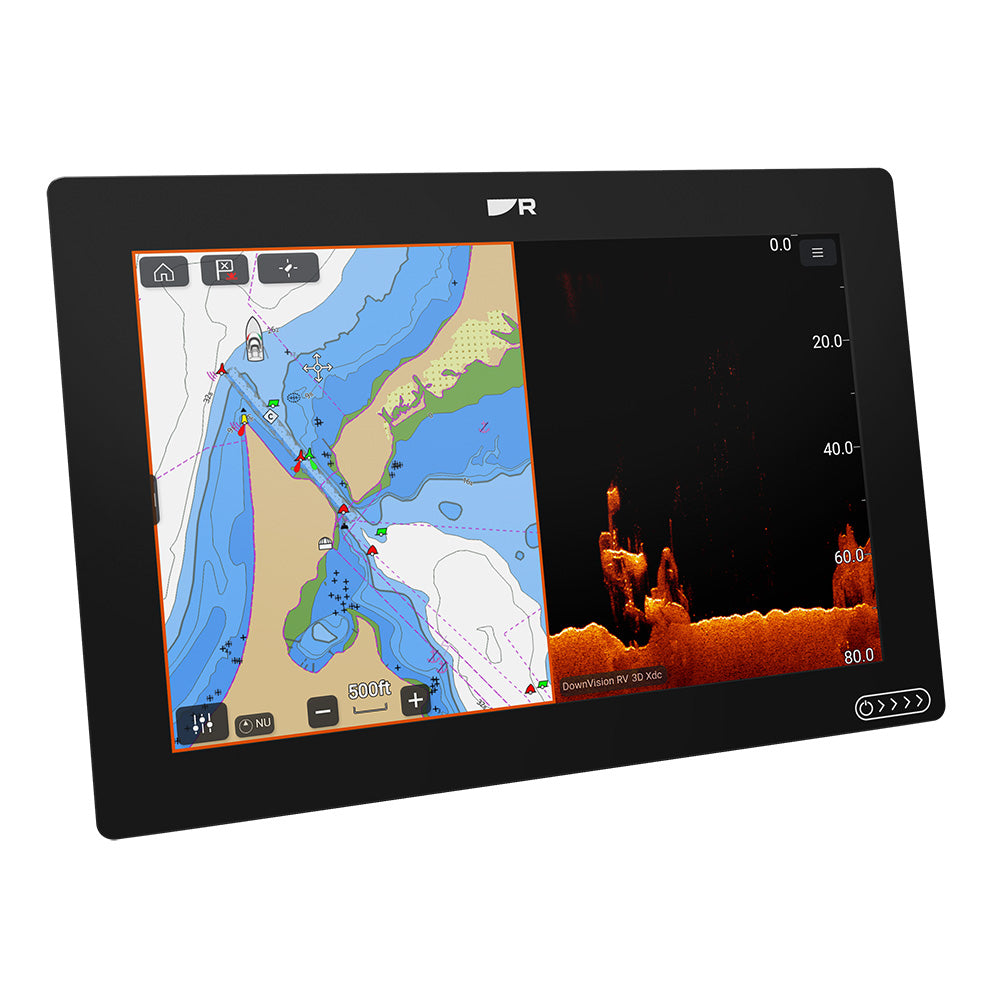

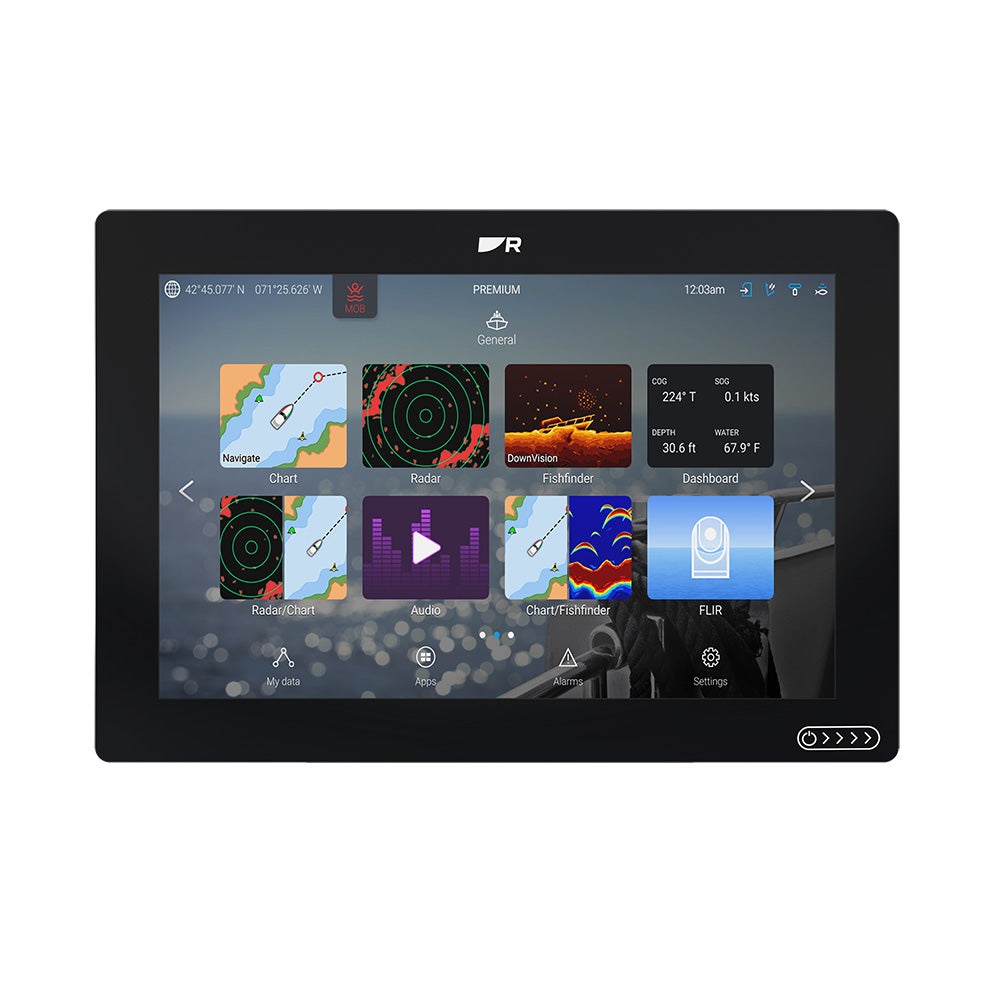

Raymarine Axiom 2 RV 12" Chartplotter/Fishfinder w/RealVision 3D Sonar & Lighthouse North America Chart - No Transducer
Raymarine Axiom 2 RV 12" Chartplotter/Fishfinder w/RealVision 3D Sonar & Lighthouse North America Chart - No Transducer
SKU:OM-RAYMARINE-AXIOM2RV-E7072500102
Low stock: 1 left
Couldn't load pickup availability
Overview
The Raymarine Axiom 2 RV 12 inch chartplotter/fishfinder is built for boaters who want navigation, sonar, and connected vessel data in one touchscreen display. This version includes RealVision 3D sonar capability and a Lighthouse North America chart, and it is supplied without a transducer.
- Brand: Raymarine
- Model: Axiom 2 RV
- Display size: 12.1 inch diagonal IPS touchscreen
- Charts included: Lighthouse North America Chart
- Transducer: No transducer included
- Sonar: Built-in SideVision, DownVision, RealVision 3D, and 600W CHIRP sonar
- Processor: 6-core processor
- Operating system: LightHouse OS with access to over 30 LightHouse apps
- Storage: 64 GByte onboard storage
- GNSS: Built-in high-performance GPS / GNSS with 10 Hz position updates
- Trunnion mounted dimensions: 12.36 inch W x 8.93 inch H x 7.01 inch D
- Surface / flush mounted dimensions: 12.36 inch W x 8.54 inch H x 7.01 inch D
- Voltage: Nominal 12 V DC; operating range 8 to 16 V DC
- Maximum power consumption: 18.96W
- Inline fuse / thermal breaker rating: 7A
- Resolution: WXGA 1280 x 800
- Brightness: 1800 nits / 1800 cd/m2
- Protective coating: HydroTough oleophobic coating
- Transducer connection: 1x 25-pin RealVision connector
- NMEA 2000 / DeviceNet: 1x DeviceNet male connector on power cable, LEN rating 1
- Networking: 1x RayNet 10 / 100 / 1000 Mbit/sec Ethernet, WiFi 802.11 b / g / n, Bluetooth v4.0
- Chart compatibility: LightHouse Charts Gen 2, Navionics, C-MAP, and more
- Warranty: 3-year warranty
Specifications
| Cartography Brand | Navionics/C-Map |
|---|---|
| Screen Size | 12" |
| Touchscreen | Yes |
| Transducer Included | No |
| Brand | Raymarine |
| Manufacturer part # | E70725-00-102 |
| Boxed dimensions | 16 x 13 x 8 in |
| Shipping weight | 11.95 lb |
