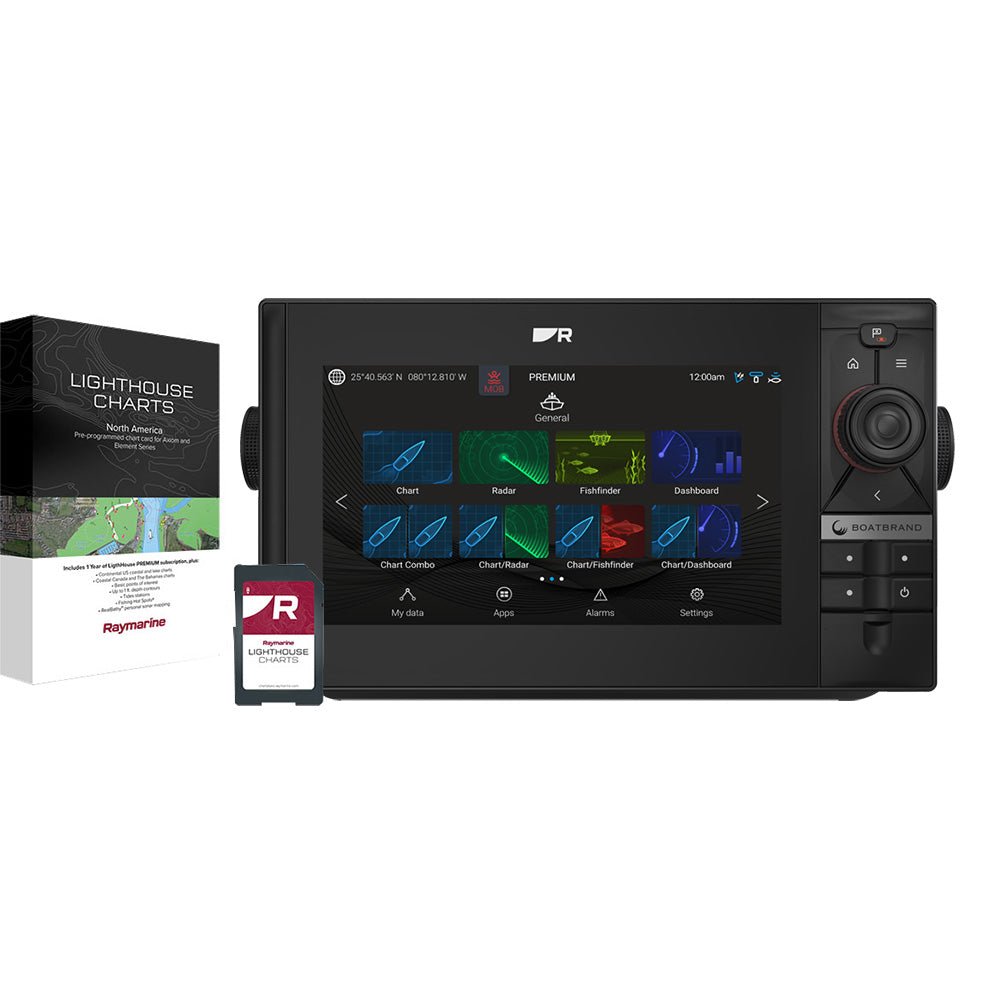

Raymarine Axiom 2 Pro 9 S 9" Chartplotter/Fishfinder w/Lighthouse North America Chart - No Transducer

The Raymarine Axiom 2 Pro 9 S is a 9-inch chartplotter and fishfinder for boats that need navigation, sonar, radar, autopilot, and video control from one display. This version includes the Lighthouse North America Chart and is supplied without a transducer.

HybridTouch operation gives you both touchscreen and keypad control, while built-in single-channel High CHIRP sonar supports CPT-S transducer options when used with the required adapter cable. It is built for expandable Raymarine networks with multiple display, storage, wireless, video, audio, and NMEA 2000 connections.

• Display: 9-inch Axiom 2 Pro S chartplotter/fishfinder
• Chart: Lighthouse North America Chart included
• Transducer: Not included
• Processor: 6-core processor
• Controls: HybridTouch touchscreen and keypad operation
• Screen coating: HydroTough nano-coating
• Backlighting: Smart backlighting with ambient light sensor
• Brightness: Axiom 2 Pro 9, 1300 nits / 1300 cd/m2
• Sonar: Integrated CHIRP conical sonar
• Sonar transducers: Uses CPT-S transducers with adapter cable A80490
• Depth range: 0.6 m (2 ft) to 274 m (900 ft), depending on water conditions
• Transducer port: 25-pin RealVision type connector, requires adapter cable
• GNSS compatibility: GPS, Galileo, GLONASS, Beidou
• Networking: Two RayNet Ethernet connections, 10/100/1,000 Mbits/s
• NMEA 2000: DeviceNet connector
• Wireless: Bluetooth V4.0 and Wi-Fi 802.11/b/g/n
• Storage: Two front MicroSD card slots
• Video and audio: HDMI Out Micro type D, BNC analog video input on power cable, left and right RCA audio via power/video/audio cable
• Other connections: TNC external GPS antenna connector and rear USB Micro B accessory connection
