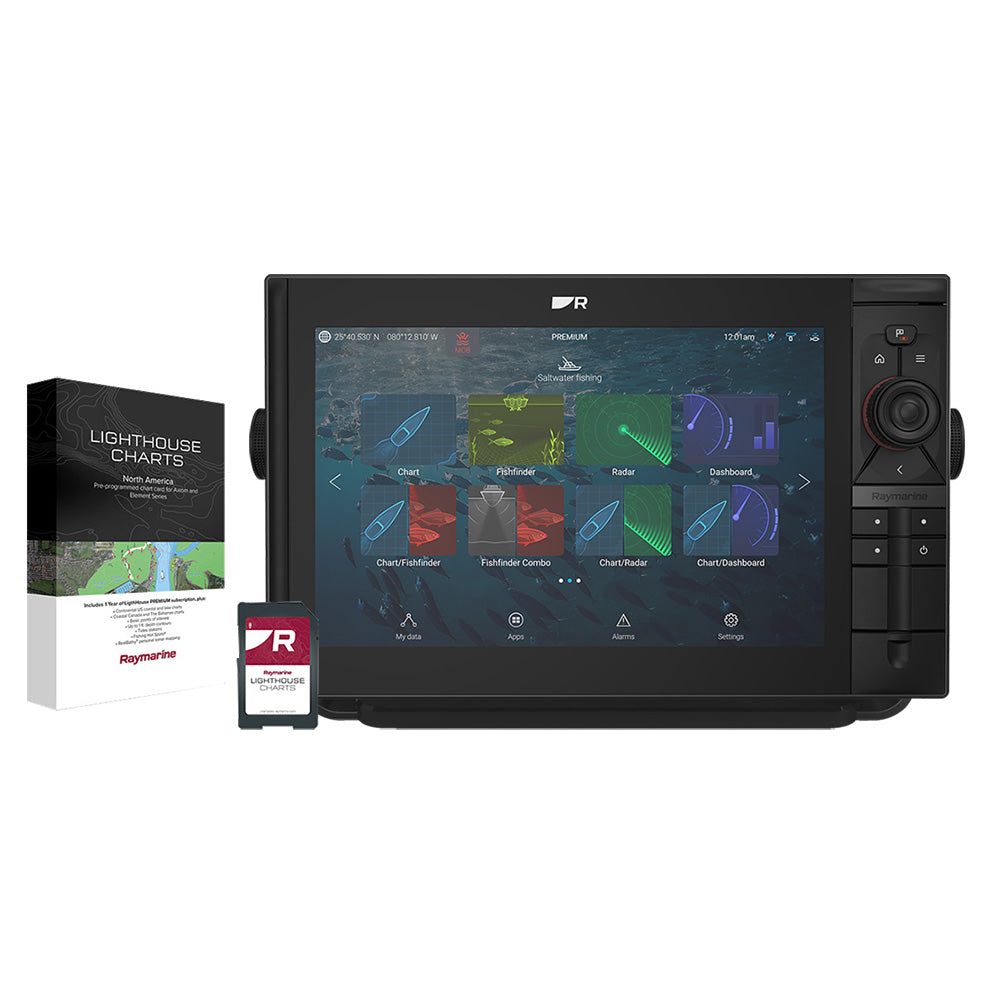

Raymarine Axiom 2 Pro 12 S 12" Chartplotter/Fishfinder w/Lighthouse North America Chart - No Transducer

Raymarine Axiom 2 Pro 12 S 12" Chartplotter/Fishfinder w/Lighthouse North America Chart - No Transducer

OM-RAYMARINE-AXIOM2PRO-E7065500102

$4,279.99
$4,279.99
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Raymarine Authorized Reseller
Authorized Raymarine ResellerGenuine Raymarine product with full U.S. manufacturer warranty.
Free standard shipping · every U.S. order, no minimum
Authorized Raymarine Reseller
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

Navionics/C-MapCartography Brand
12"Screen Size
YesTouchscreen
NoTransducer Included

The Raymarine Axiom 2 Pro 12 S is a 12-inch chartplotter and fishfinder for helm stations that need navigation, sonar, radar, autopilot, and video control in one display. This model includes a LightHouse North America chart and has built-in single-channel High CHIRP sonar; no transducer is included.

  • Display size: 12 inches
  • Included chart: LightHouse North America Chart
  • Transducer: Not included
  • Processor: 6-core processor
  • Controls: HybridTouch touchscreen and keypad operation
  • Touchscreen coating: HydroTough nano-coating
  • Sonar: Built-in single-channel High CHIRP conical sonar
  • Compatible sonar options: CPT-S transducers with adapter cable A80490
  • Depth range: 0.6 m (2 ft) to 274 m (900 ft), depending on water conditions
  • Networking: Supports multiple networked Axiom displays
  • Ethernet: RayNet 10/100/1,000 Mbits/s x2
  • NMEA 2000: DeviceNet connector
  • External storage: Front MicroSD card slots x2
  • Video/audio out: HDMI Out Micro connector type D
  • Analog video: BNC analog video input on power cable
  • Audio: Left and right RCA connectors via power/video/audio cable
  • Wireless: Bluetooth V4.0 and Wi-Fi 802.11 b/g/n
  • GNSS compatibility: GPS, Galileo, GLONASS, and Beidou
  • Accessory connection: USB Micro B for charging, external storage, or RCR-SD/USB accessory A80440
  • External GPS antenna: TNC connector
  • Transducer connection: 25-pin RealVision type connector, requires adapter cable
  • Backlighting: Smart backlighting with ambient light sensor
  • Entertainment support: Streaming apps, HDMI output, and audio output for remote displays and marine entertainment systems

Specifications

Cartography BrandNavionics/C-Map
Screen Size12"
TouchscreenYes
Transducer IncludedNo
BrandRaymarine
Manufacturer part #E70655-00-102
Boxed dimensions16 x 10 x 8 in
Shipping weight15.15 lb
