Overview

Navionics/C-MapCartography Brand
12"Screen Size
YesTouchscreen
NoTransducer Included

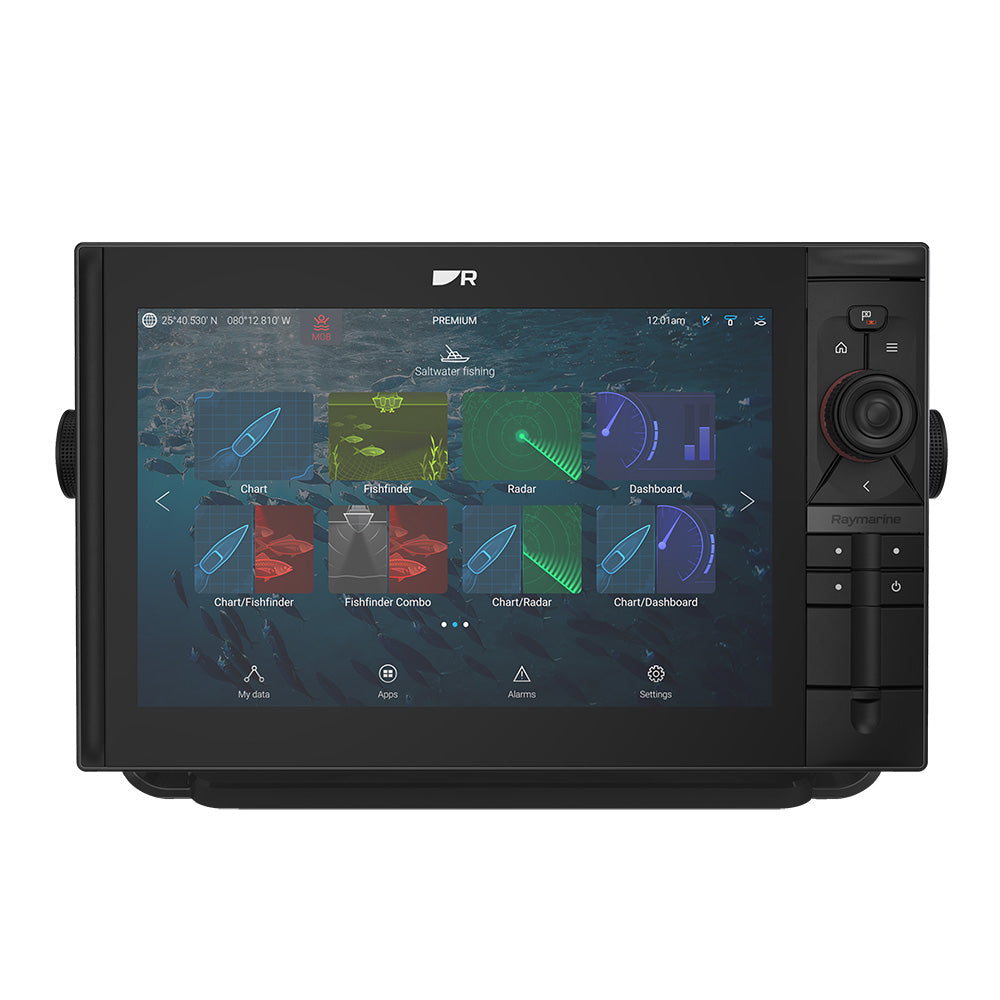

The Raymarine Axiom 2 Pro 12 S is a 12-inch chartplotter and fishfinder for building an integrated helm system with navigation, sonar, radar, autopilot, and video. This model is supplied without a chart or transducer.

It combines HybridTouch touchscreen and keypad operation with built-in single-channel High CHIRP sonar for CPT-S transducer options when used with the required adapter cable. The unit also supports multiple networked Axiom displays and includes wired, wireless, video, audio, storage, and NMEA 2000 connections.

  • Display: 12-inch Axiom 2 Pro S chartplotter/fishfinder
  • Chart: No chart included
  • Transducer: Not included
  • Processor: 6-core processor
  • Controls: HybridTouch touchscreen and keypad operation
  • Screen coating: HydroTough nano-coating
  • Backlighting: Smart backlighting with ambient light sensor
  • Brightness: Axiom 2 Pro 12 and 16, 1200 nits / 1200 cd/m2
  • Sonar: Integrated CHIRP conical sonar
  • Sonar transducers: Uses CPT-S transducers with adapter cable A80490
  • Depth range: 0.6 m (2 ft) to 274 m (900 ft), depending on water conditions
  • Transducer port: 25-pin RealVision type connector, requires adapter cable
  • GNSS compatibility: GPS, Galileo, GLONASS, Beidou
  • Chart options: Navionics+, Navionics Platinum, C-map 4D Software, Lighthouse North America
  • Networking: Two RayNet Ethernet connections, 10/100/1,000 Mbits/s
  • NMEA 2000: DeviceNet connector
  • Wireless: Bluetooth V4.0 and Wi-Fi 802.11/b/g/n
  • Storage: Two front MicroSD card slots
  • Video and audio: HDMI Out Micro type D, BNC analog video input on power cable, left and right RCA audio via power/video/audio cable
  • Other connections: TNC external GPS antenna connector and rear USB Micro B accessory connection

Specifications

Cartography BrandNavionics/C-Map
Screen Size12"
TouchscreenYes
Transducer IncludedNo
BrandRaymarine
Manufacturer part #E70655
UPC723193843536
Boxed dimensions16 x 10 x 8 in
Shipping weight15.1 lb
Country of originHUNGARY
