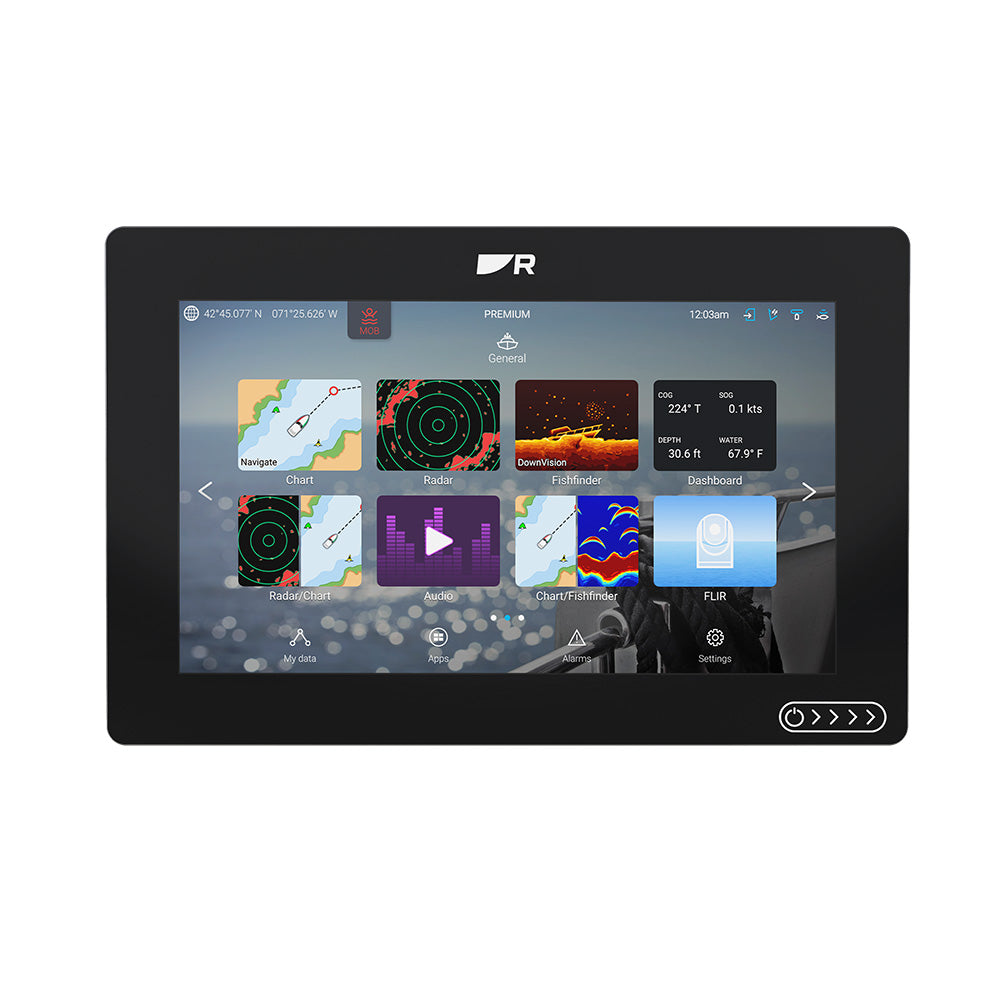

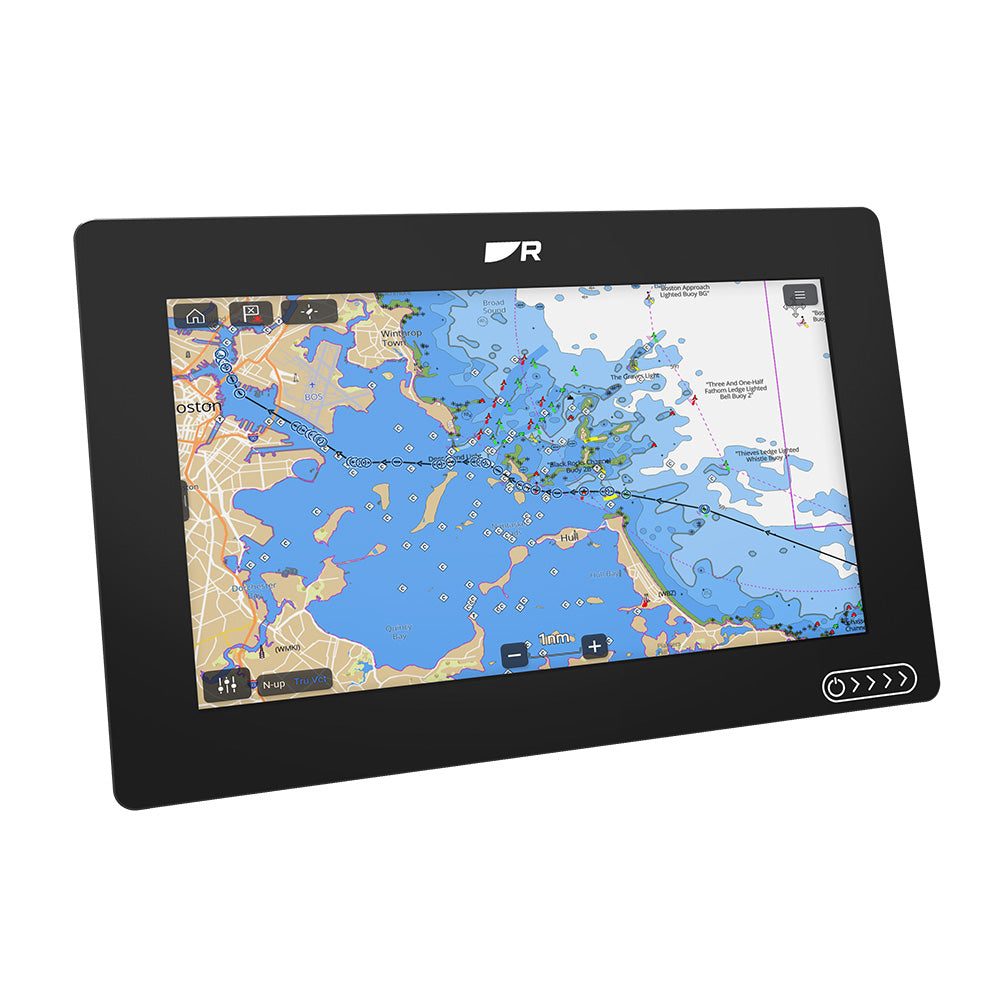

Raymarine Axiom 2 9" Multifunction Display w/Lighthouse North America Chart

The Raymarine Axiom 2 9-inch Multifunction Display is a chartplotter and marine display for sailors, anglers, cruisers, and motor-yacht owners. This model includes a LightHouse North America Chart and combines touchscreen navigation, internal GNSS, networking, and onboard storage in a marine-ready unit.

• Display: 9-inch diagonal IPS touchscreen with HD 1280 x 720 resolution
• Brightness: 1500 cd/m² with HydroTough oleophobic protective coating
• Processor: 6-core processor
• Operating system: LightHouse OS with access to more than 30 LightHouse apps
• Included chart: LightHouse North America Chart
• Storage: 64 GByte solid-state internal storage
• External storage: 1 MicroSDXC card slot
• GNSS: Internal GPS, GLONASS, and BeiDou receiver with SBAS, cold start under 2 minutes, and 10 Hz refresh rate
• Networking: 1 RayNet 10/100/1000 Mbit/sec Ethernet connection, 802.11 b/g/n WiFi, and Bluetooth v4.0
• NMEA connection: 1 DeviceNet male connector on power cable with LEN rating 1
• Voltage: Nominal 12 V DC, operating range 8 to 16 V DC
• Power consumption: 8.95 W maximum
• Fuse or breaker: 7A inline fuse or thermal breaker rating
• Trunnion mounted dimensions: 10.43 inches W x 7.39 inches H x 7.01 inches D
• Surface or flush mounted dimensions: 9.61 inches W x 6.21 inches H x 7.01 inches D
• Integration: Supports radar, cameras, sonar, accessory devices, engine integration, NMEA 2000, and digital switching
• Warranty: 3-year warranty
