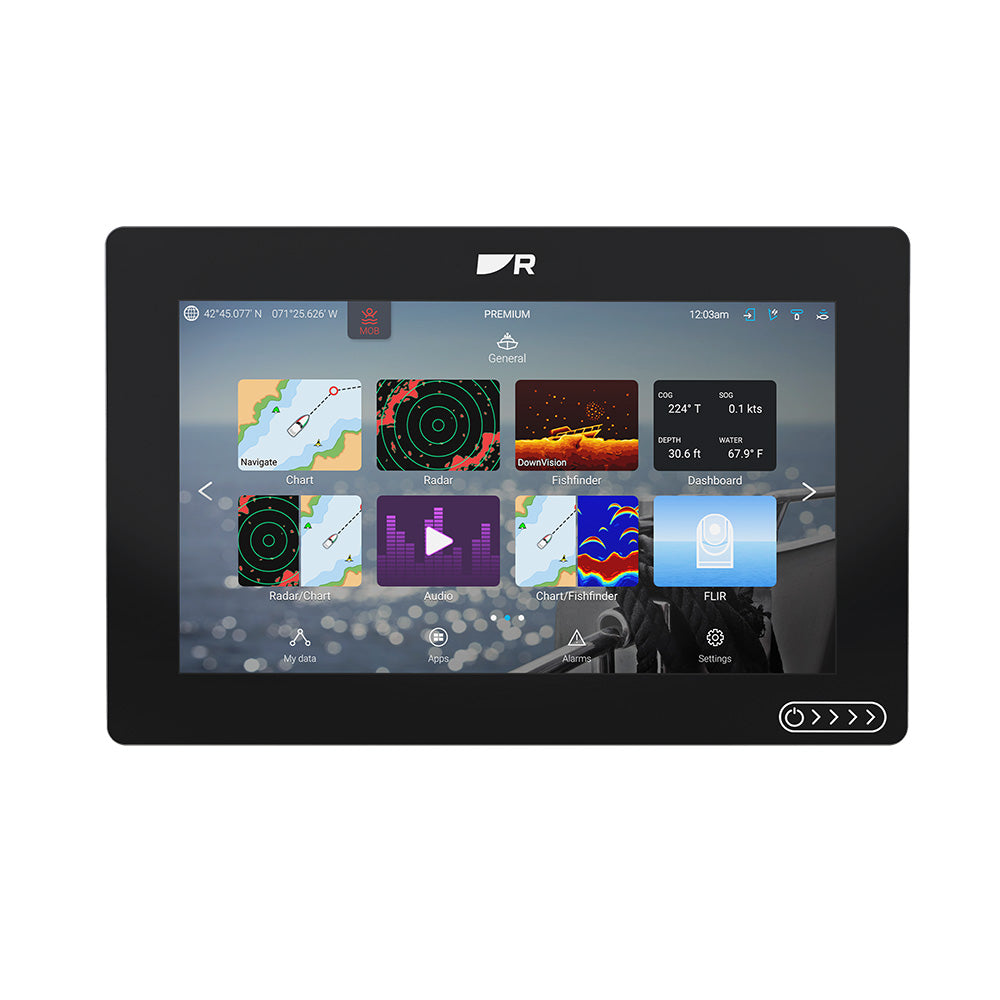

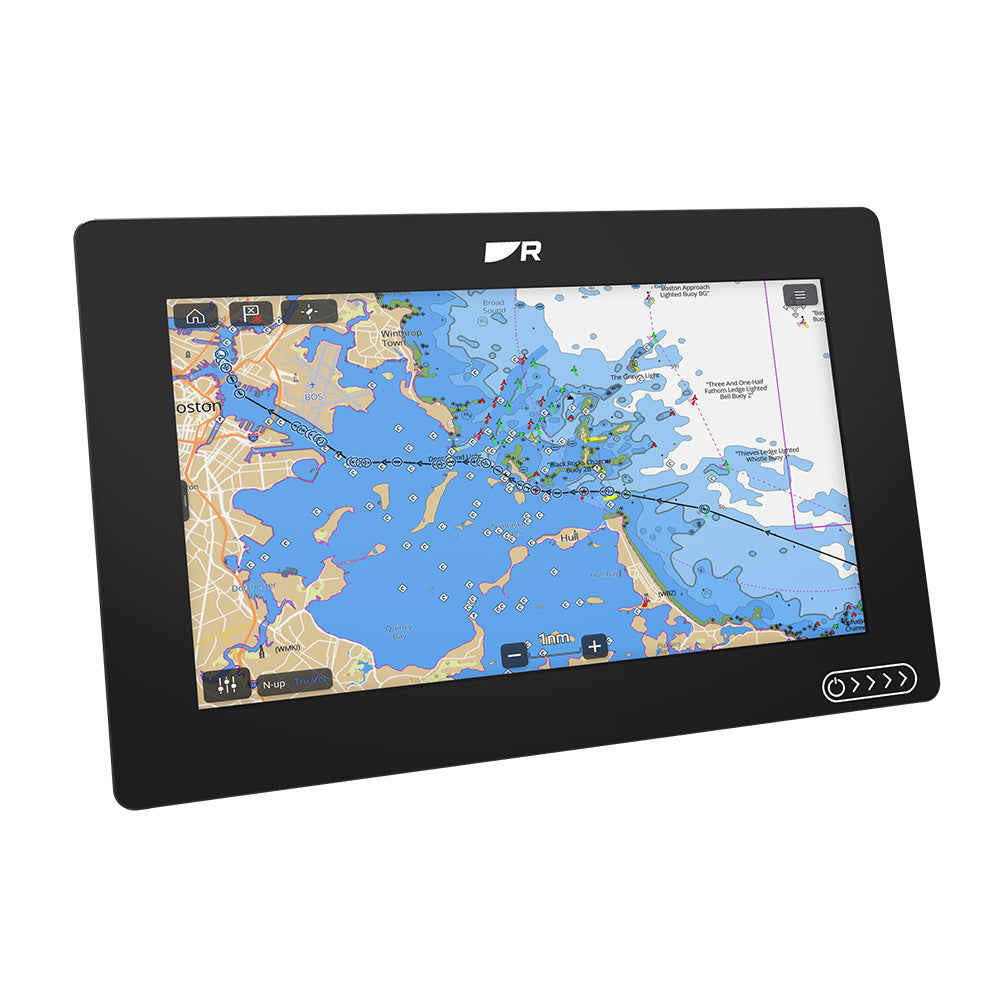

Raymarine Axiom 2 9" Multifunction Display

The Raymarine Axiom 2 9-inch Multifunction Display is a marine chartplotter display for sailors, anglers, cruisers, and motor-yacht owners. It combines a 6-core processor, LightHouse OS, a HydroTough IPS touchscreen, onboard storage, and network connections for navigation and onboard integration.

• Display: 9-inch diagonal IPS touchscreen
• Resolution: HD 1280 x 720
• Brightness: 1500 cd/m²
• Protective coating: HydroTough oleophobic coating
• Processor: 6-core
• Operating system: LightHouse OS with access to over 30 LightHouse apps
• Internal storage: 64 GByte solid state
• External storage: 1x MicroSDXC card slot
• Charts: Compatible with LightHouse Charts Gen 2, Navionics, C-MAP, and more
• GNSS: Internal GPS, GLONASS, and BeiDou receiver including SBAS, cold start under 2 minutes, 10 Hz refresh rate
• Networking: 1x RayNet 10/100/1000 Mbit/sec Ethernet, 802.11 b/g/n WiFi, Bluetooth v4.0
• NMEA 2000 / DeviceNet: 1x DeviceNet male connector on power cable, LEN rating 1
• Voltage: 12 V DC nominal, 8 to 16 V DC operating range
• Power consumption: 8.95W maximum
• Fuse / breaker rating: 7A inline fuse or thermal breaker
• Trunnion mounted dimensions: 10.43 in W x 7.39 in H x 7.01 in D
• Surface / flush mounted dimensions: 9.61 in W x 6.21 in H x 7.01 in D
• Integration: Supports radar, cameras, sonar, accessory devices, engine integration, NMEA 2000, and digital switching
• Warranty: 3 years
