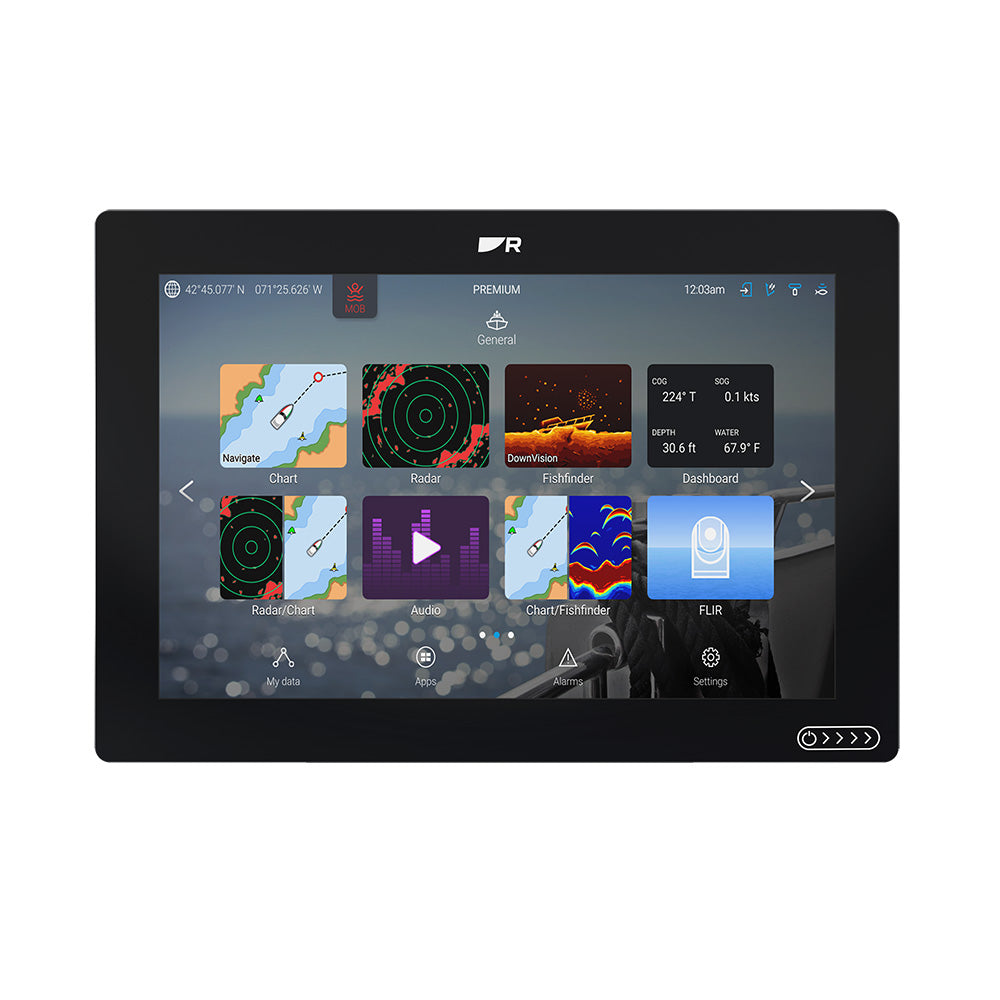

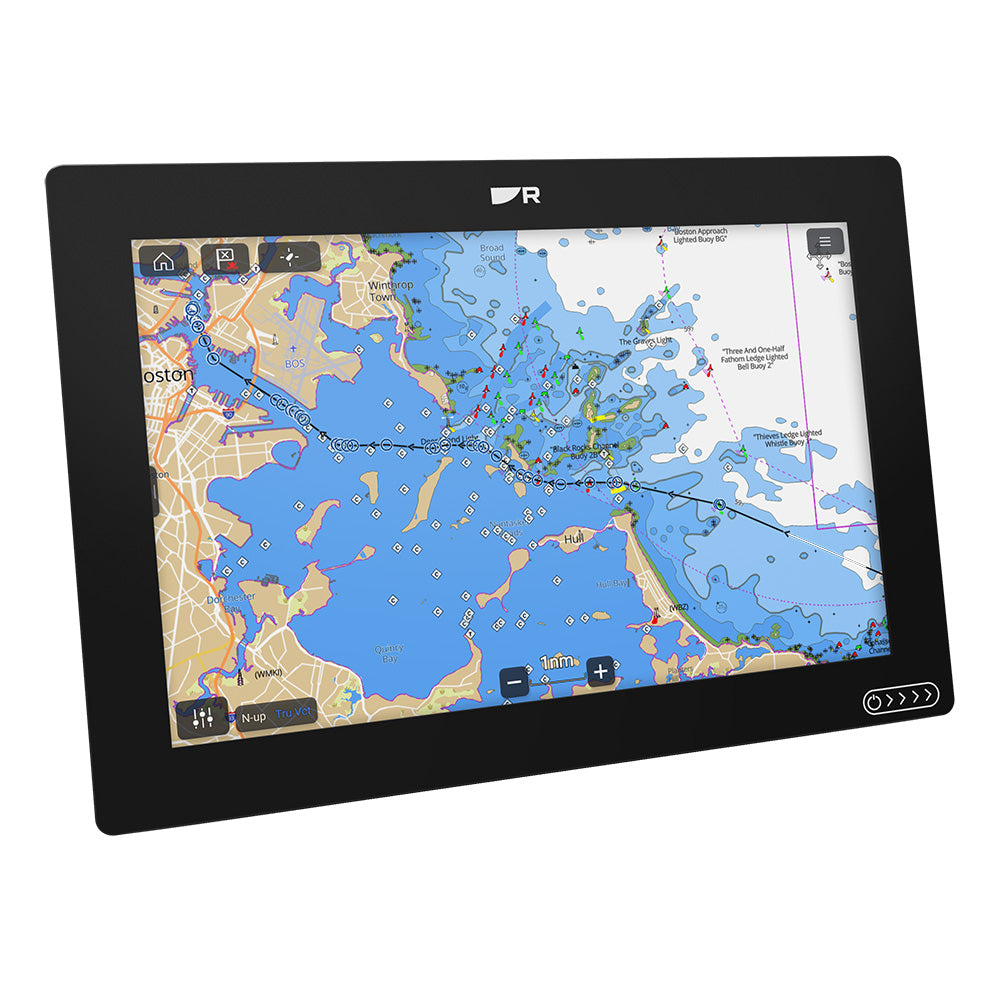

Raymarine Axiom 2 12" Multifunction Display w/Lighthouse North America Chart
Raymarine Axiom 2 12" Multifunction Display w/Lighthouse North America Chart
SKU:OM-RAYMARINE-AXIOM212-E7072400102
Low stock: 1 left
Couldn't load pickup availability
Frequently bought together
FREE U.S. shipping on every item
Overview
For boaters navigating North American waters, this Raymarine Axiom 2 12-inch multifunction display package includes a LightHouse North America chart. Its touchscreen brings chart navigation, apps and supported vessel systems together for sailing, fishing and cruising.
Key features
- The included North America chart pairs regional chart content with the display.
- Six-core processing reduces startup and chart-rendering time while keeping networking and video responsive.
- A high-brightness IPS touchscreen with HydroTough™ coating supports use at the helm throughout the day.
- RayNet connectivity lets supported radar, cameras, sonar and accessories share the display.
- Integrated GNSS supplies position updates at 10 Hz to support navigation.
- LightHouse OS provides access to more than 30 apps, alongside support for engine integration and digital switching.
Specifications
- Brand: Raymarine
- Model: Axiom 2 12-inch
- Included chart: LightHouse North America
- Screen: 12.1-inch diagonal IPS touchscreen
- Screen resolution: WXGA, 1280 x 800
- Luminance: 1800 cd/m²
- Protective coating: HydroTough™ oleophobic
- Processor: 6-core
- Operating system: LightHouse OS
- Dimensions with trunnion mount: 12.36 x 8.93 x 7.01 inches (W x H x D)
- Dimensions with surface/flush mount: 12.36 x 8.54 x 7.01 inches (W x H x D)
- Nominal voltage: 12 V DC
- Operating supply range: 8–16 V DC
- Maximum power draw: 15.48 W
- Inline fuse/thermal breaker: 7 A
- NMEA 2000 interface: 1 DeviceNet male connector on power cable; LEN 1
- Ethernet: 1 RayNet connection, 10/100/1000 Mbit/sec
- Wireless network: Wi-Fi 802.11 b/g/n
- Bluetooth version: 4.0
- Internal GNSS receiver: GPS, GLONASS and BeiDou, including SBAS
- Position refresh rate: 10 Hz
- GNSS cold-start time: Less than 2 minutes
- Built-in storage: 64 GByte solid state
- Memory card slot: 1 MicroSDXC
- Warranty: 3 years
Good to know
In addition to the included North America chart, the display supports chart options from LightHouse Charts Gen 2, Navionics and C-MAP.
Specifications
| Cartography Brand | Navionics/C-Map |
|---|---|
| Screen Size | 12" |
| Touchscreen | Yes |
| Brand | Raymarine |
| Manufacturer part # | E70724-00-102 |
| Boxed dimensions | 16 x 13 x 8 in |
| Shipping weight | 11.75 lb |
