• Raymarine Axiom 2 12" Multifunction Display
  • 113557
1 2

Raymarine

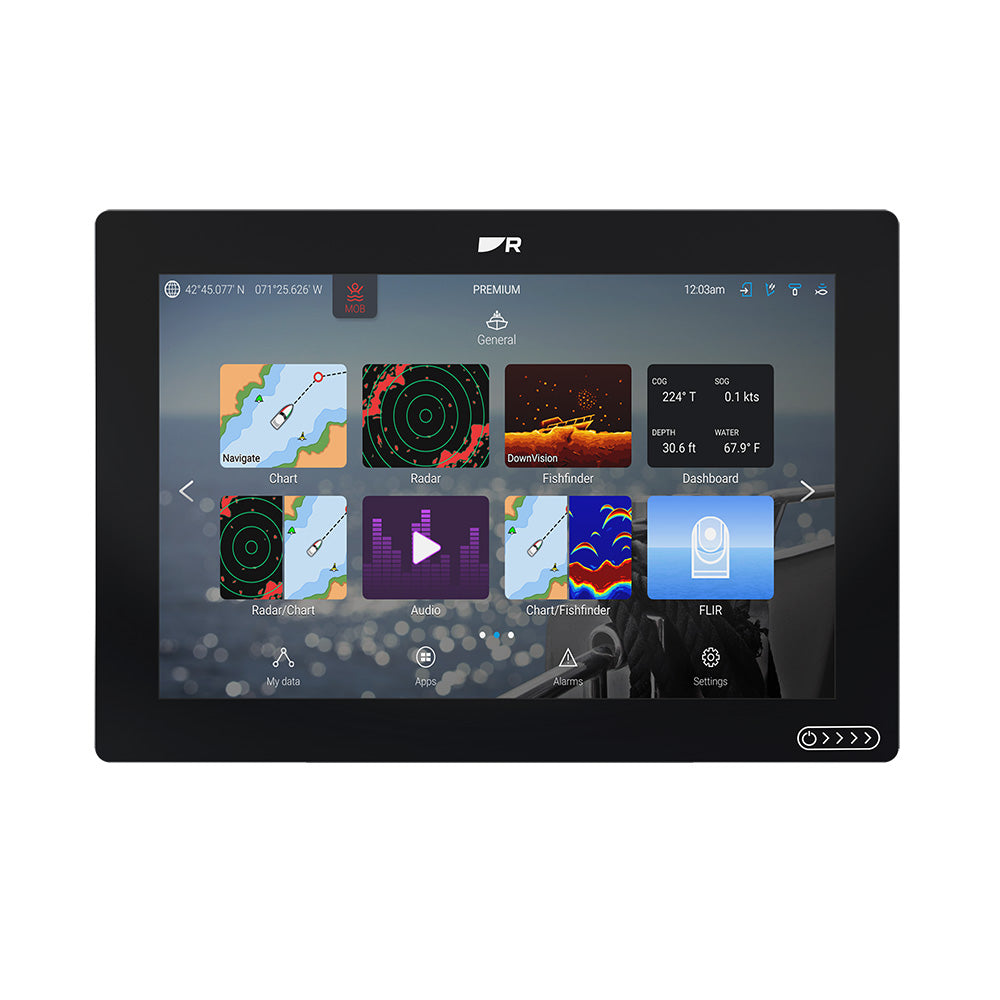

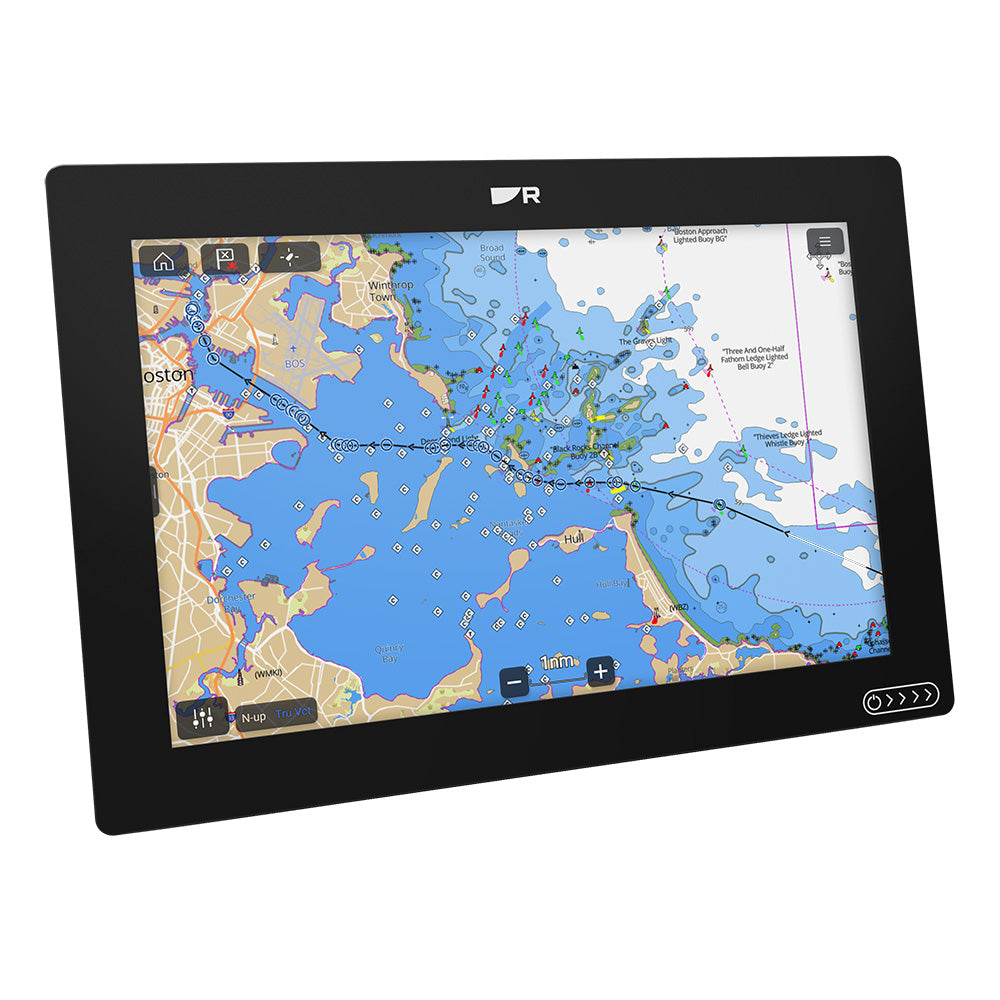

Raymarine Axiom 2 12" Multifunction Display

Raymarine Axiom 2 12" Multifunction Display

OM-RAYMARINE-AXIOM212-E70724

$2,999.99
$2,999.99
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Raymarine Authorized Reseller
Authorized Raymarine ResellerGenuine Raymarine product with full U.S. manufacturer warranty.
Free standard shipping · every U.S. order, no minimum
Authorized Raymarine Reseller
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

Navionics/C-MapCartography Brand
12"Screen Size
YesTouchscreen

Bring chart navigation and connected vessel functions to the helm with the Raymarine Axiom 2 12-inch multifunction display. Sailors, anglers and cruising boaters can use its LightHouse OS touchscreen interface to access charts, apps and supported onboard equipment.

Key features

  • A six-core processor speeds chart rendering and startup while supporting smooth network and video operation.
  • A bright IPS touchscreen with HydroTough™ coating supports viewing and operation in marine conditions.
  • RayNet Gigabit Ethernet connects supported radar, sonar, cameras and accessories.
  • Built-in GNSS updates your position 10 times per second for navigation.
  • Engine integration, NMEA 2000 and digital switching support bring vessel monitoring and control to the display.
  • Onboard storage holds charts, apps, video and user data, with access to more than 30 LightHouse apps.

Specifications

  • Brand: Raymarine
  • Model: Axiom 2 12-inch
  • Display: 12.1-inch diagonal IPS touchscreen
  • Resolution: WXGA, 1280 x 800
  • Luminance: 1800 cd/m²
  • Display coating: HydroTough™ oleophobic
  • Processor: 6-core
  • Operating system: LightHouse OS
  • Trunnion-mounted dimensions: 12.36 x 8.93 x 7.01 inches (W x H x D)
  • Surface/flush-mounted dimensions: 12.36 x 8.54 x 7.01 inches (W x H x D)
  • Nominal supply: 12 V DC
  • Operating voltage: 8–16 V DC
  • Maximum power consumption: 15.48 W
  • Inline fuse/thermal breaker rating: 7 A
  • NMEA 2000 connection: 1 DeviceNet male connector on power cable; LEN 1
  • Wired network: 1 RayNet port, 10/100/1000 Mbit/sec Ethernet
  • Wi-Fi: 802.11 b/g/n
  • Bluetooth: v4.0
  • Internal GNSS: GPS, GLONASS and BeiDou, including SBAS
  • GNSS refresh rate: 10 Hz
  • GNSS cold start: Less than 2 minutes
  • Internal storage: 64 GByte solid state
  • External storage: 1 MicroSDXC card slot
  • Warranty: 3 years

Good to know

Supported chart options include LightHouse Charts Gen 2, Navionics and C-MAP.

Specifications

Cartography BrandNavionics/C-Map
Screen Size12"
TouchscreenYes
BrandRaymarine
Manufacturer part #E70724
UPC723193867358
Boxed dimensions16 x 13 x 8 in
Shipping weight11.7 lb

Manuals & documents

Product brochurePDF ↓
