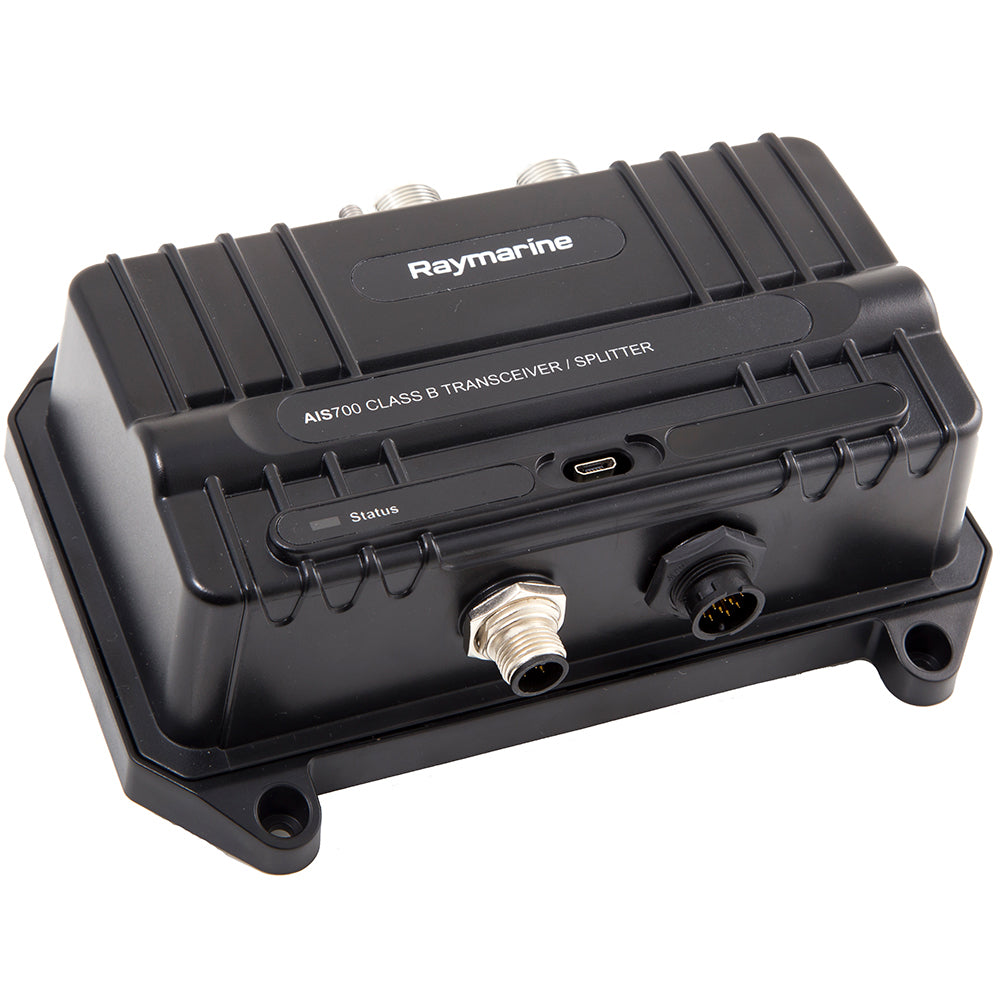

Raymarine AIS700 Class B AIS Transceiver w/Antenna Splitter

The Raymarine AIS700 is a Class B AIS transceiver for adding AIS receive and transmit capability to a compatible marine electronics system. It is intended for use with Raymarine multifunction navigation displays and can show AIS contacts on supported displays, chartplotters, radar displays, and select instruments.

This unit includes an integrated VHF-band antenna splitter, allowing it to share one antenna with an existing VHF radio. It also includes an internal 72-channel GPS receiver with an external antenna and supports Silent Mode when temporary transmit restriction is needed.

• Product type: Class B AIS transceiver
• Technology: SO-TDMA, Self Organized Time Division Multiple Access
• AIS function: Receives other vessels' AIS data and transmits your vessel information
• Displayed AIS data may include: Vessel name, identification, course, and speed
• Display compatibility: Raymarine multifunction displays, chartplotters, radar displays, and select instruments
• Antenna splitter: Built-in VHF-band splitter for sharing a single antenna with a VHF radio
• GPS: Internal dedicated 72-channel GPS receiver with external antenna
• Silent Mode: Hardware and software-enabled transmit restriction while continuing to receive AIS traffic
• Networking: NMEA 2000 support
• Legacy connection support: Built-in NMEA 0183 multiplexer
• Installation note: Compact design for mounting inside a helm, service locker, or other out-of-the-way location
• US programming requirement: FCC rules require units sold in the US to be programmed by a qualified technician
• Required programming documentation: MMSI registration or FCC Ship Station License plus vessel master or owner signature on the completed programming form
