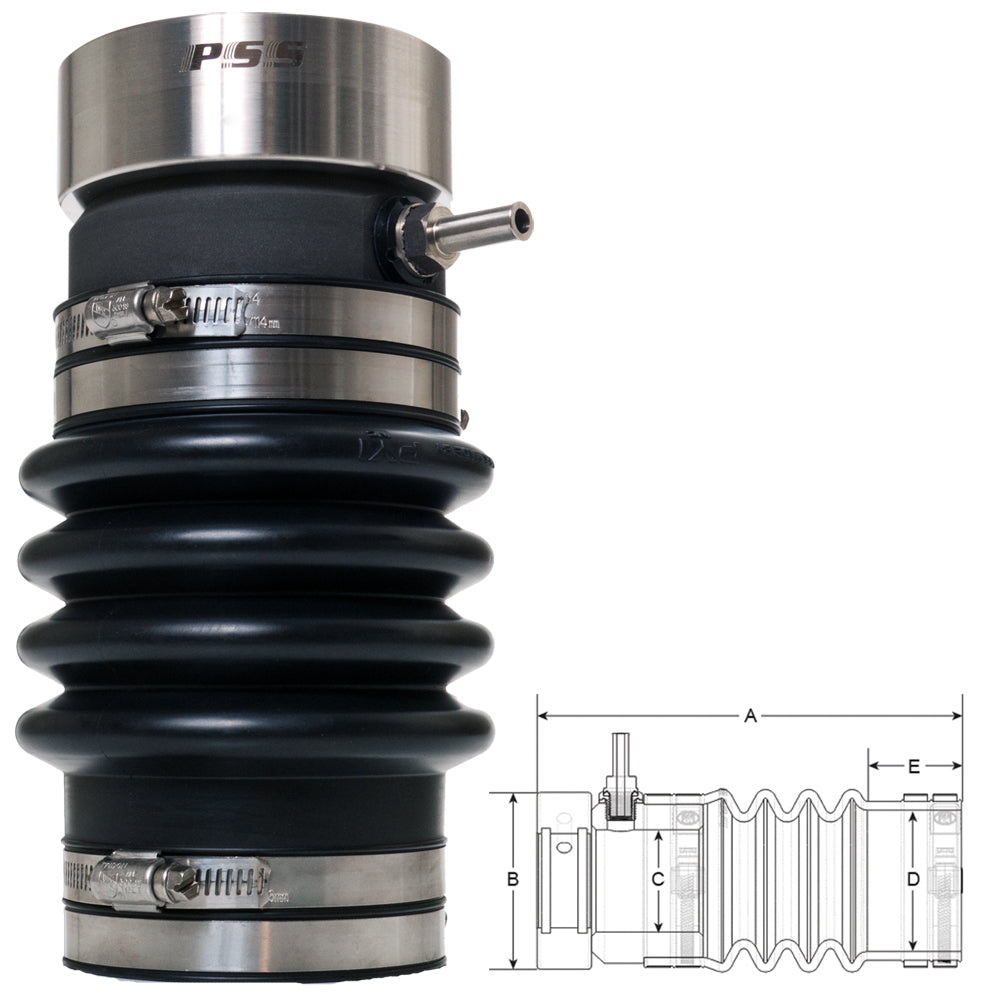

• PSS Shaft Seal 1-½" Shaft 2-½" Tube
1 1

PSS Shaft Seal

PSS Shaft Seal 1-½" Shaft 2-½" Tube

PSS Shaft Seal 1-½" Shaft 2-½" Tube

OM-PSSSHAFTSEAL-12TUBE-02112212

$490.40
$613.00 $490.40
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Seal a boat's 1-1/2-inch propeller shaft with this PSS Shaft Seal, sized for stern tubes from 2-1/2 to 2-5/8 inches in diameter. A rotating stainless steel rotor meets a stationary carbon flange to form the mechanical face seal, helping keep water out of the bilge.

Key features

  • A mechanical face seal avoids the ongoing adjustment associated with traditional packing glands.
  • Preloaded bellows keep the sealing faces in contact while accommodating propeller thrust.
  • The carbon flange floats around the shaft to accommodate most misalignment and vibration.
  • Two recessed O-rings seal the rotor to the shaft and rotate with it, avoiding wear during operation.
  • Retrofit suitability allows installation as a replacement for an existing shaft seal.

Specifications

  • Brand: PSS Shaft Seal
  • Seal type: Mechanical face seal
  • Shaft diameter: 1-1/2 inches
  • Stern tube diameter: 2-1/2 to 2-5/8 inches
  • Total length: 9.175 inches
  • Compressed total length: 8.175 inches
  • Rotor diameter: 3.75 inches
  • Carbon cuff diameter: 3.25 inches
  • Stern cuff length: 2 inches
  • Rotor material: Stainless steel
  • Stationary flange material: Carbon
  • Certifications: Bureau Veritas, ABS and Rina

Good to know

Inspect the bellows regularly for wear, aging and chemical deterioration. PYI recommends replacing the bellows every six years as preventive maintenance, along with the rotor's O-rings and set screws when the bellows are replaced.

Specifications

BrandPSS Shaft Seal
Manufacturer part #02-112-212
UPC839662007054
Boxed dimensions12 x 7 x 6 in
Shipping weight5.7 lb
Country of originUNITED STATES
