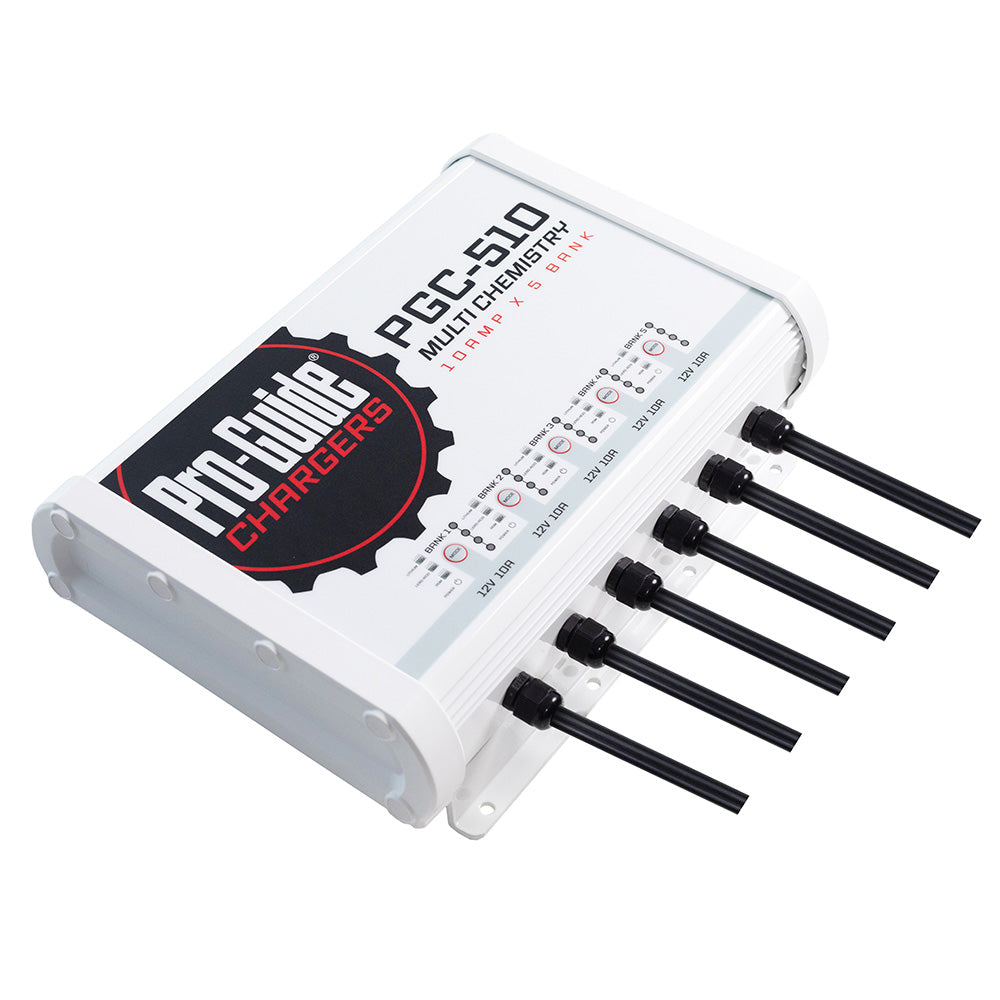

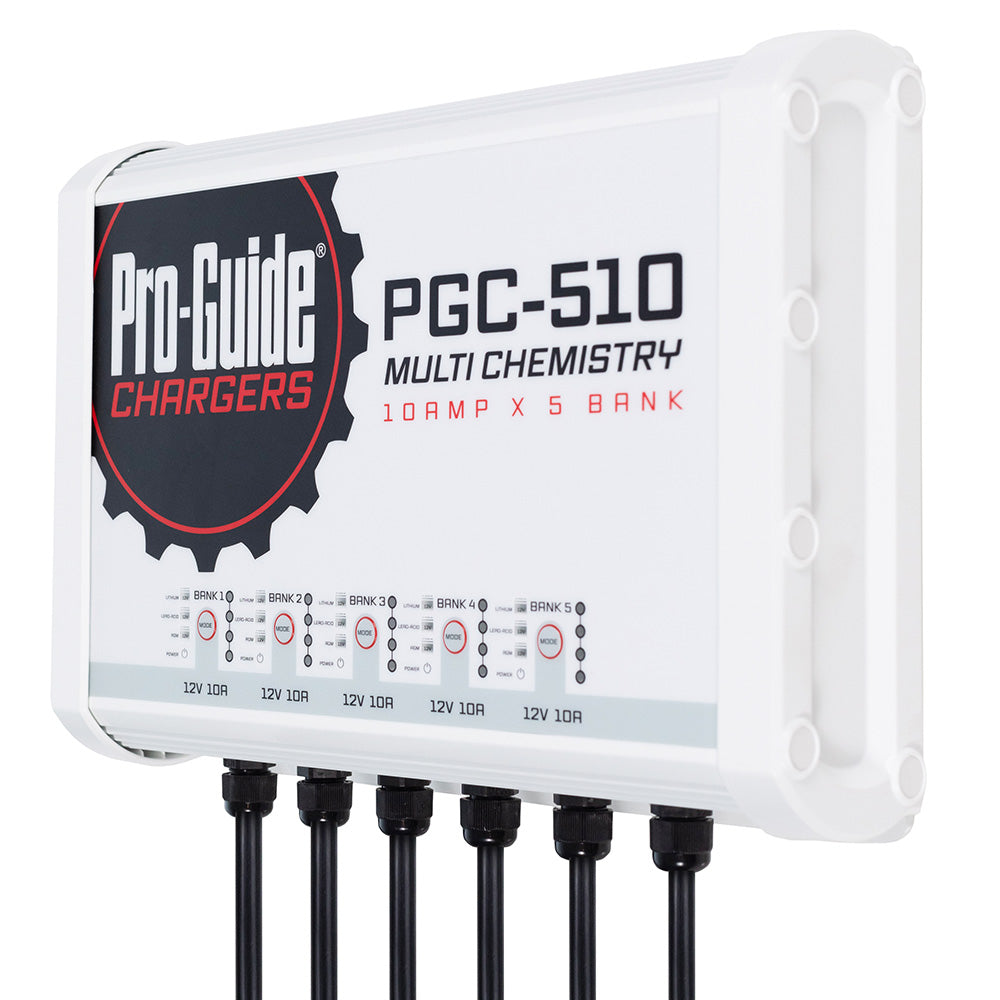

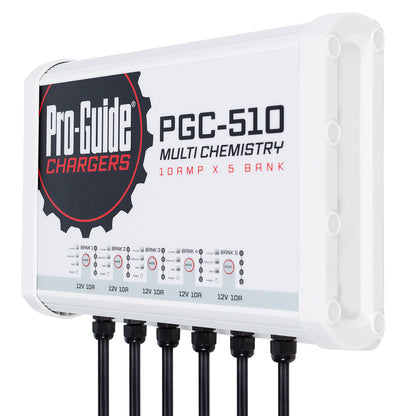

Pro-Guide 5 Bank On-Board Battery Charger - 12V - 40-Amp

The Pro-Guide PGC-510 on-board battery charger is a 12V, 5-bank charger for lead-acid, AGM, and lithium batteries. Each bank can use one of three charge profiles, making it useful for mixed battery setups on boats and outdoor equipment.

• Battery compatibility: lead-acid, AGM, and lithium
• Output voltage: DC 12V x 5
• Output current: 10A x 5
• Total output: 40 amps
• Input voltage: AC 110-120V
• Frequency: 60Hz
• Input current: less than 6A
• Maximum output voltage: 14.1-14.3V for lead-acid batteries
• Maximum output voltage: 14.3-14.7V for AGM batteries
• Maximum output voltage: 14.4-14.7V for lithium batteries
• Activation Mode can wake an asleep lithium battery; hold the button for 3-5 seconds for manual Activation Mode
• Protection features: output over-voltage, output over current, output short circuit, output reverse polarity, over temperature
• Designed to remain plugged in year-round
• Intelligent PGC Algorithm checks each battery's state of charge on a set timeline
• Dimensions: 13.15 in. L x 9.96 in. W x 3.86 in. H
• Weight: 24.3 lbs
• IP rating: 68
• Warranty: 2 Year Free and 4 Year Total Warranty
