Pro-Guide Batteries
Pro-Guide 3 Bank On-Board Battery Charger - (1) 12V / (1) 12/16V / (1) 36V - 30-Amp
Pro-Guide 3 Bank On-Board Battery Charger - (1) 12V / (1) 12/16V / (1) 36V - 30-Amp
SKU:OM-PROGUIDEBATT-3BANKON-PGC21236
Low stock: 1 left
Couldn't load pickup availability
Overview

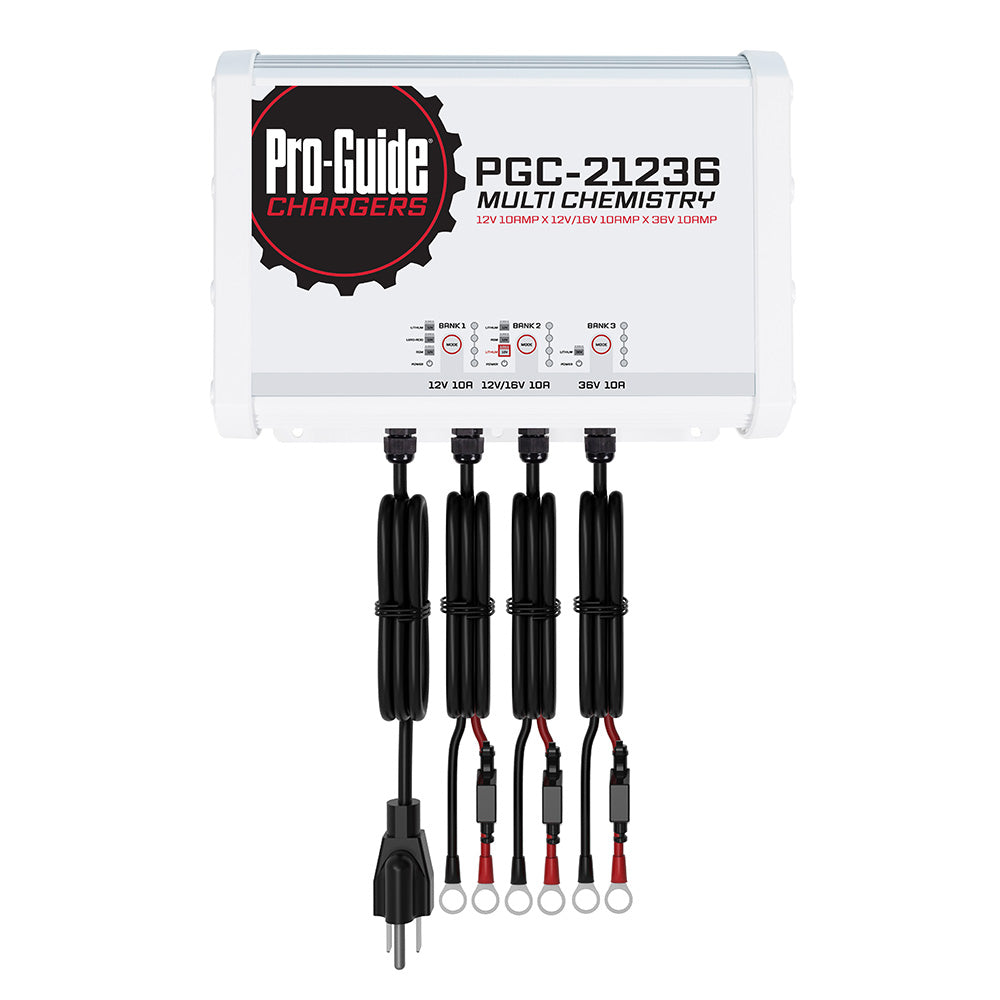

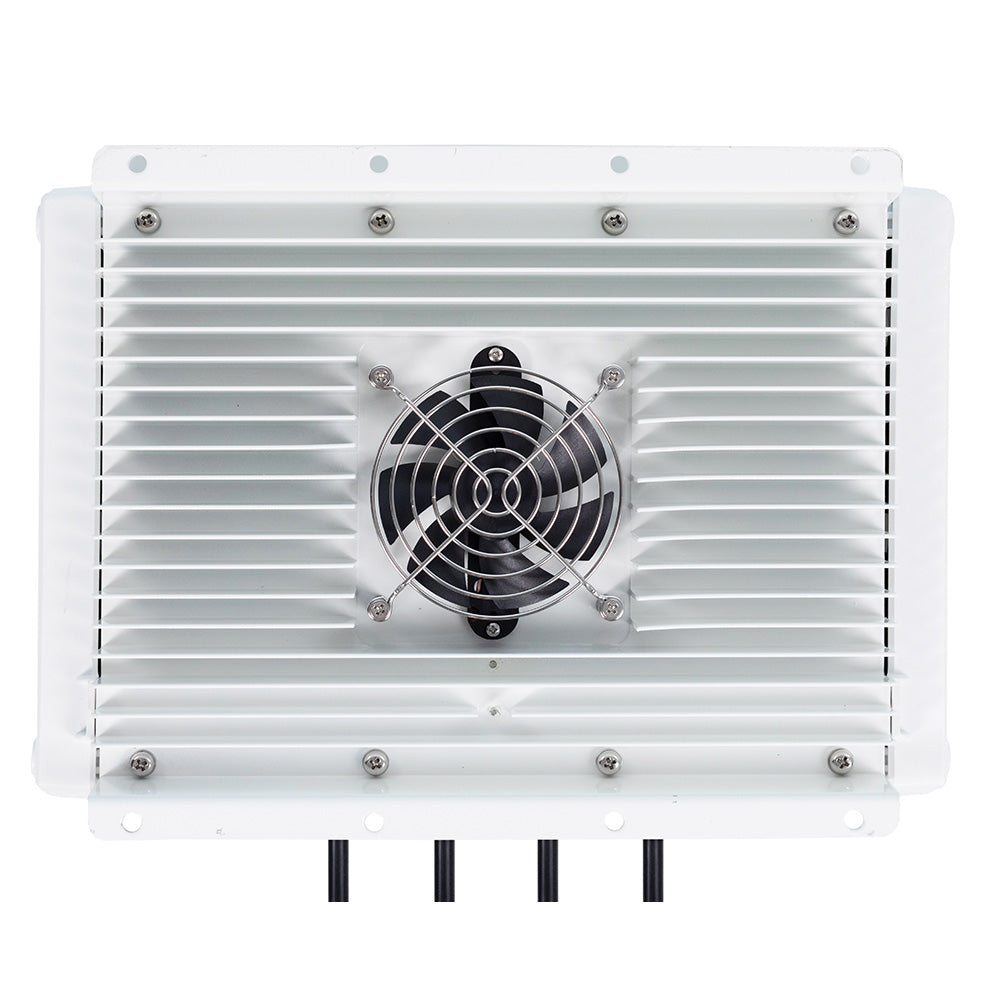

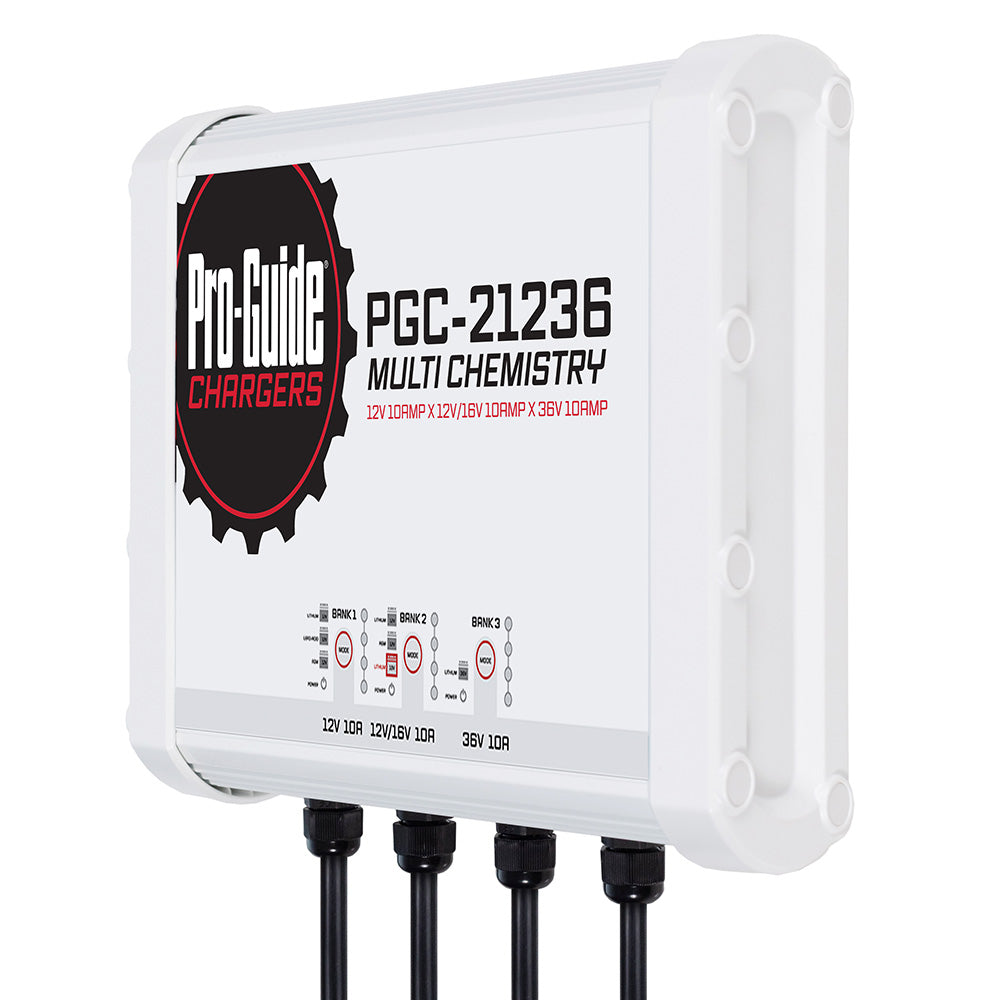

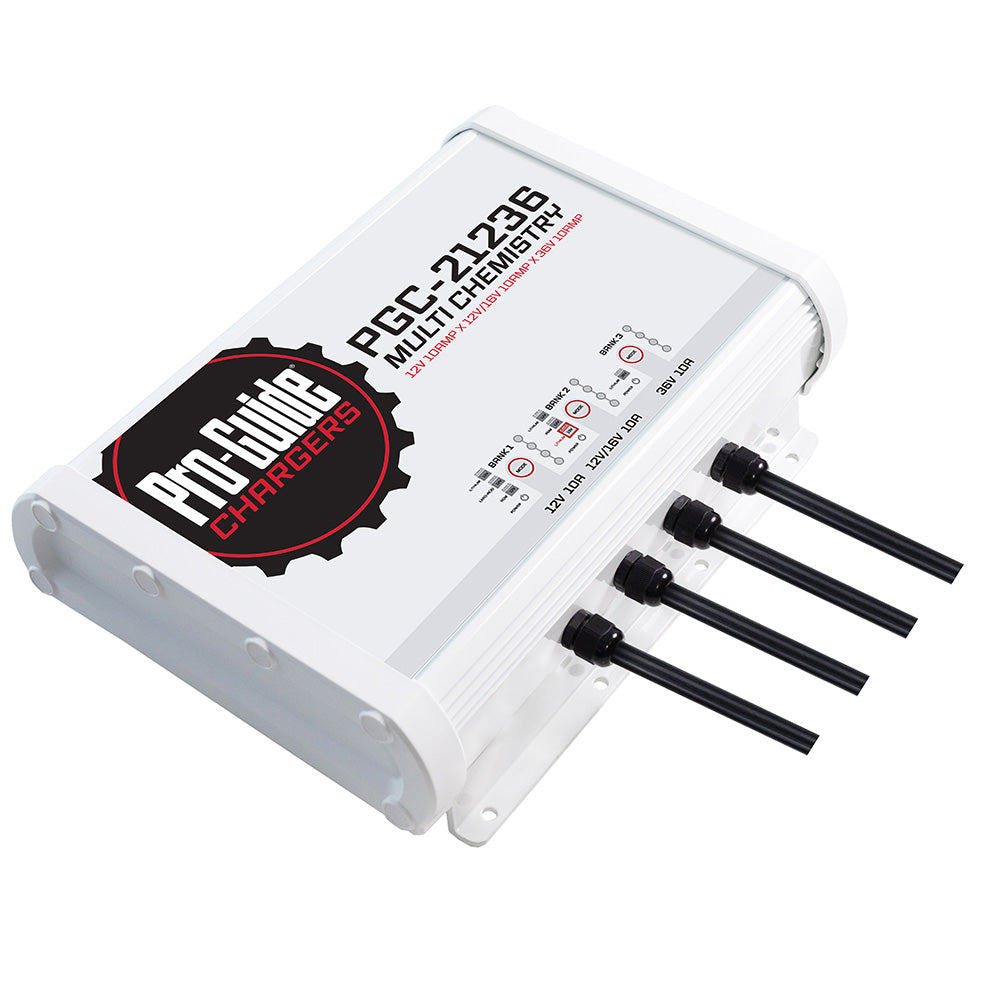

The Pro-Guide Batteries PGC-21236 is a three-bank on-board charger for mixed marine battery systems. It is set up for one 12V bank, one 12/16V bank, and one 36V bank, with selectable charging profiles on the 12V banks.
- Battery support: 12V Lead Acid, AGM, Lithium; 16V Lithium; and 36V Lithium
- Output: DC 12V x 1, DC 12V/16V x 1, and DC 36V x 1
- Output current: 10A for the 12V bank, 10A for the 12/16V bank, and 10A for the 36V bank
- Input: AC 110-120V, 60Hz, less than 6A
- Charge profiles: 12V banks can be selected for Lead Acid, AGM, or Lithium use
- Activation mode: supplies voltage to wake a sleeping Lithium battery, with manual activation by holding the button for 3-5 seconds
- Protection: output over-voltage, output over-current, output short circuit, output reverse polarity, and over-temperature
- Maximum output voltage: 14.1-14.3 for 12V Lead Acid, 14.3-14.7 for 12V AGM, 14.4-14.7 for 12V Lithium, 18-18.3 for 16V Lithium, and 43-44 for 36V Lithium
- Dimensions: 14.7" L x 9.96" W x 3.86" H
- Weight: 24.7 lbs
- IP rating: 68
- Warranty: 2 Year Free and 4 Year Total Warranty
Specifications
| Brand | Pro-Guide Batteries |
|---|---|
| Manufacturer part # | PGC-21236 |
| UPC | 810145911266 |
| Boxed dimensions | 18 x 13 x 8 in |
| Shipping weight | 25.0 lb |
