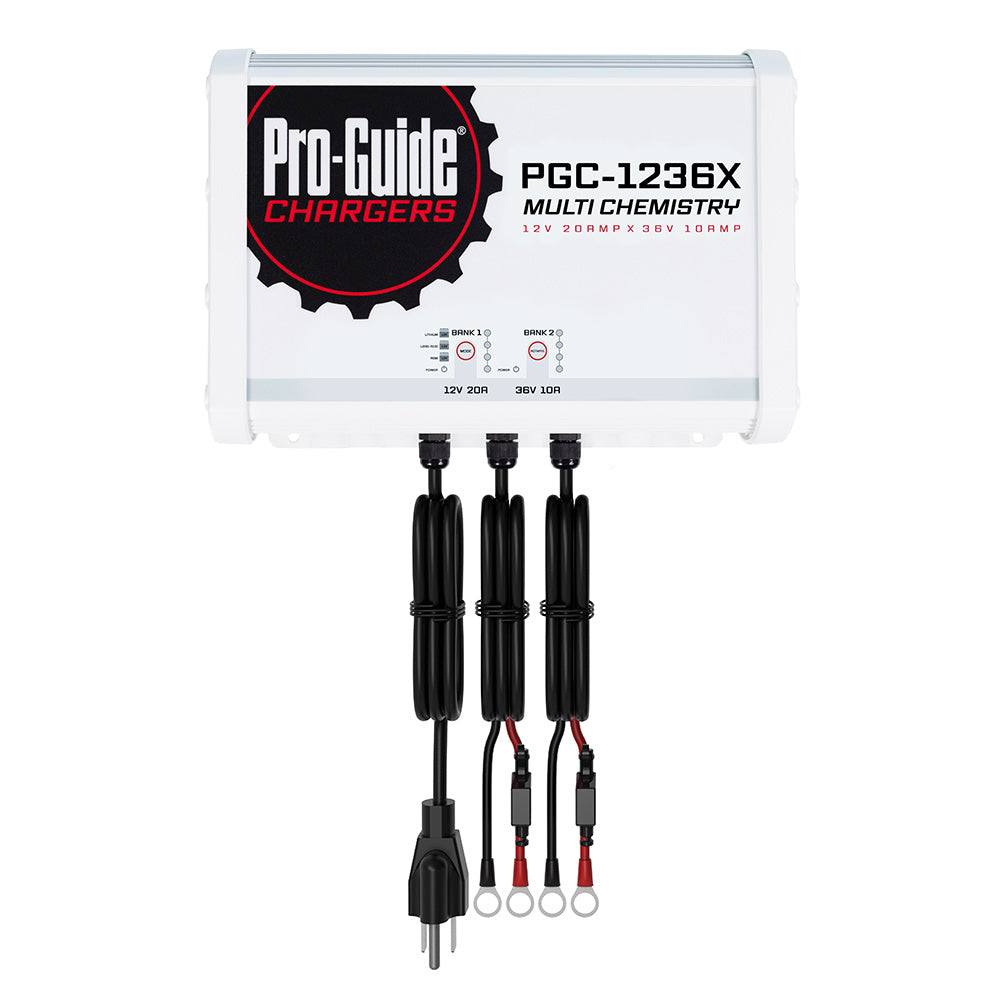

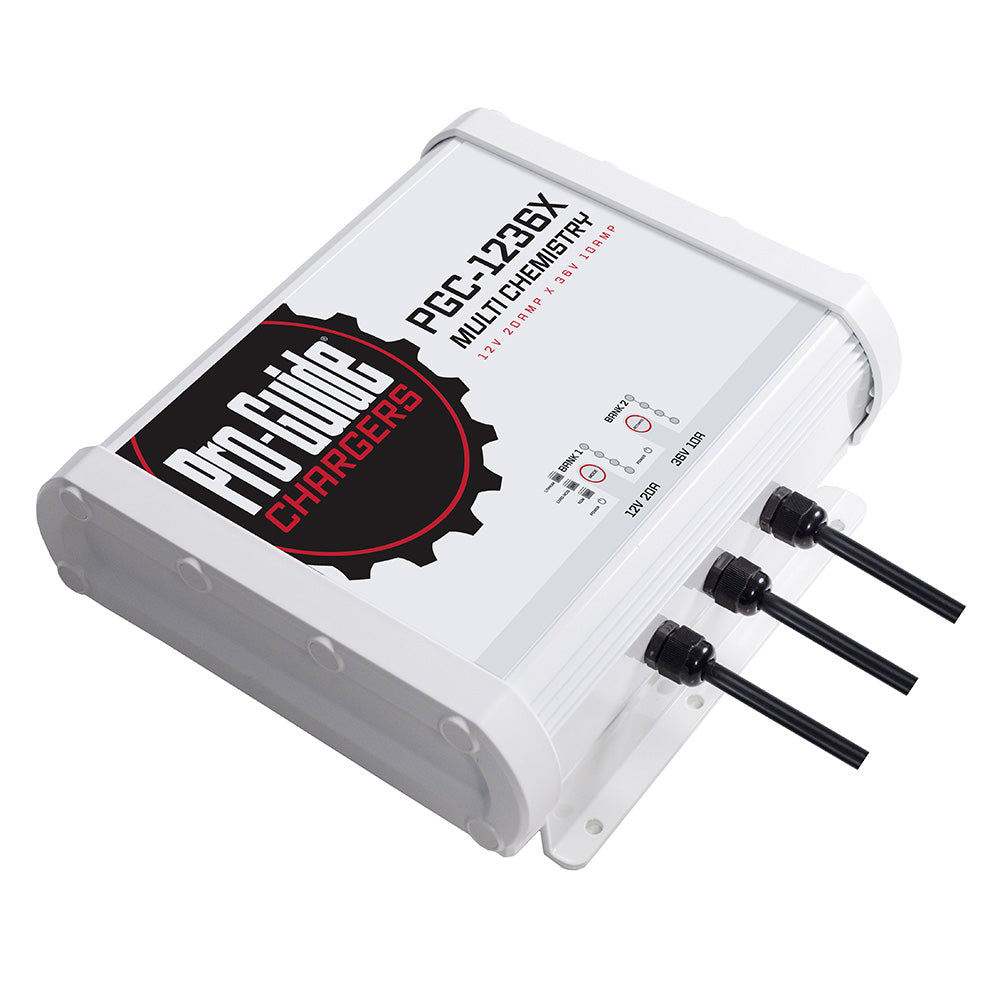

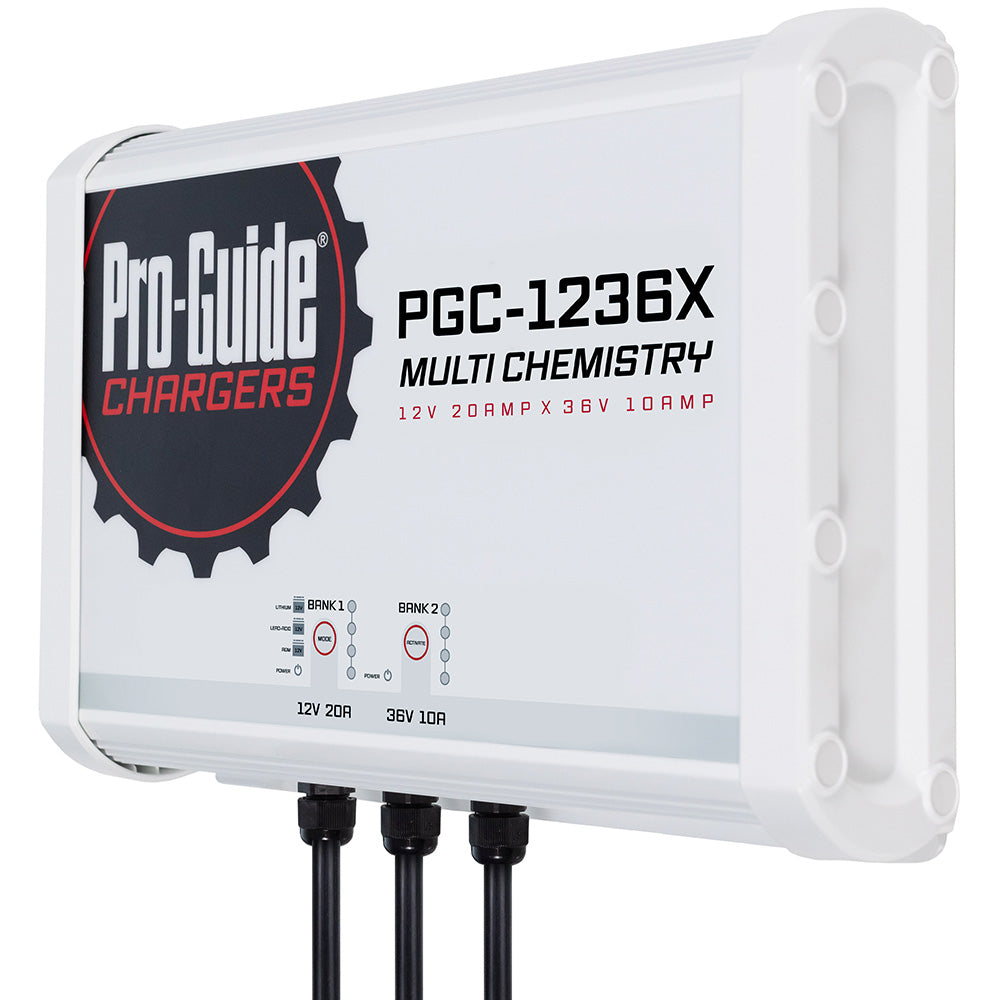

Pro-Guide 2 Bank On-Board Battery Charger - (1) 12V / (1) 36V - 30-Amp
Pro-Guide 2 Bank On-Board Battery Charger - (1) 12V / (1) 36V - 30-Amp
SKU:OM-PROGUIDEBATT-2BANKON-PGC1236X
Low stock: 1 left
Couldn't load pickup availability
Overview
The Pro-Guide Batteries PGC-1236x is an on-board charger built for boats running one 12V battery bank and one 36V lithium bank. It supports selectable charging profiles on each 12V bank, giving users a way to match the charger to Lead Acid, AGM, or Lithium batteries where specified.
An activation mode can wake a sleeping lithium battery with a brief voltage supply, with manual activation available by holding the button for 3-5 seconds. The PGC line is designed for year-round plug-in use and checks battery state of charge on a set schedule.
- Battery support: 12V Lead Acid, AGM, or Lithium, plus 36V Lithium
- Output: DC 12V x 1 and DC 36V x 1
- Output current: 20A for the 12V bank and 10A for the 36V bank
- Maximum output voltage: 14.1-14.3V Lead Acid, 14.3-14.7V AGM, 14.4-14.7V Lithium, and 43-44V for 36V Lithium
- Input voltage: AC 110-120V
- Frequency: 60Hz
- Input current: less than 6A
- Protections: output over-voltage, output over-current, output short circuit, reverse polarity, and over-temperature
- Dimensions: 13.15 in L x 9.96 in W x 3.86 in H
- Weight: 24.3 lbs
- IP rating: IP68
- Warranty: 2 Year Free and 4 Year Total Warranty
Specifications
| Charger Input - Voltage | 120v |
|---|---|
| Charger Output - Amps | 30a |
| Charger Output Voltage | (1)12v / (1)36v |
| Charging Banks | 2 |
| Portable | No |
| Brand | Pro-Guide Batteries |
| Manufacturer part # | PGC-1236X |
| UPC | 810145911198 |
| Boxed dimensions | 17 x 13 x 8 in |
| Shipping weight | 22.1 lb |
