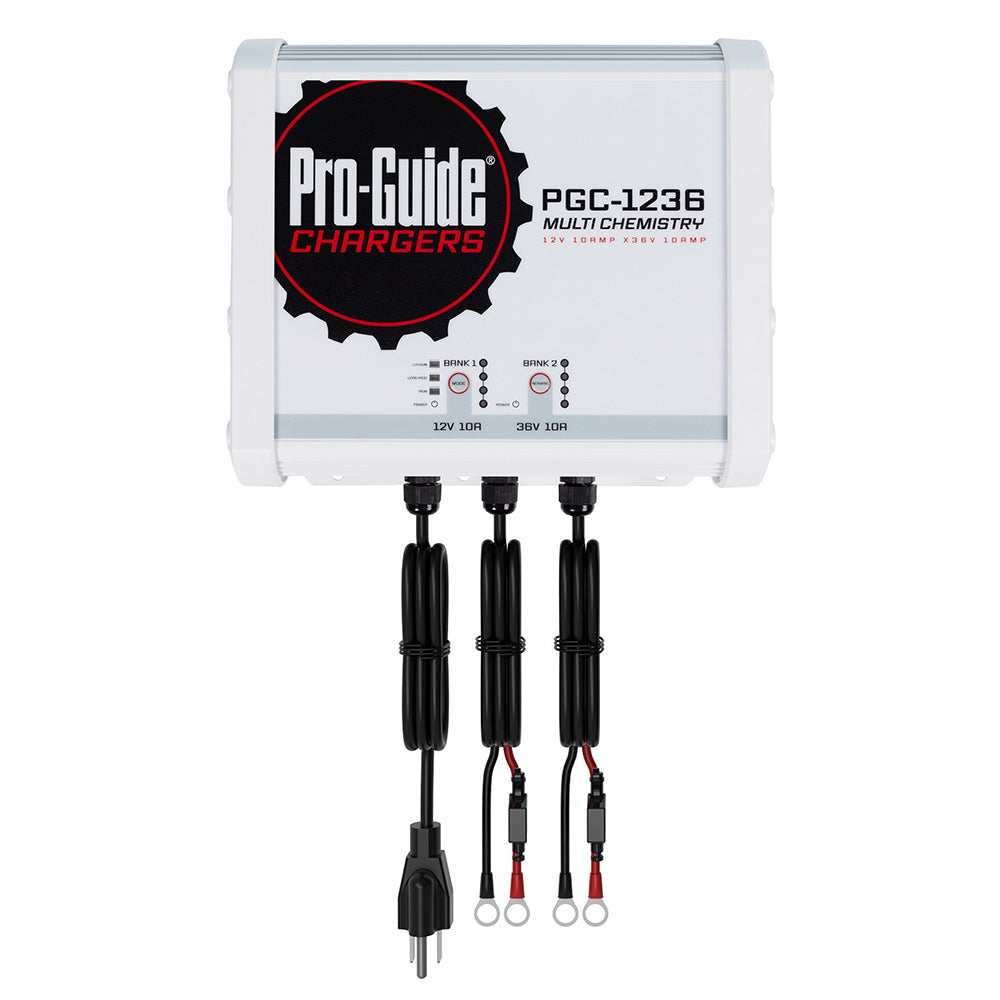

Pro-Guide 2 Bank On-Board Battery Charger - (1) 12V / (1) 36V - 20-Amp

The Pro-Guide Batteries PGC-1236 is a 2-bank on-board charger for setups that need one 12V charging bank and one 36V lithium charging bank. It supports selectable charging profiles on the 12V bank and includes an activation mode for waking a sleeping lithium battery.

• Battery support: 12V lead acid, AGM, lithium, and 36V lithium
• Bank layout: DC 12V x 1 and DC 36V x 1
• Output current: 10A x 2, 20A total
• Input: AC 110-120V, 60Hz, less than 6A
• Max output voltage: 14.1-14.3V for lead acid, 14.3-14.7V for AGM, 14.4-14.7V for lithium, and 43-44V for 36V lithium
• Protection: output over-voltage, output over current, output short circuit, output reverse polarity, over temperature
• Dimensions: 10.47" L x 9.96" W x 3.86" H
• Weight: 17.9 lbs
• IP rating: IP68
• Warranty: 2 year free and 4 year total warranty
