Pro-Guide Batteries

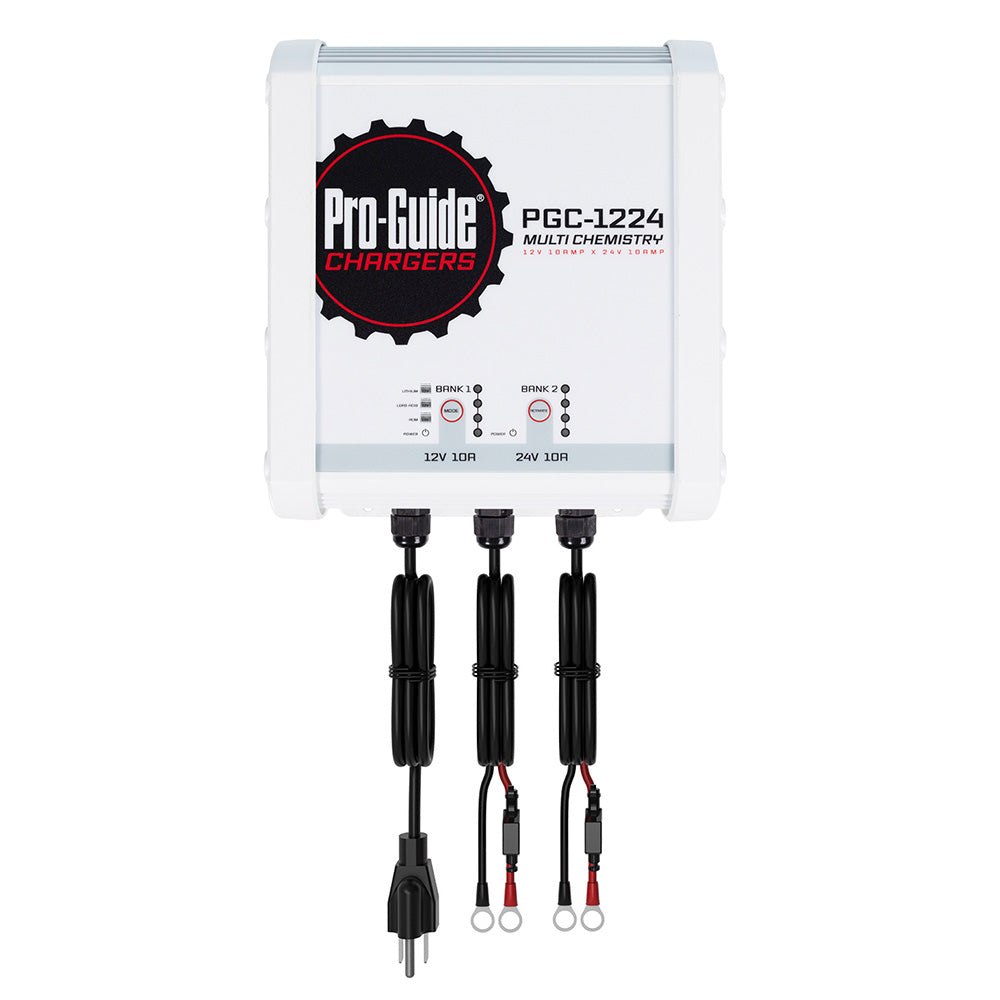

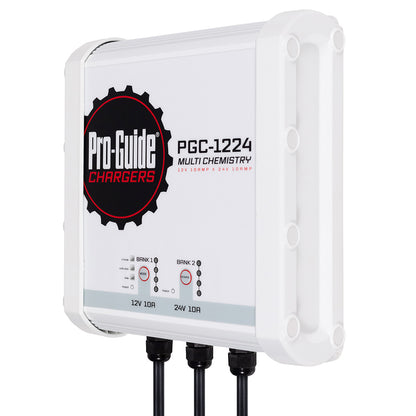

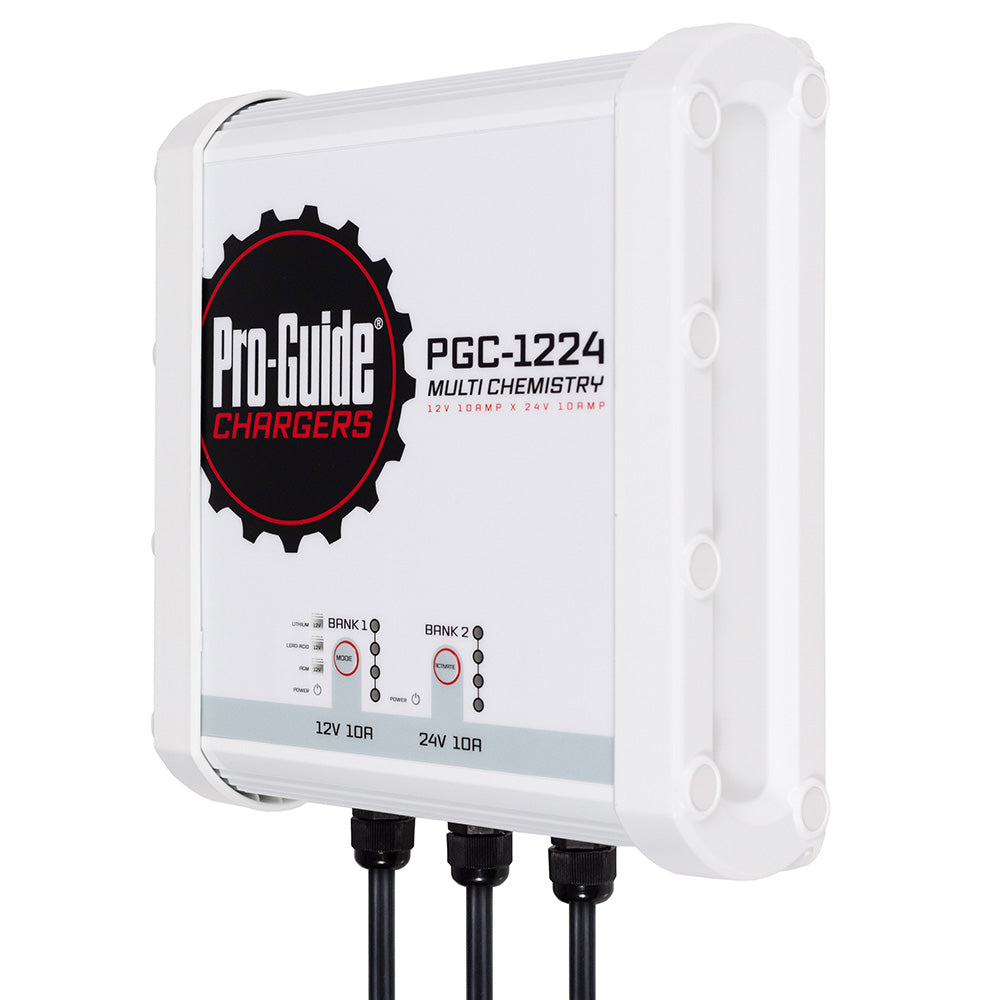

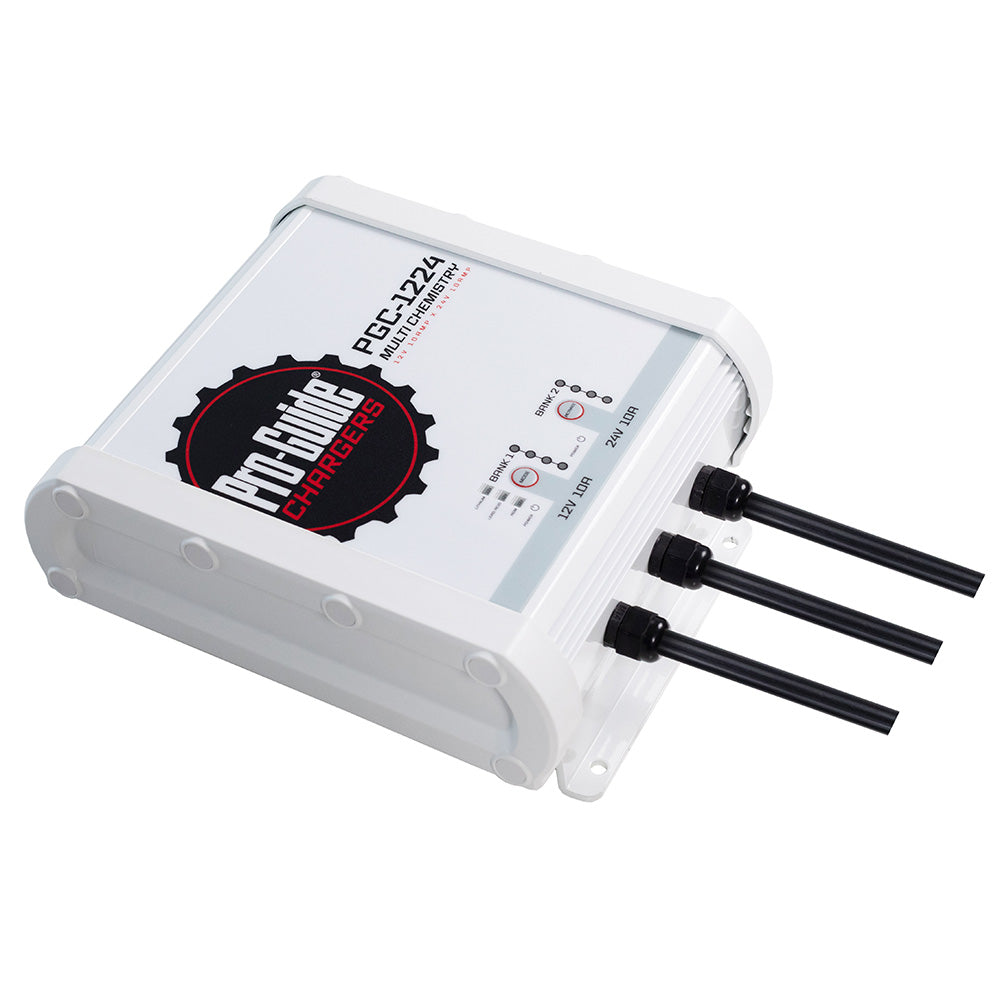

Pro-Guide 2 Bank On-Board Battery Charger - (1) 12V / (1) 24V - 20-Amp
Pro-Guide 2 Bank On-Board Battery Charger - (1) 12V / (1) 24V - 20-Amp
SKU:OM-PROGUIDEBATT-2BANKON-PGC1224
Low stock: 1 left
Couldn't load pickup availability
Overview
The Pro-Guide PGC-1224 is a two-bank on-board charger with one 12V output and one 24V output. It is intended for setups using 12V Lead Acid, AGM, or Lithium batteries along with a 24V Lithium battery bank.
- Model: PGC-1224
- Banks: 2
- Battery support: 12V Lead Acid, AGM, Lithium, and 24V Lithium
- Output voltage: DC 12V x 1 and DC 24V x 1
- Output current: 10A x 2
- Input voltage: AC 110-120V
- Frequency: 60Hz
- Input current: <6A
- Max output voltage: 14.1-14.3 for Lead Acid, 14.3-14.7 for AGM, 14.4-14.7 for Lithium, and 28.8-29.2 for 24V Lithium
- Activation mode: Supplies voltage to wake a sleeping Lithium battery, with manual Activation Mode by holding the button for 3-5 seconds
- Protections: Output over-voltage, output over current, output short circuit, output reverse polarity, over temperature
- Dimensions: 8.19" L x 9.96" W x 3.86" H
- Weight: 14.3 lbs
- IP rating: 68
- Warranty: 2 Year Free and 4 Year Total Warranty
Specifications
| Charger Input - Voltage | 120v |
|---|---|
| Charger Output - Amps | 20a |
| Charger Output Voltage | (1)12v / (1)24v |
| Charging Banks | 2 |
| Portable | No |
| Brand | Pro-Guide Batteries |
| Manufacturer part # | PGC-1224 |
| UPC | 810145910795 |
| Boxed dimensions | 15 x 11 x 8 in |
| Shipping weight | 14.7 lb |
