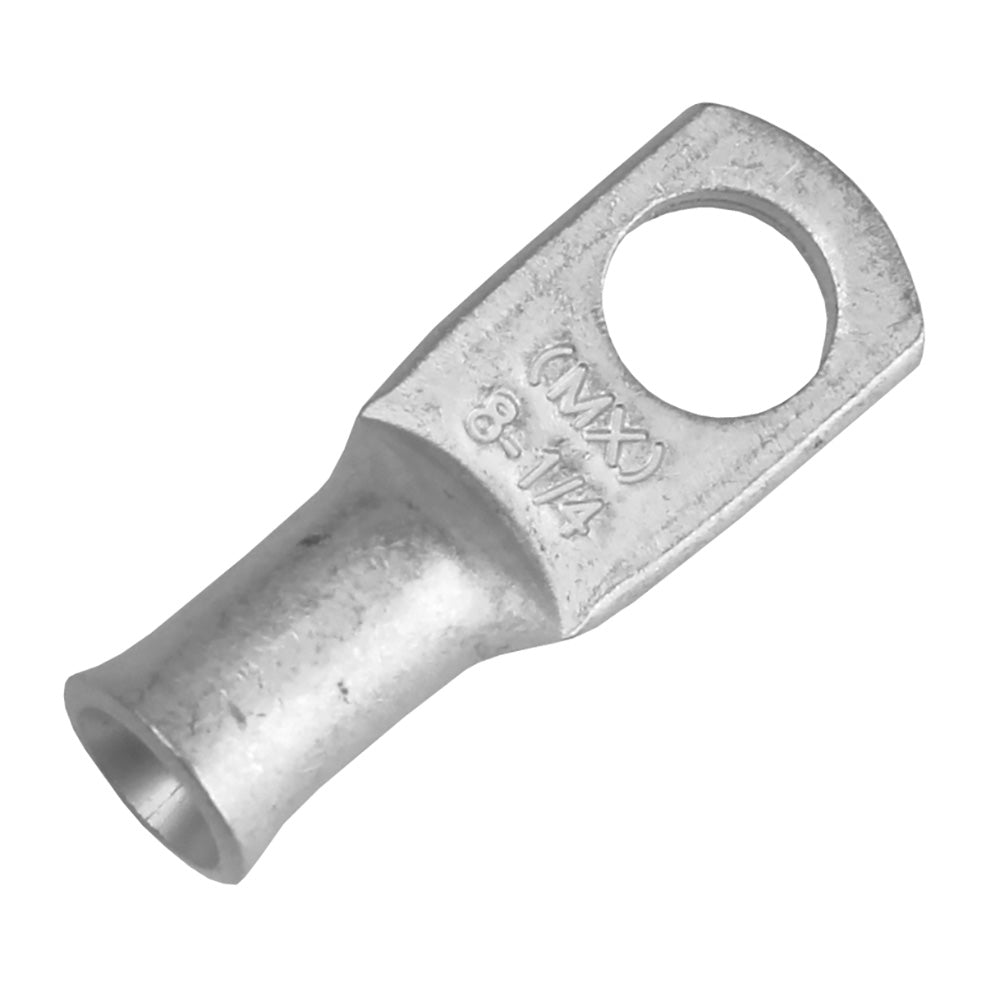

Pacer Tinned Lug 8 AWG - 1/4" Stud Size - 10 Pack

This Pacer tinned lug is made for terminating 8 AWG stranded copper wire on a 1/4 stud. It is a 10-pack option for marine electrical work where a closed-end lug and proper heat shrink can help shield the conductor from exposure.

• Wire size: 8 AWG
• Stud size: 1/4
• Package quantity: 10 lugs
• Voltage rating: 600V
• Length: 1.187
• Width: 0.438
• Clearance: 0.344
• Construction: seamless 99.9% copper tube with tin plating
• Design: closed end with no exposed seams, stamped cable size and stud hole, larger pad area, and controlled flare for cable insertion
• Use: designed for stranded copper wires and can be crimped or soldered
• Compliances: E.T.P. CDA-110 ASTM-B-152 copper rated at 100% conductivity, UL and CSA Approved, RoHS Compliant, exceeds SAE Conductivity STD J163 and J1811
