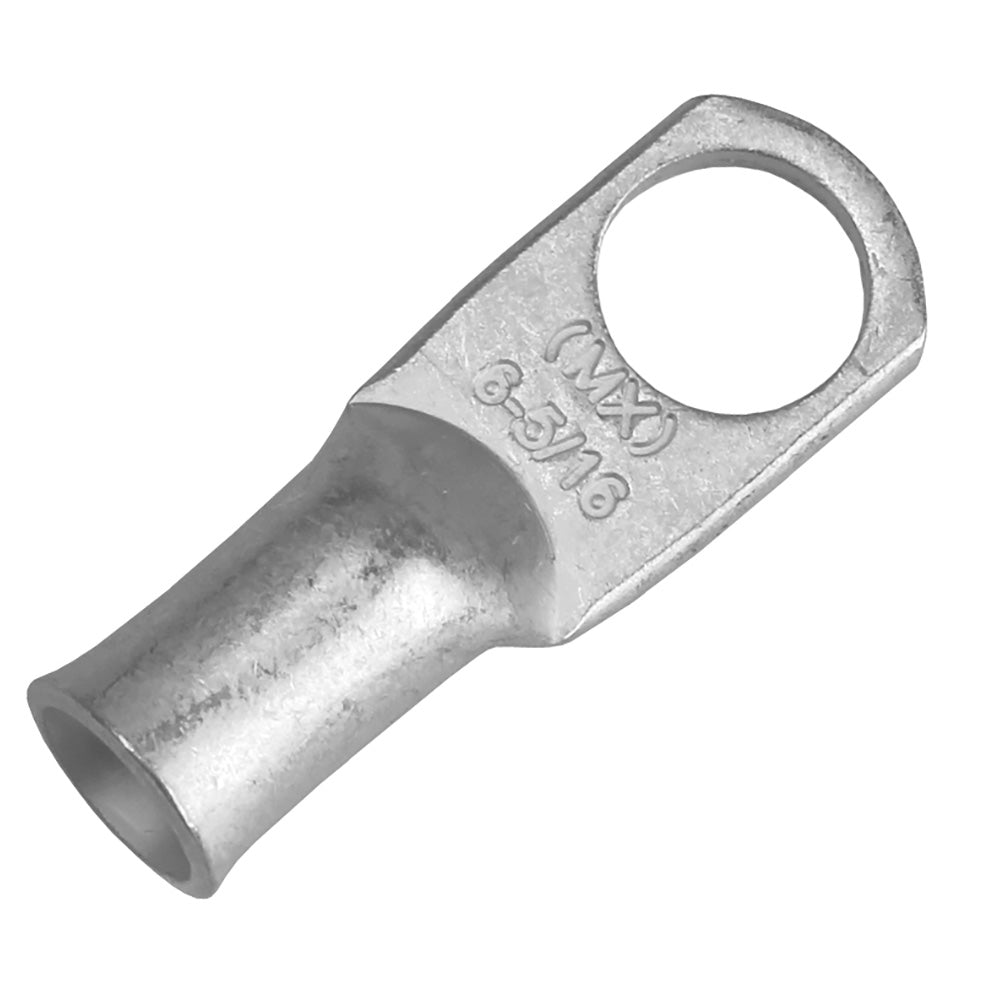

Pacer Tinned Lug 6 AWG - 5/16" Stud Size - 10 Pack

Pacer tinned closed-end lugs are made for terminating 6 AWG stranded copper wire on a 5/16 stud. This 10-pack is suited to marine electrical work where a protected, low-exposure connection is needed.

• Wire size: 6 AWG
• Stud size: 5/16
• Package quantity: 10 lugs
• Construction: seamless 99.9% copper tube with tin plating
• Rating: 600V
• No exposed seams and a closed end design
• Designed for stranded copper wire
• Larger pad area for improved contact
• Cable size and stud hole are stamped on the pad
• Can be crimped or soldered
• Controlled flare helps cable insertion
• Tight barrel-to-pad transition provides longer usable barrel length
• Length: 1.266
• Width: 0.438
• Clearance: 0.344
• Compliances: E.T.P. CDA-110 ASTM-B-152 copper rated at 100% conductivity, UL and CSA approved, RoHS compliant, exceeds SAE conductivity STD J163 and J1811
