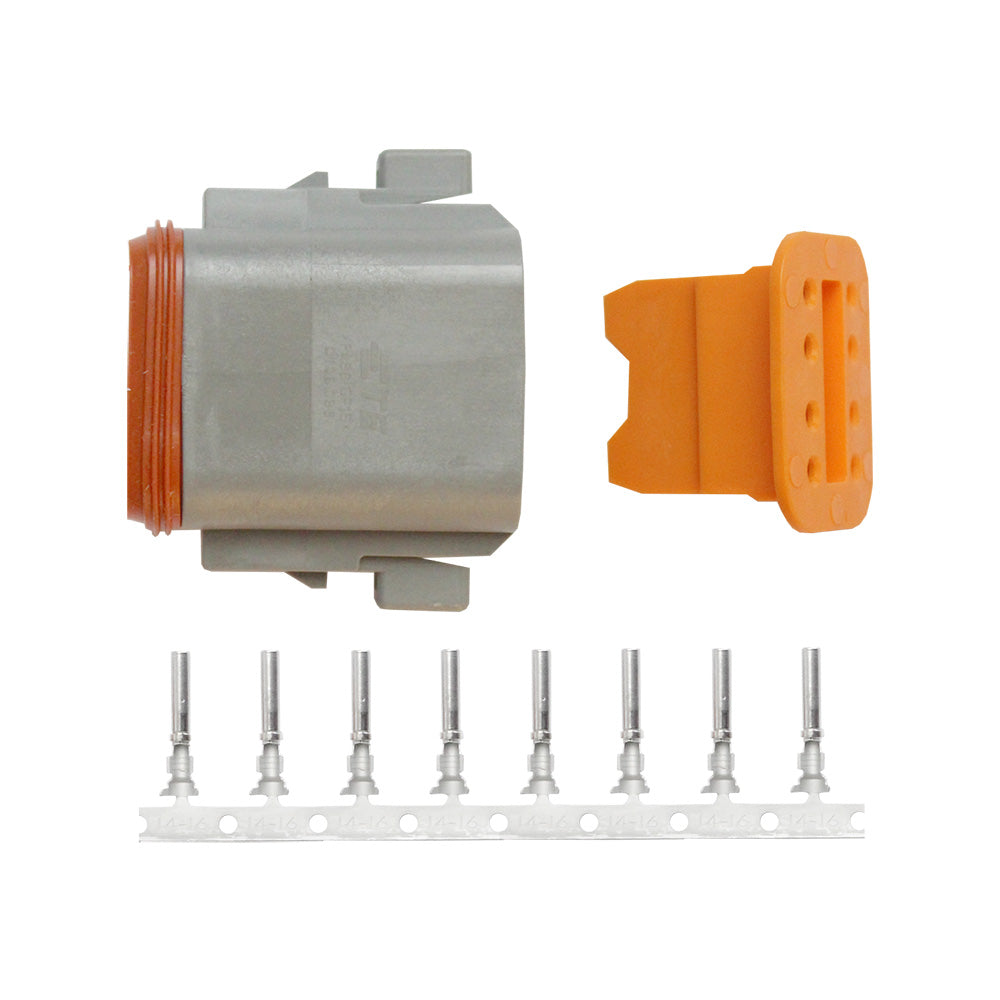

Pacer DT Deutsch Plug Repair Kit - 14-18 AWG (8 Position)

This Pacer DT Deutsch Plug Repair Kit supplies the parts needed to assemble an 8-position plug for wire-to-wire applications. It uses size 16 contacts for 14 AWG wire and includes sockets, a wedge lock, and cavity plugs.

• Brand: Pacer
• Product type: DT Deutsch plug repair kit
• Positions: 8
• Wire size: 14 AWG
• Contact size: 16, 13 amp
• Deutsch contact part numbers: Pin P/N 0460-215-16141, Socket P/N 0462-209-16141
• DT series wire range: 20-14 AWG
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Holds: Sockets
• Operating temperature: -55°C to 125°C
• Ingress protection: IP68 and IP6K9K
• Compliances: EU RoHS/ELV Standard, UL-94 Recognized
• Connector features: Wedge locks for contact alignment and retention, redundant silicone seals, and hand-insertable and removable contacts
• Included: (1) 8-position plug, (1) 8-position wedge lock, (10) sockets, (4) cavity plugs
