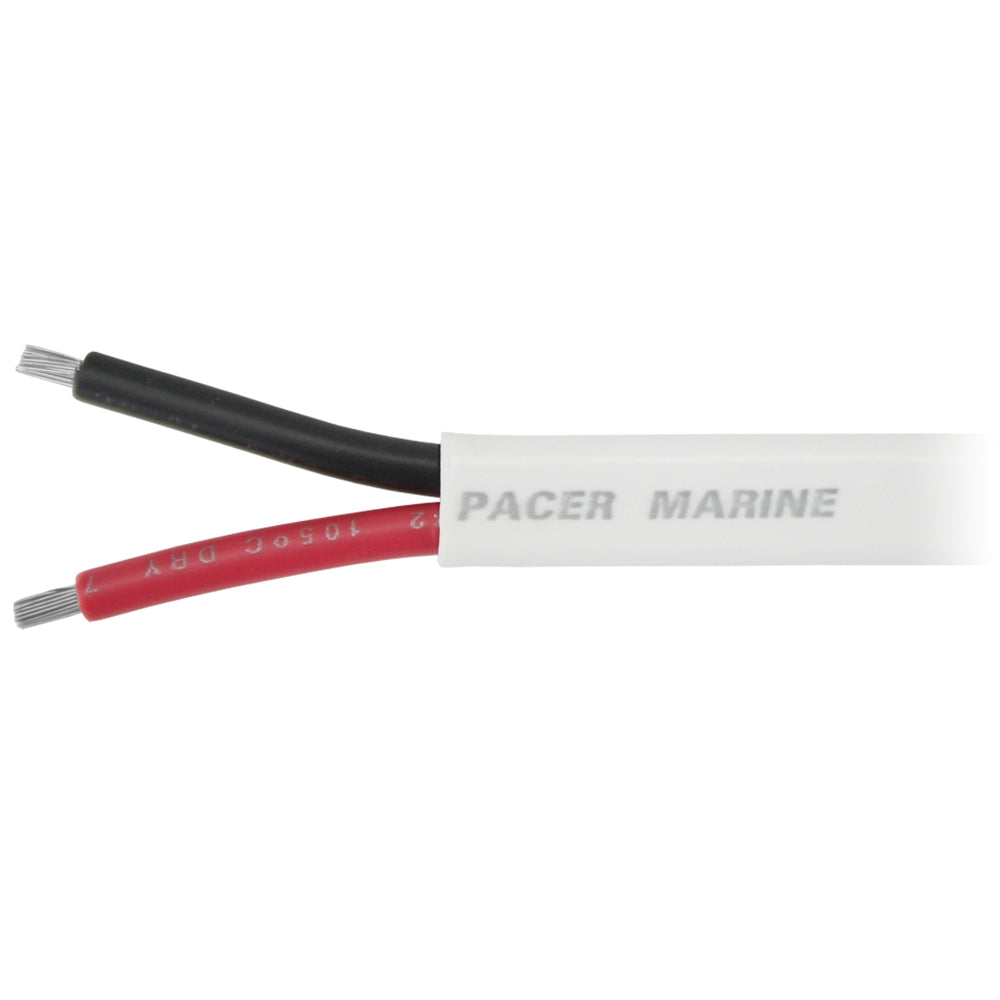

Pacer 14/2 AWG Duplex Cable - Flat Cable - Red/Black - 250'

Run low-voltage AC or DC boat circuits with Pacer's flat 14/2 AWG duplex cable. This 250-foot red/black cable combines flexible conductors with a PVC jacket that fills the spaces around the wires to limit moisture accumulation.

Key features

• Finely stranded, tinned copper bends readily and helps resist corrosion.
• Gap-free jacket extrusion leaves no internal spaces for air or moisture to collect.
• Talcum powder on the inner wires makes the outer jacket easier to remove.
• Color-coded insulation helps distinguish the two conductors during installation.
• Resistance to abrasion, flame, moisture and several chemicals supports use in marine environments.

Specifications

• Cable type: Flat duplex
• Size: 14/2 AWG
• Conductor count: 2
• Wire colors: Red/black
• Length: 250 feet
• Conductor material: Type III annealed, finely stranded tinned copper, ASTM B172 Class K
• Insulation: Flexible, color-coded PVC
• Jacket material: PVC
• Insulation temperature range: -20°C to 105°C
• Voltage rating: 600 V
• Resistance: Acid, alkali, abrasion, flame, gasoline, oil and moisture
• Compliance: UL 1426; U.S.C.G. 33 CFR part 183; ABYC E-11.14
• Country of manufacture: USA

Good to know

Sold as an individual item. Suitable for low-voltage AC applications and DC circuits.
