Overview

Pumps/DrivesType

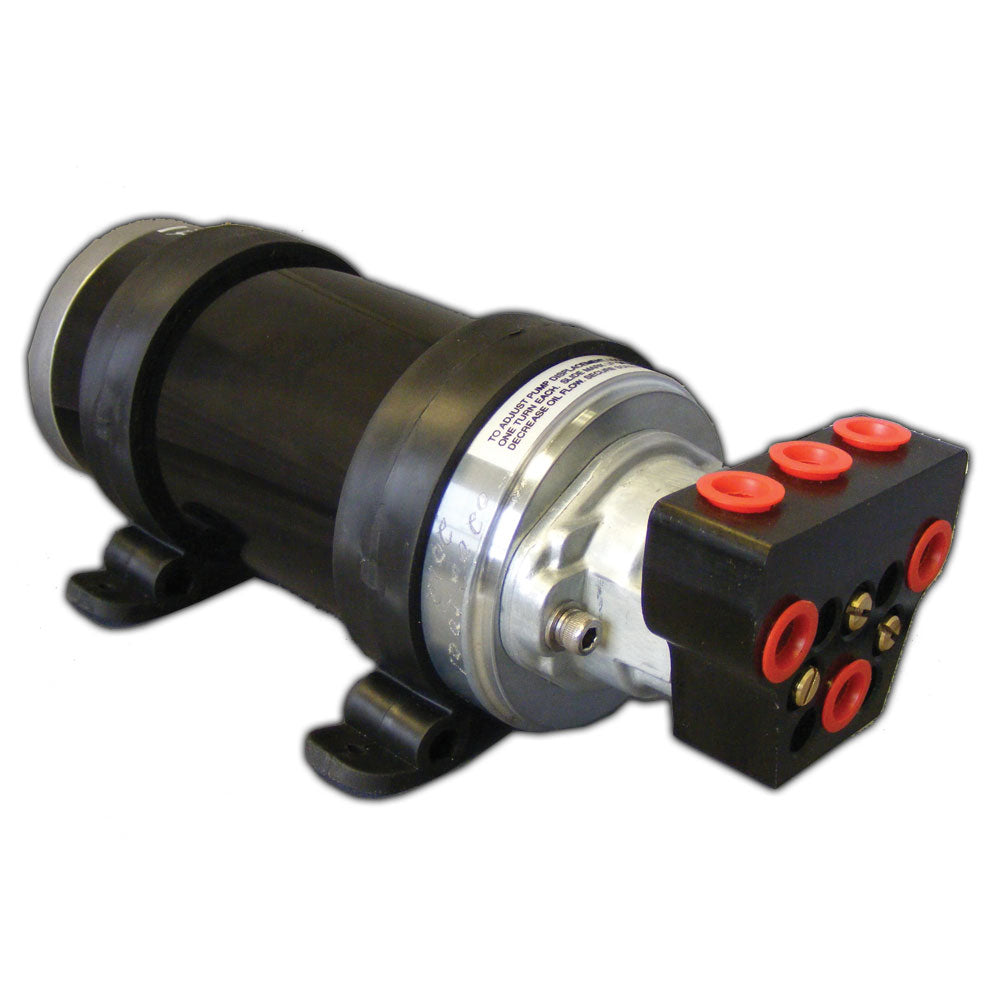

The Octopus Autopilot Pump Type 2 is a 12V adjustable reversing pump for hydraulic steering systems using cylinders up to 18 CI, with a listed cylinder size range of 11-22 ci. It is intended for autopilot steering corrections, using motor direction to move the steering left or right.

The pump includes an ORB port connection manifold and has an adjustable output flow so it can be matched to the steering cylinder. Its molded rubber mounting foot can be rotated for installation on different surfaces.

  • Brand: Octopus Autopilot Drives
  • Product type: Type 2 adjustable reversing autopilot pump
  • Voltage: 12VDC
  • Cylinder compatibility: Up to 18 CI cylinder
  • Listed cylinder size: 11-22 ci
  • Average current: 4-6 amps
  • Maximum current: 19 amps
  • Flow rate: Adjustable from 600cc to 1.2 litre/min
  • Ports: ORB port connection manifold
  • Motor type: Permanent magnetic motor
  • Motor diameter: 85mm
  • Moving parts: Three
  • Mounting: Rotatable molded rubber mounting foot

Specifications

TypePumps/Drives
BrandOctopus Autopilot Drives
Manufacturer part #OCTAF1212
UPC628309272777
Boxed dimensions12 x 6 x 5 in
Shipping weight8.35 lb
Country of originCANADA
