Newmar PX-3 Junction Box
Newmar PX-3 Junction Box
SKU:OM-NEWMARPOWER-PX3JUNCTION-PX3
Low stock: 2 left
Couldn't load pickup availability
Overview

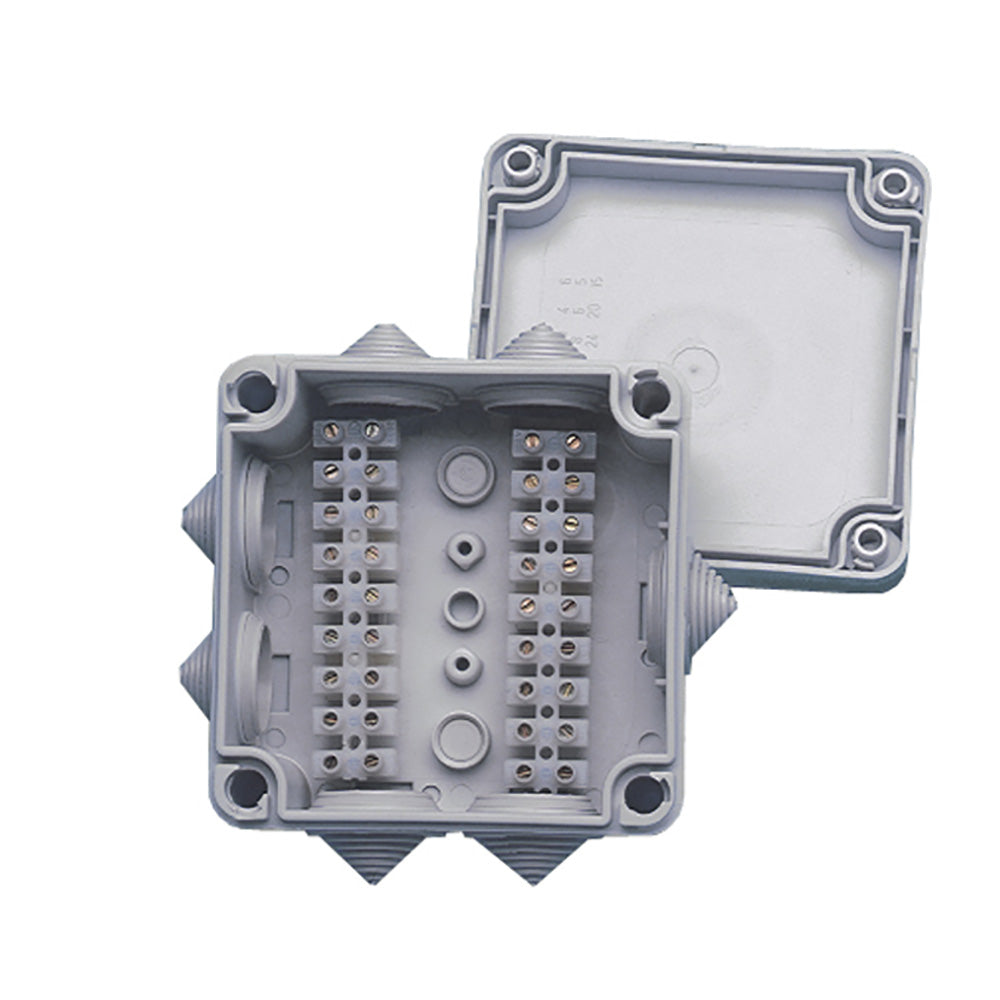

The Newmar Power PX-3 Junction Box provides a waterproof enclosure for wiring connections above or below deck. It is suited to marine electronics installations where conductors need to be joined inside a non-corrosive box with screw-compression terminals.
Installed connector strips use brass barrels and stainless steel compression fingers so the screw secures the wire without cutting copper strands.
- Box material: high-impact polypropylene
- Cover: snap-on design with watertight seal
- Waterproof rating: IEC IP55
- Connector strips: 2
- Positions per strip: 9
- Maximum wire gauge: 16
- Cable entry ports: 7
- Cable entries installed: 7
- Spare cable entries provided: 0
- Cable diameter range: .14 to .99 inches, 3.5 to 25.5 mm
- Box size: 4.45 x 4.45 x 2.29 inches, 11.3 x 11.3 x 5.8 cm
- Access: multiple conduit knockouts in addition to cable entries
Specifications
| Type | Junction Box |
|---|---|
| Brand | Newmar Power |
| Manufacturer part # | PX-3 |
| Boxed dimensions | 9 x 7 x 3 in |
| Shipping weight | 0.5 lb |
