• Newmar PX-1 Junction Box
1 1

Newmar Power

Newmar PX-1 Junction Box

Newmar PX-1 Junction Box

OM-NEWMARPOWER-PX1JUNCTION-PX1

$49.49
$55.00 $49.49
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Junction BoxType

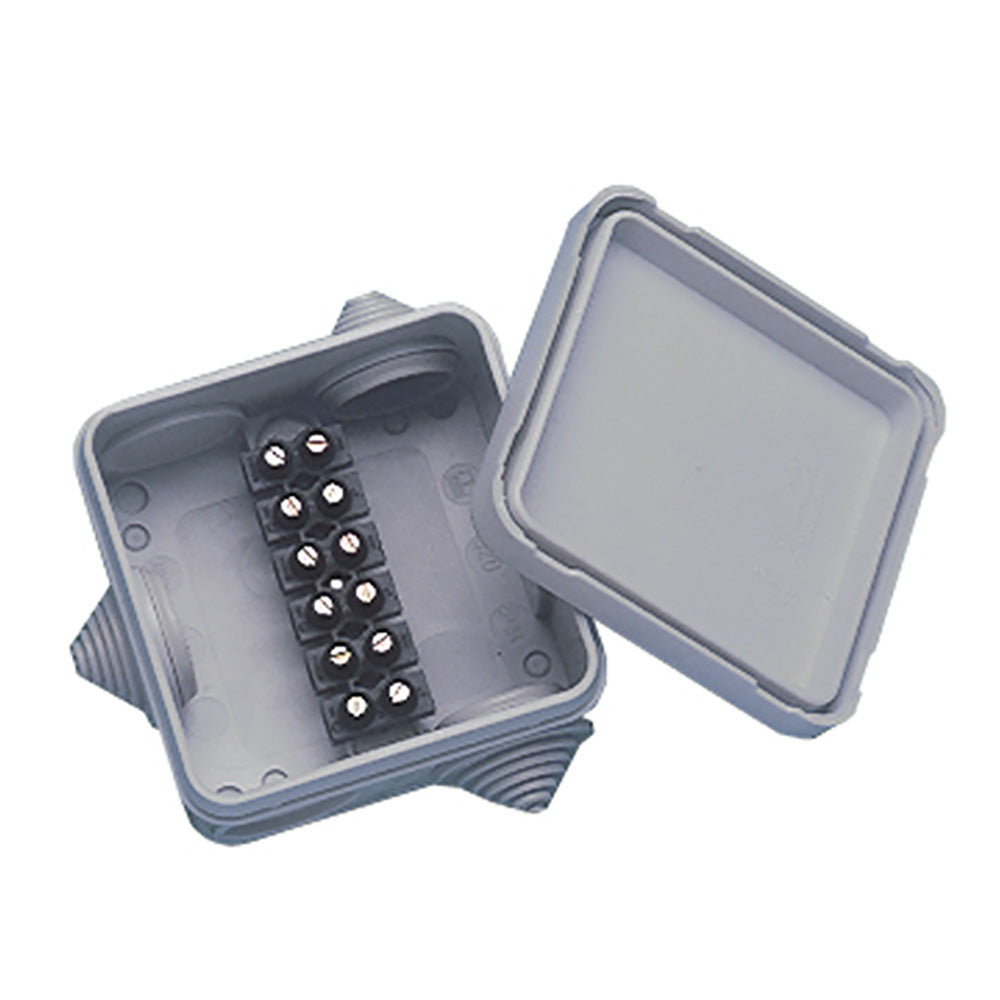

Keep onboard wiring connections enclosed with the Newmar Power PX-1 Junction Box. It suits electronic installations above or below decks, including locations exposed to occasional spray, and contains an installed six-position connector strip.

Key features

  • A snap-on cover seals the enclosure against water, with IP55 protection against water jets.
  • High-impact polypropylene resists corrosion in marine installations.
  • Screw-compression terminals secure wires without requiring lugs.
  • Stainless steel fingers press wires into brass barrels, keeping screws away from copper strands to help prevent cutting and breakage.
  • Graduated cable entries can be cut to fit different cable diameters.
  • Additional knockouts provide access for conduit alongside the cable entries.

Specifications

  • Brand: Newmar Power
  • Model: PX-1
  • Product type: Junction box
  • Enclosure material: High-impact polypropylene
  • Connector materials: Molded nylon, brass barrels and stainless steel fingers
  • Water protection rating: IP55
  • Wire connection standard: ABYC
  • Connector strips: 1
  • Positions per strip: 6
  • Maximum wire gauge: 16
  • Cable entry ports: 5
  • Installed cable entries: 3
  • Spare cable entries supplied: 2
  • Cable diameter range: 0.14–0.81 inches / 3.5–20.5mm
  • Box dimensions: 2.95 x 2.95 x 1.66 inches / 7.5 x 7.5 x 4.2cm

Specifications

TypeJunction Box
BrandNewmar Power
Manufacturer part #PX-1
Boxed dimensions8 x 6 x 3 in
Shipping weight0.2 lb
