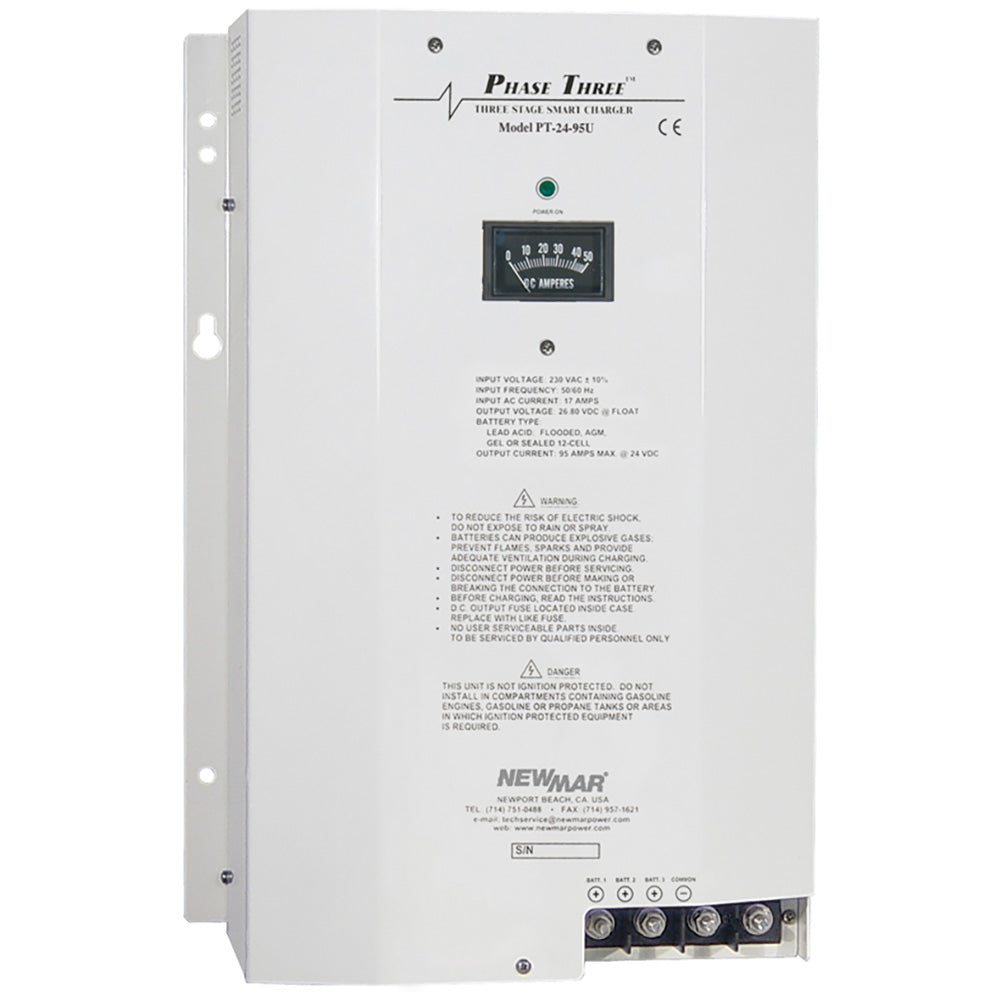

Newmar PT-24-95U Battery Charger

The Newmar Power PT-24-95U Battery Charger is a 24-volt marine charger for workboats, military vessels, commercial vessels, and recreational craft. It uses three-stage charging and selectable battery settings for gel-cell, flooded lead-acid, or AGM batteries.

• Model: PT-24-95U
• System voltage: 24-volt
• Charging stages: Bulk, absorption, float
• Battery settings: Gel-cell, flooded lead-acid, AGM
• Input VAC: 90-264, 50-60 Hz
• Input amps at full load: 26 at 115 VAC, 14 at 230 VAC
• Power factor: .98 at 115V and .95 at 230V
• Maximum output: 95 amps
• Output banks: 3 isolated banks
• Battery capacity: 180-950 amp-hours
• Protection: Current limiting, thermal protection, forced air cooling, drip shield
• Operating temperature: -20 degrees C to +70 degrees C
• Temperature derating: From 100% at 50 degrees C to 50% at 70 degrees C
• Case: Stainless steel with white powder coat finish
• Internal circuitry: Polyurethane coated
• Weight: 24.5 lb / 11 kg
• Optional temperature sensor: TCS-12/24
• Remote panel model: RP
• Compliance reference: EN, CE, ABS
• Nominal gel-cell output: 28.0 VDC charge at 50% load and 27.2 VDC float at .5 amp load
• Nominal flooded/AGM output: 28.4 VDC charge at 50% load and 26.8 VDC float at .5 amp load
• Additional control: Install with PT-MCU for added control and monitoring
