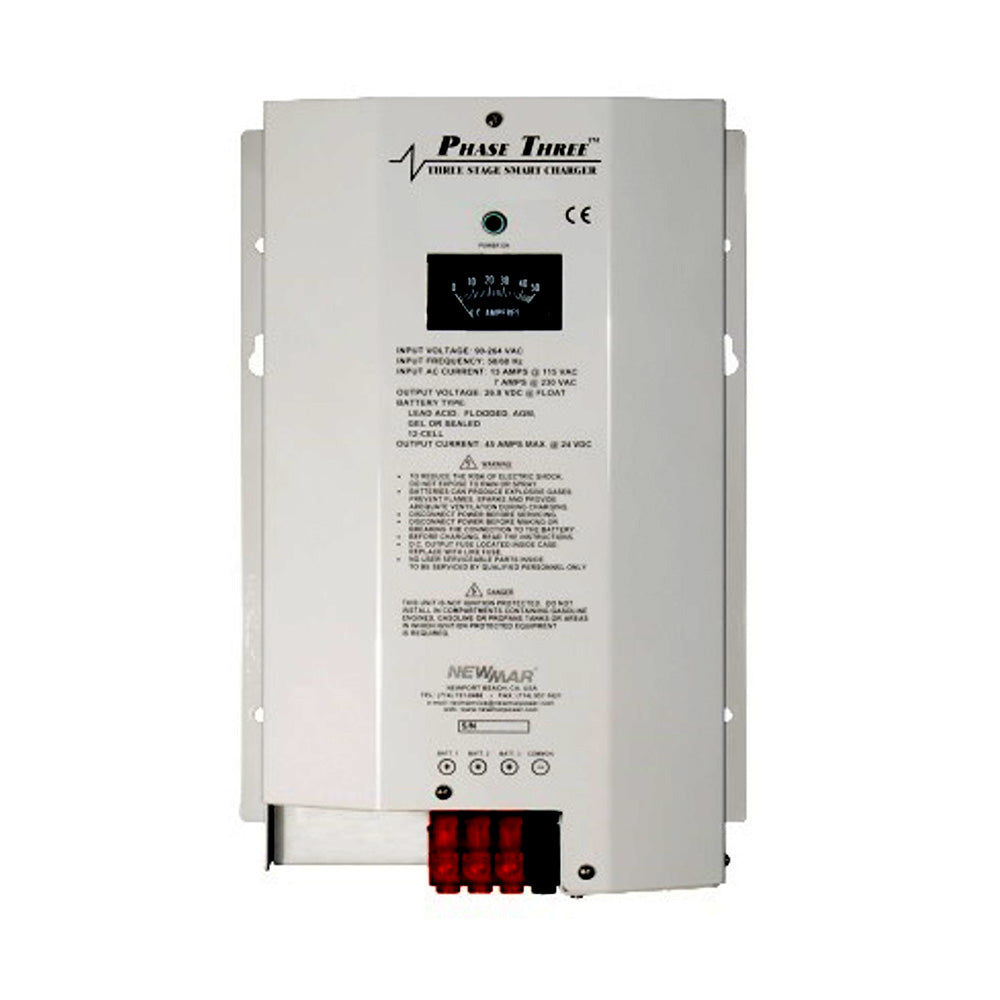

Newmar PT-24-8W Battery Charger

The Newmar Power PT-24-8W is a marine battery charger for 24-volt systems on workboats, military vessels, commercial vessels, and recreational craft. Its three-stage charging profile supports battery recovery and maintenance, with a selector for gel-cell, flooded lead-acid, or AGM battery settings.

• Model: PT-24-8W
• System voltage: 24-volt model
• Charging stages: Bulk, absorption, and float
• Battery type selector: Gel-cell, flooded lead-acid, and AGM
• Maximum output current: 8 amps
• Output banks: 3 isolated banks
• Battery capacity: 16 to 80 amp-hours
• Input voltage: 85 to 264 VAC, 50-60 Hz
• Input amps at full load: 2.8 amps at 115 VAC, 1.4 amps at 230 VAC
• Power factor: .98 at 115V and .93 at 230V
• Case: Stainless steel with durable white powder coat finish
• Internal protection: Polyurethane coated circuitry for corrosion resistance
• Protection features: Current limiting, thermal protection, forced air cooling, and drip shield
• Power supply use: Can power loads without a battery in line
• Controls: Install in conjunction with PT-MCU for additional control and monitoring
• Approval: ABS-type approval for battery charging and power supplies
• Compliance reference: CG, CE, ABS
• Case size reference: A-1
• Dimensions: 11.2A x 7.7 x 4.75A inches, 28.4A x 19.6 x 12.1A centimeters
• Dripshield note: Add 1.1 inches, 2.8 cm, to height and .92 inches, 2.3 cm, to depth with dripshield installed
• Weight: 8 lb, 4 kg
• Optional temperature sensor model: TCS-12/24
• Remote panel model: RP
• Operating temperature reference: -10 degrees C to +60 degrees C
• Derating: Derate linearly from 100% at 40 degrees C to 60% at 60 degrees C
• Gel-cell output without temperature compensation: 28.0 VDC charge at 50% load and 27.2 VDC float at .5 amp load
• Flooded/AGM output without temperature compensation: 28.4 VDC charge at 50% load and 26.8 VDC float at .5 amp load
