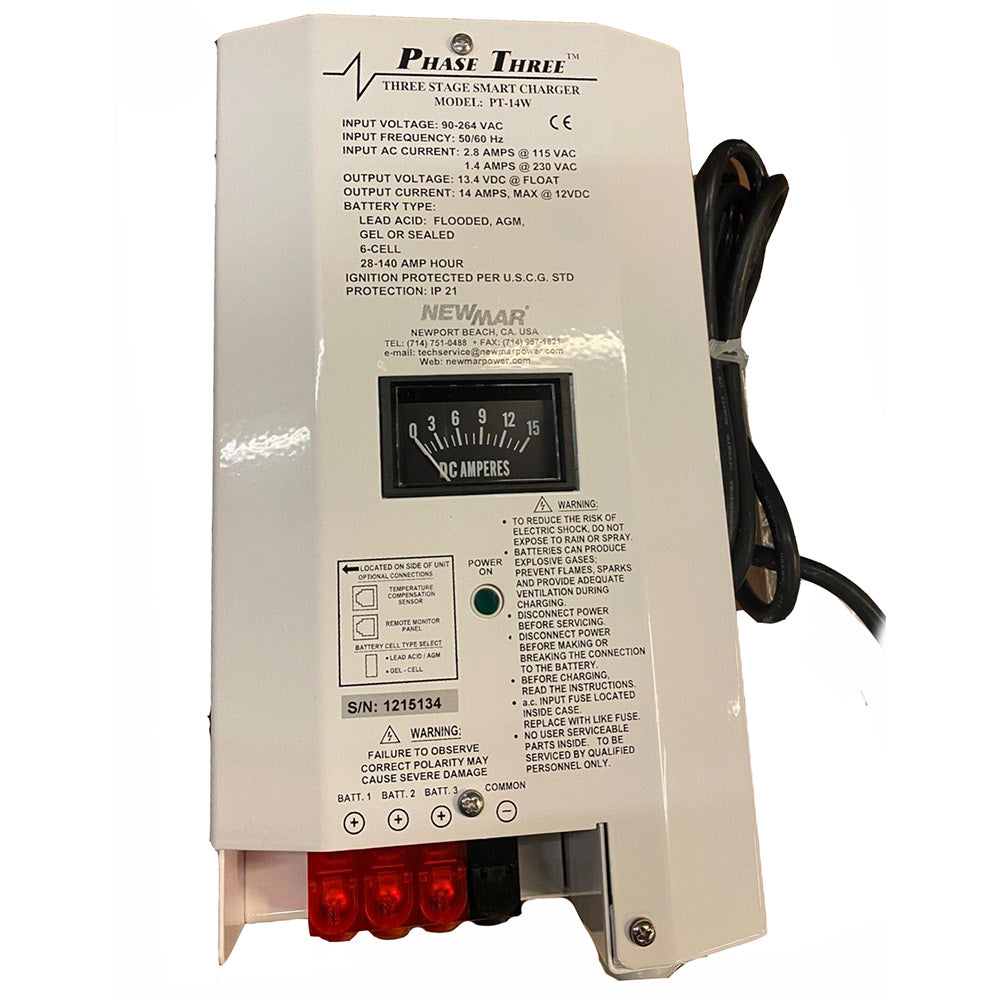

Newmar PT-14W Battery Charger

The Newmar Power PT-14W is a Phase Three Series battery charger for 12-volt marine electrical systems. It provides smart three-stage charging for gel-cell, flooded lead-acid, or AGM batteries, with multiple output banks and marine-focused protection features.

• Brand: Newmar Power
• Model: PT-14W
• Series: Phase Three
• System voltage: 12-volt systems
• Charging stages: Bulk, absorption, and float
• Battery type selector: Gel-cell, flooded lead-acid, and AGM
• Input VAC: 85-264 VAC, 50-60 Hz
• Input amps at full load: 2.8A at 115 VAC; 1.4A at 230 VAC
• Power factor rating: .93 at 230V and .98 at 115V
• Maximum output amps: 14A
• Output banks: 3 isolated banks
• Battery capacity: 28-140 amp-hours
• Operating temperature rating reference: T-2
• Temperature range: -10 degrees C to +60 degrees C
• Derating: From 100% at 40 degrees C to 60% at 60 degrees C
• Case size reference: A-2
• Case size: 11.2A x 7.7 x 4.75A inches; 31.8A x 19.6 x 12.1A centimeters
• Dripshield note: Add 1.1" height and .92" depth; 2.8 cm height and 2.3 cm depth
• Weight: 8 lb / 4 kg
• Case: Stainless steel with white powder coat finish
• Internal circuitry: Polyurethane-coated
• Protection: Current limiting, thermal protection, forced air cooling, and drip shield
• Output current display: Ammeter indicates total output current
• Optional temperature sensor model: TCS-12/24
• Remote panel model: RP
• Equalize option: Yes
• Output indicator reference: M-3
• Compliance reference: CG, CE
• ABS-type approval: Battery charging and power supplies
• Nominal gel-cell output voltage without temperature compensation: 14.0 VDC charge at 50%
