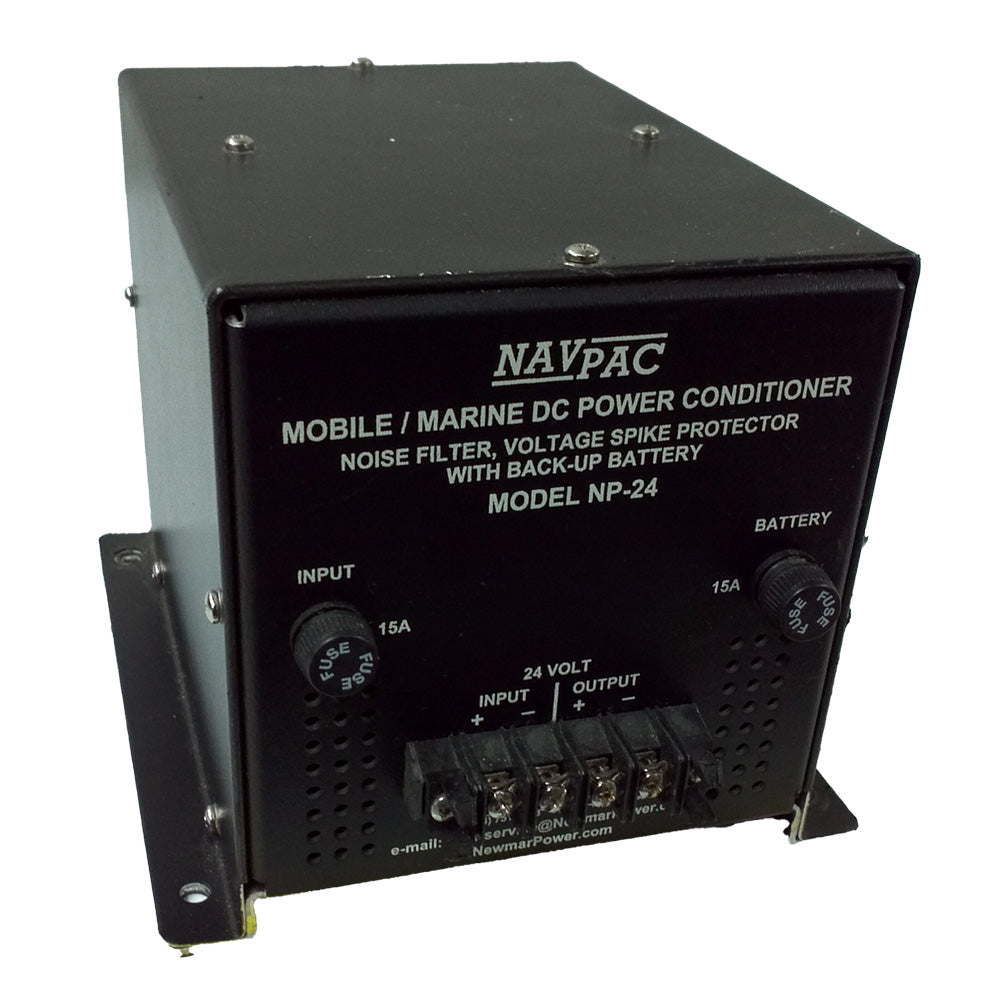

Newmar NP-24 Nav-Pac - 24V

The Newmar Power NP-24 Nav-Pac supplies clean 24V DC power for marine navigation and communication electronics. It is designed to help protect sensitive equipment from engine-start voltage drop, electrical noise, and line spikes.

• Output: 24 volt at 15 amps maximum
• Helps prevent voltage drop-out during engine start and other high intermittent loads such as thrusters
• Absorbs line spikes and filters electrical interference
• Provides supplemental voltage and battery backup for up to 15 minutes
• Battery: sealed rechargeable 5.0 amp-hour
• Typical battery life: 5-7 years
• Battery can be replaced
• Low-voltage disconnect circuit protects the battery from total discharge
• Certified by DOT and IATA for air shipment
• Noise filtering: audio through 200 MHZ
• Voltage spike protection: transient energy capability, 100 joules, 4,000 amps max, 8 x 20 microseconds
• Back-up power: 8A for 15 minutes, 12A for 8 minutes, and 18A for 2 minutes
• Size: 6.0 x 6.75 x 7.5 inches
• Metric size: 13.3 x 17.14 x 19 cm
• Weight: 8 lbs. or 3.6 kg
• Optional remote panel: 773-5037-0
• This product may not be returned to the original point of purchase; contact the manufacturer directly with issues or concerns.
