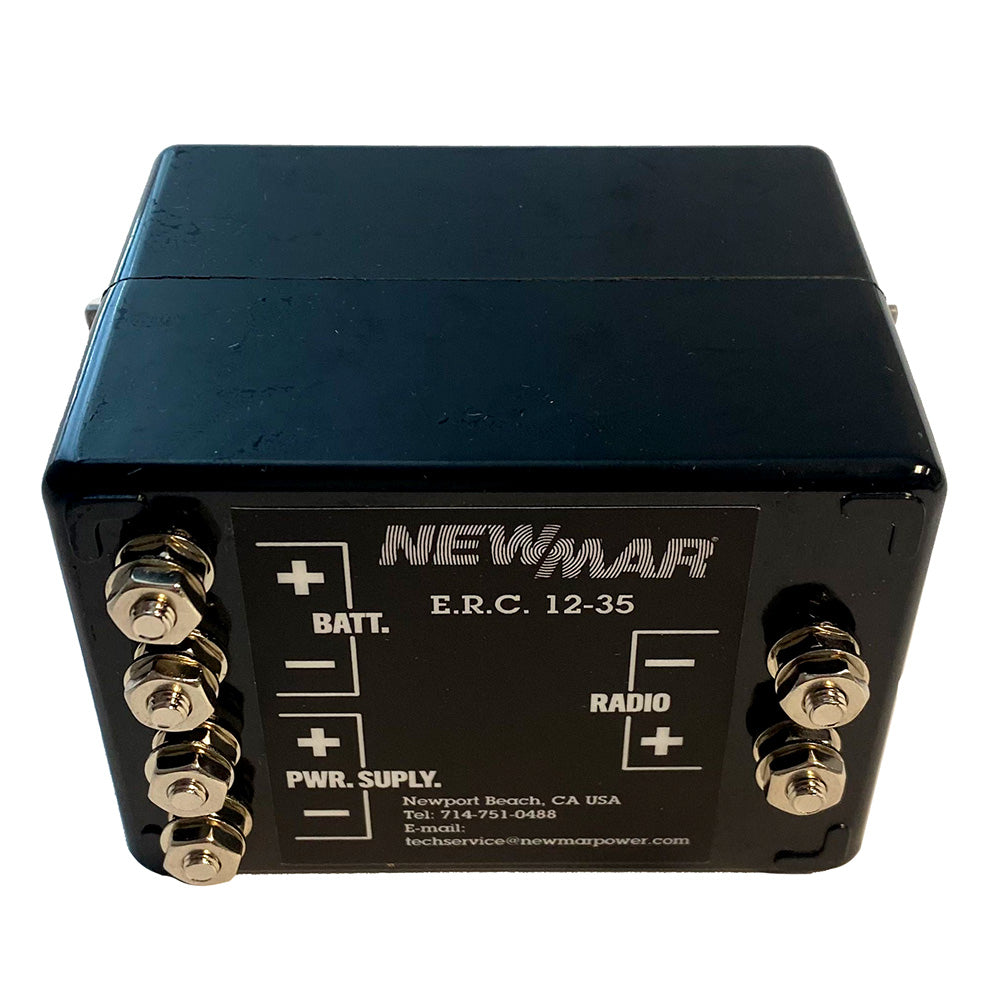

Newmar ERC-12-35 Emergency Relay

The Newmar Power ERC-12-35 Emergency Relay is an emergency relay and charger for keeping communications equipment supplied with backup DC power when AC power to the power supply is lost or the supply fails. When DC voltage is lost, the unit switches equipment input to a standby battery, then returns the equipment to the power supply when service is restored.

• Model: ERC-12-35
• Function: Emergency relay and charger
• Use: Backup power switching for communications equipment
• Relay type: Fast-acting S.P.D.T. relay
• Battery charging: Directs a small portion of power supply output current to trickle-charge and maintain the standby battery
• Float voltage note: Battery float voltage is maintained at .7 volts lower than the power supply voltage
• Mounting orientation: May be mounted vertically, horizontally, or upside-down
• Mounting hardware: Requires two #10 sheet metal or wood screws
• Mounting surface: Metal surface mounting is acceptable because inputs and outputs are isolated from the mounting bracket
• Included wiring connection method: Crimp ring lug connectors secure wiring to the ERC
• Wire gauge guidance: 5 ft uses #8 AWG, 10 ft uses #6 AWG, 15 ft uses #4 AWG, and 20 ft uses #4 AWG
