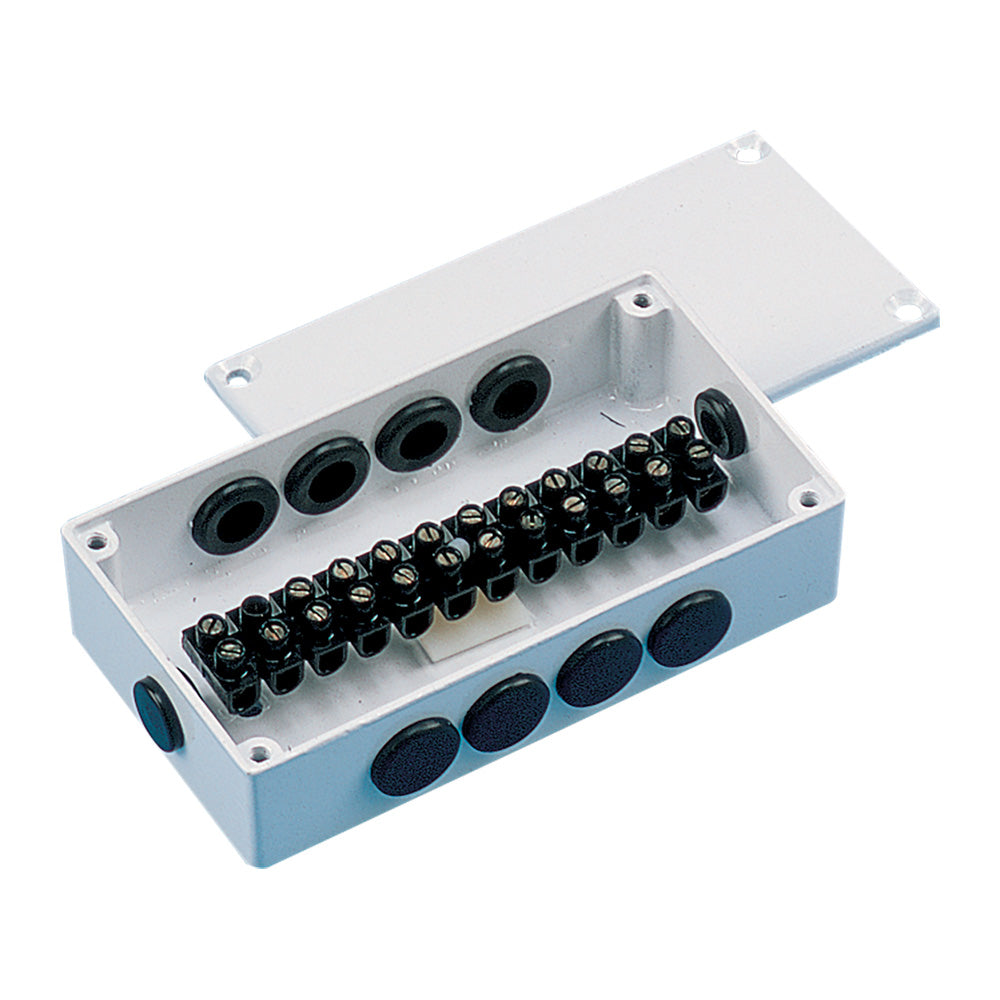

Newmar BX-2 Junction Box

BX-2 Junction Box

This BX Series splashproof box provides secure, protected wiring connections in wheelhouses or below decks and engine rooms.

Features:

• IP rating 54 – “Splashproof”
• Rugged cast aluminum box with white enamel finish
• Metal box reduces electrical interference
• Easy wiring access through multiple grommeted cable entries
• Supplied with high-quality connector strips – secure wires with compression fittings – no terminals required – see matrix below for connector strips specifications per box

Specifications:

• Number of Connector Strips: 1
• Positions per Strip: 12
• Max Wire Gauge: 16
• Max Amps (per position): 6
• Cable Entries: 8
• Cable Diameter: 0.37 in.
• Box Size: 4.4 x 2.4 x 1.2 in.
• Box Size: 11.2 x 6.1 x 3.1 cm
