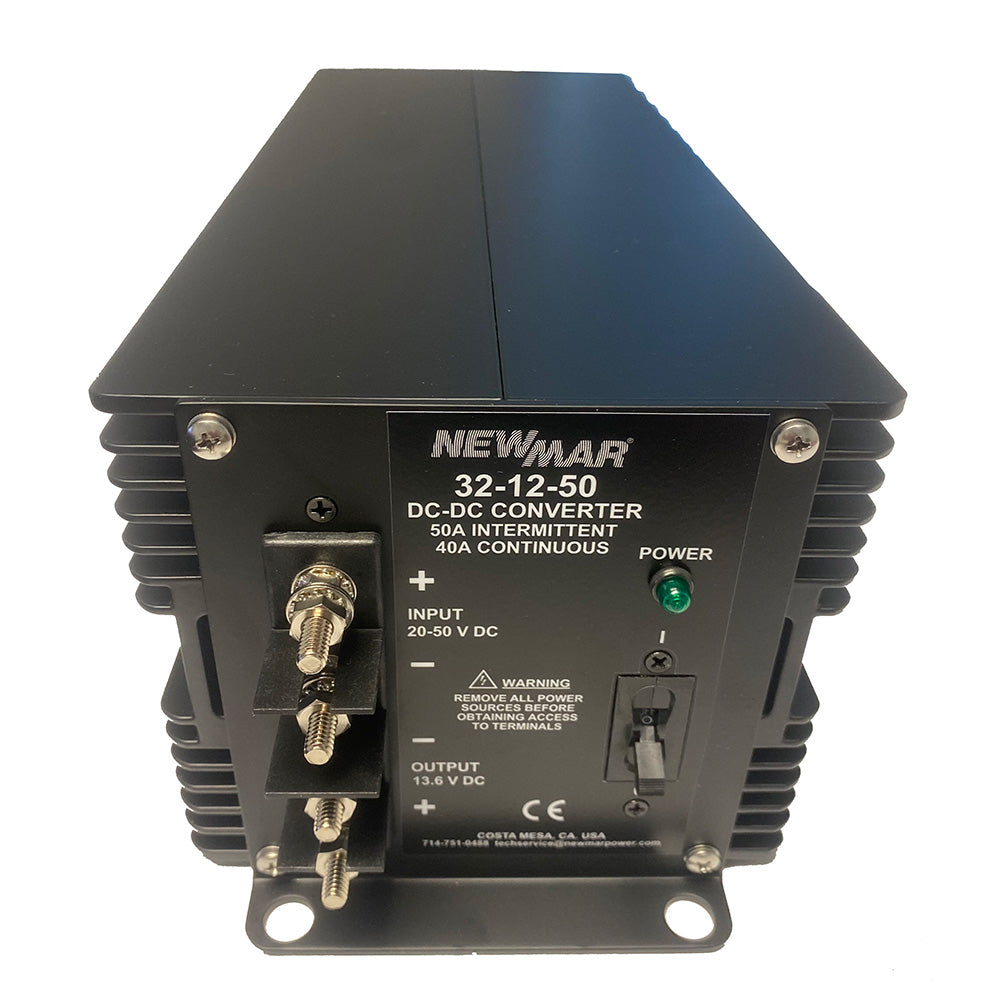

Newmar 32-12-50 DC Converter

The Newmar Power 32-12-50 DC Converter changes 20-50 VDC input into 12 VDC negative ground output for communication and navigation equipment. It is intended for negative ground systems, with the isolated series noted for positive ground applications.

• Brand: Newmar Power
• Model: 32-12-50
• Product type: DC converter
• Input voltage: 20-50 VDC
• Output voltage: 13.6 VDC, internally adjustable from 12.6-14.5 VDC
• Output amps: 50A intermittent, 40A continuous
• Ground: 12 VDC negative ground output
• Regulation: 1% line/load
• Ripple: 150 mV P-P maximum
• Switching frequency: 40 kHz
• Efficiency: 85% typical
• Isolation: Output/chassis and input/chassis: 250 VDC
• Idle current: Less than 100 mA, including power on light
• Operating temperature: 0-50 degrees C, derated from 100% at 40 degrees C to 50% at 50 degrees C
• Thermal shutdown: 70 degrees C case temperature
• Case size: 6.2 x 6.8 x 18.1 inches
• Weight: 16 lb.
• Case: Powder-coated aluminum heat sink case
• Connections: Front panel terminal block
• Mounting: Heavy-duty mounting flange with heavy-duty shock mounts
• Circuit board: Conformal coated PC board
• Protection: Current limiting, automatic thermal shutdown, short circuit proof design, reverse polarity protection, and overvoltage protection
• Certification mark: CE mark
• Optional accessory: Extreme Vibration Mounting Kit
