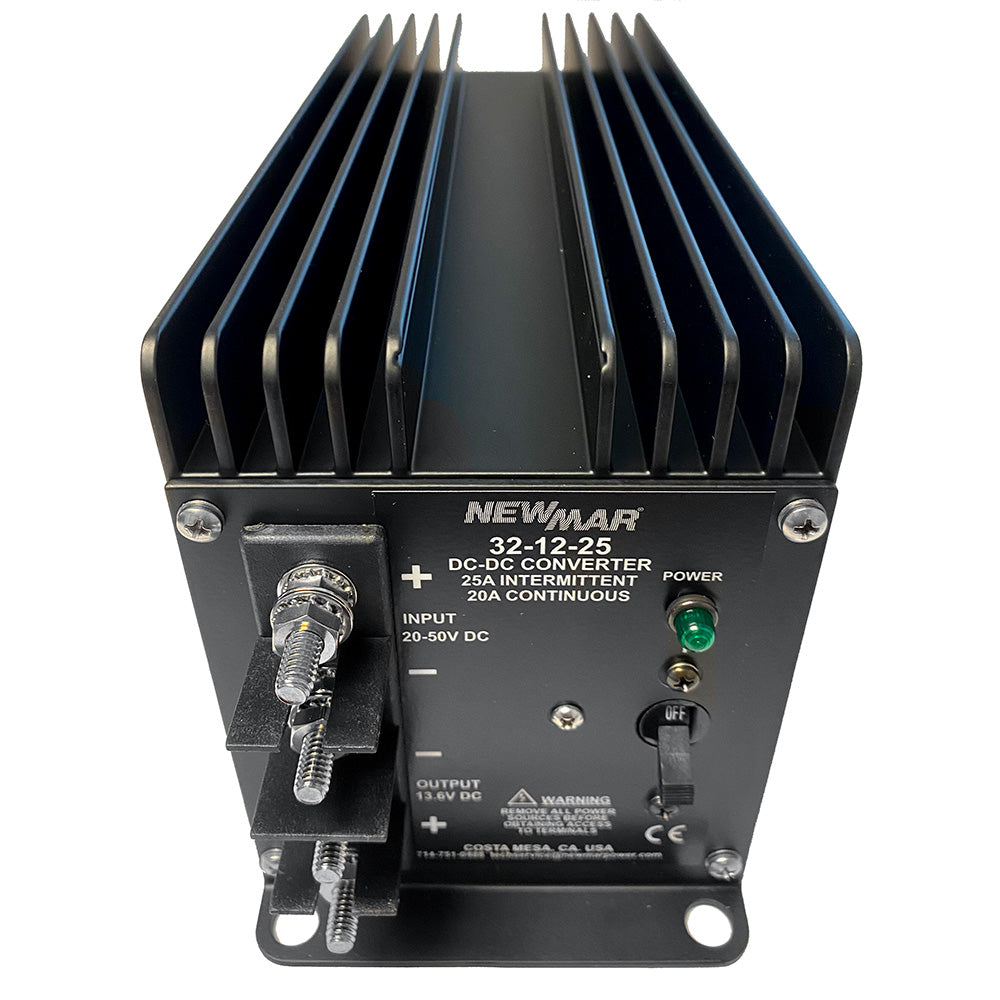

Newmar 32-12-25 DC Converter

Newmar Power 32-12-25 DC Converter steps 20-50 VDC input down to a 13.6 VDC negative-ground output. It is intended for powering communication and navigation electronics on negative-ground systems.

• Brand: Newmar Power
• Model: 32-12-25
• Input voltage: 20-50 VDC
• Output voltage: 13.6 VDC
• Output adjustment range: 12.6-14.5 VDC
• Output current: 25 amps intermittent, 20 amps continuous
• Regulation: 1% line/load
• Ripple: 150 mV P-P maximum
• Switching frequency: 40 Khz
• Typical efficiency: 85%
• Idle current: less than 100 mA, including power-on light
• Operating temperature: 0-50 degrees C
• Case size: 6.0 x 4.7 x 14.0 inches
• Weight: 7.5 lb.
• Protection circuits include current limiting, automatic thermal shutdown, short-circuit protection, reverse polarity protection, and overvoltage protection
• CE mark
• Powder coated aluminum heat sink case with front panel terminal block, heavy duty mounting flange, and conformal coated PC board
