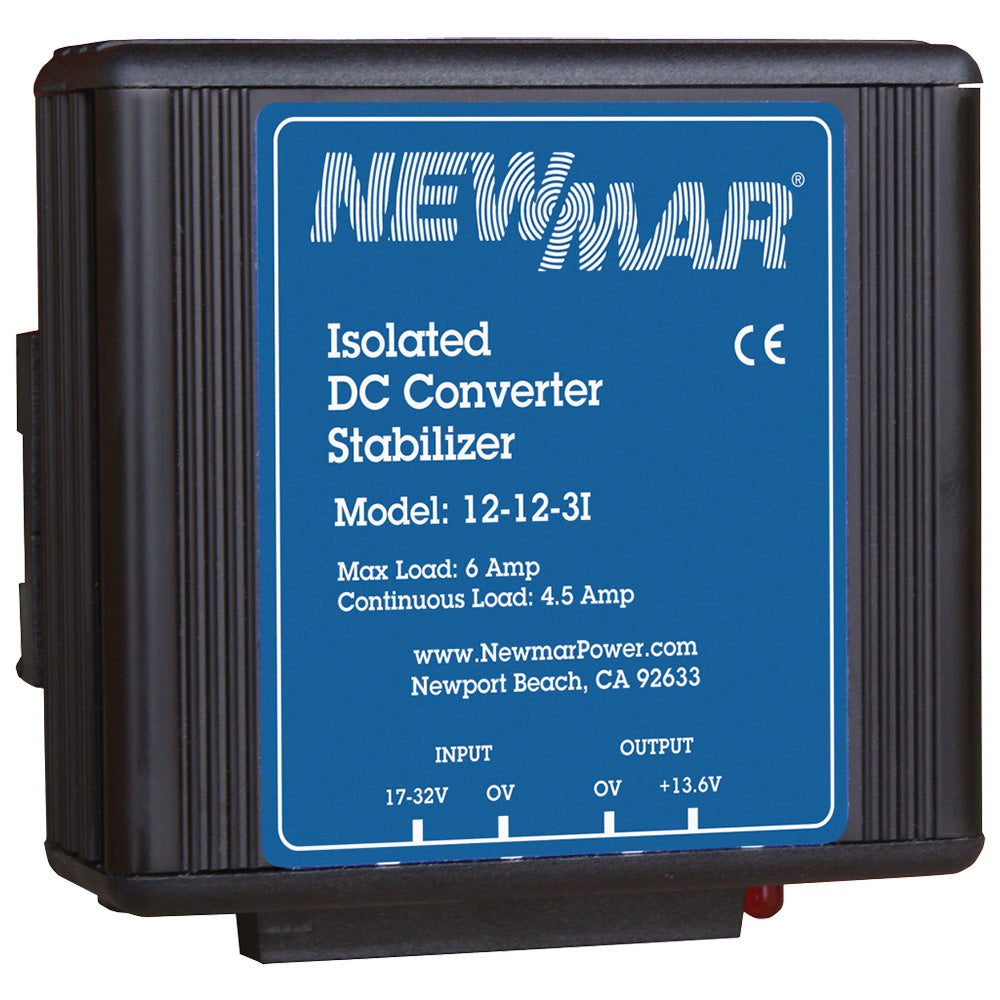

Newmar 12-12-3i Power Stabilizer

The Newmar Power 12-12-3i power stabilizer supplies regulated DC output for electronics that should not see wide battery-voltage swings. It is built for marine use in an anodized aluminum case and provides input-to-output isolation to reduce conducted line noise and support mixed grounding arrangements.

• Input voltage: 10-16 VDC
• Input current: 4 amps
• Output voltage: 13.6 VDC
• Output current: 3 amps continuous, 3 amps intermittent
• Case size: 3.5 x 3.5 x 1.75 inches; 8.9 x 8.9 x 4.5 cm
• Weight: 1 lb.; 0.45 kg
• Ripple: 150 mV P-P maximum
• Regulation: 1% line/load
• Duty cycle: Continuous 24 hours at 100% duty; intermittent 20 minutes maximum on time at 20% duty
• Idle current: Less than 100 mA including power on light
• Operating temperature: 0-50 degrees C, derated linearly from 100% at 40 degrees C to 50% at 50 degrees C
• Thermal shutdown: 70 degrees C case temperature
• Switching frequency: 40 kHz
• Efficiency: 85% typical
• Isolation: Output/chassis and input/chassis rated 250 VDC
• Mechanical details: Anodized aluminum heat sink case, front panel terminal block, heavy-duty mounting flange, conformal-coated PC board
• Factory options: Battery charger operation, parallel or redundant operation, high-vibration mounting kit, and non-standard output voltage
