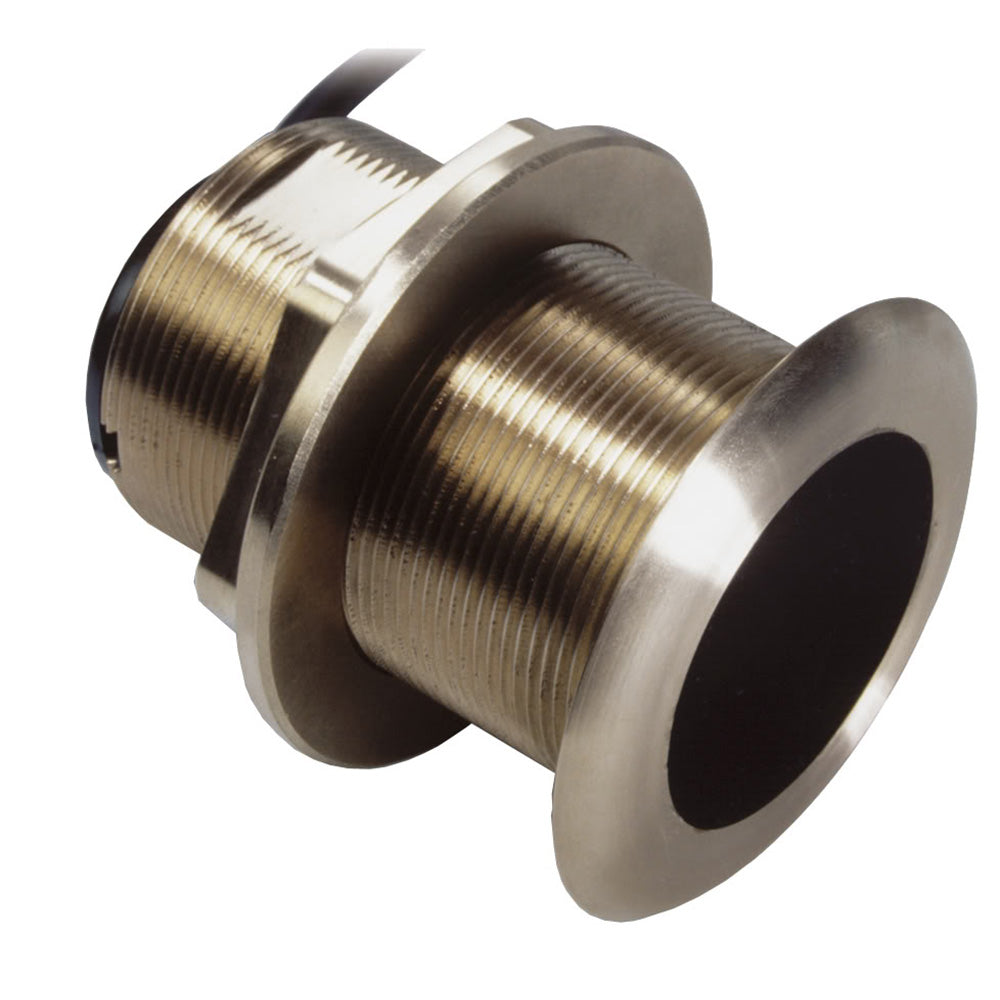

Navico B60 Thru Hull Transducer 12° Tilt, 9-Pin Xsonic Connector, Depth & Temperature

Track depth and water temperature aboard your center-console or trailered boat with the Airmar B60 thru-hull transducer. Its internal 12° element angle compensates for hull deadrise to direct the sonar beam downward, while the bronze housing sits close to the hull.

Key features

• A tilted internal element directs the beam downward on hulls with compatible deadrise angles.
• Two operating frequencies provide a choice of wide or narrow sonar coverage.
• Fast-response temperature sensing adds water temperature readings alongside depth.
• The housing projects just 5 mm outside the hull for a low-profile installation.

Specifications

• Model: B60
• Measurements: Depth and water temperature
• Power: 600 W
• Frequencies: 50/200 kHz
• 50 kHz beamwidth: 45°
• 50 kHz depth performance: 353 m (1200 feet)
• 200 kHz beamwidth: 12°
• 200 kHz depth performance: 206 m (700 feet)
• Element tilt: 12°
• Hull deadrise range: 8–15°
• Housing material: Bronze
• Projection outside hull: 5 mm (3/16 inch)
• Cable length: 10 m (33 feet)
• Hole size: 60 mm (2-3/8 inches)
• Usable shaft length: 68.5 mm (2.70 inches)
• Connector: 9-pin Xsonic

Good to know

The bronze housing is suitable for fiberglass or wood hulls. Listed connector applications are Simrad 9-pin, Lowrance 9-pin and Navico 9-pin.
