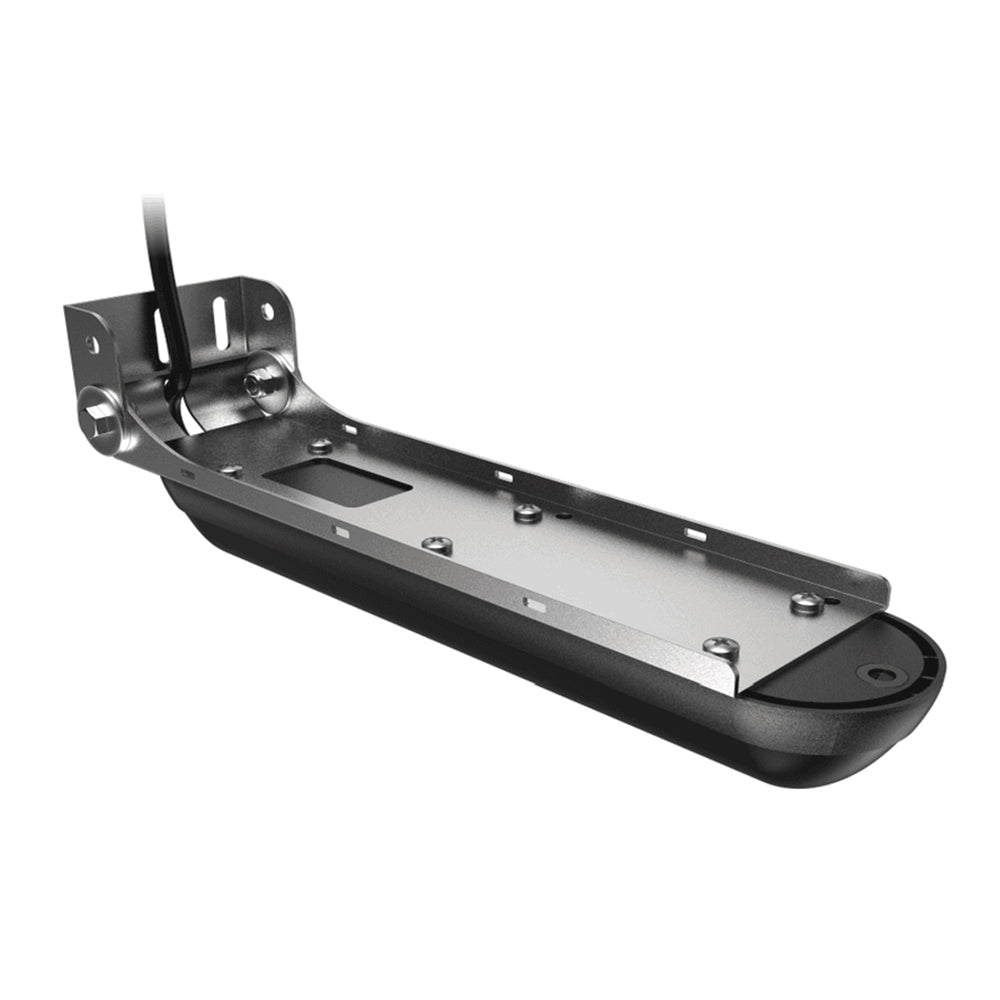

Navico Active Imaging 3-in-1 Transom Mount Transducer

The Navico Active Imaging 3-in-1 transom mount transducer combines CHIRP, SideScan, DownScan, FishReveal, and temperature output in one 9-pin transducer. It is intended for compatible Lowrance and Simrad displays where anglers want traditional sonar and structure imaging from a transom, flush step, or jackplate installation.

• Sonar outputs: Traditional, SideScan imaging, DownScan imaging, and temperature
• Sonar technologies: Lowrance CHIRP, SideScan, DownScan, and FishReveal Smart Target View
• CHIRP support: Medium and High CHIRP, 83/200kHz
• Imaging frequencies: 455/800kHz
• Compatible displays: Lowrance HDS LIVE, HDS Carbon, Elite Ti2, Simrad NSS evo3, and Simrad GO series
• Cable length: 7.6 m or 25 ft
• Connector: 9 pin
• Mounting options: Transom, flush step, and jackplate
• Operating temperature: -15°C to +55°C or +5°F to +131°F
• Storage temperature: -30°C to +70°C or -22°F to +158°F
• Maximum depth: Traditional 305 m or 1000 ft at 200 kHz High CHIRP and 83 kHz Medium CHIRP
• Maximum depth: DownScan 91 m or 300 ft
• SideScan range: 91 m or 300 ft side range at 455 kHz, 46 m or 150 ft
• Operating speed: Traditional 48 knots or 55 mph; DownScan and SideScan 9 knots or 10 mph
